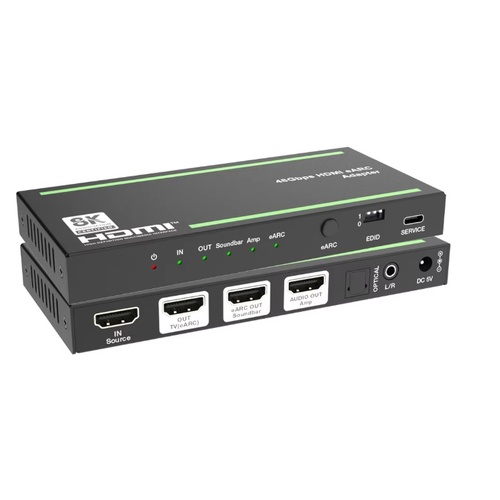

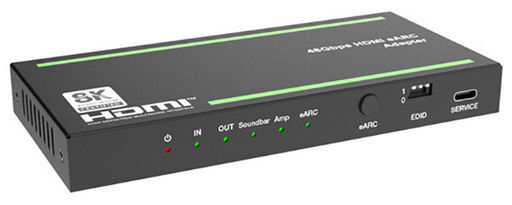

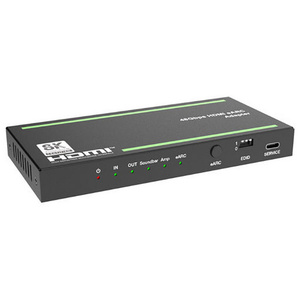

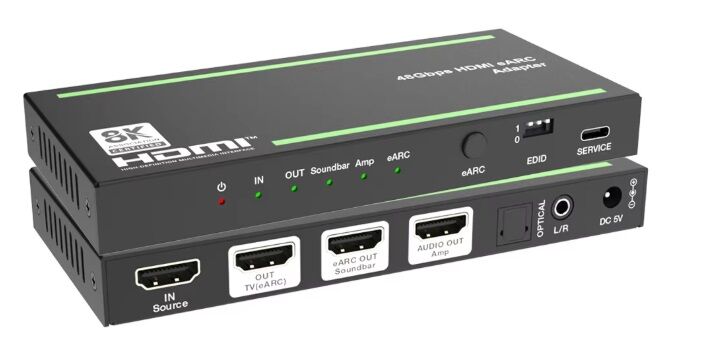

HDMI 2.1 eARC Audio Extractor

HDMI eARC Audio Adapter

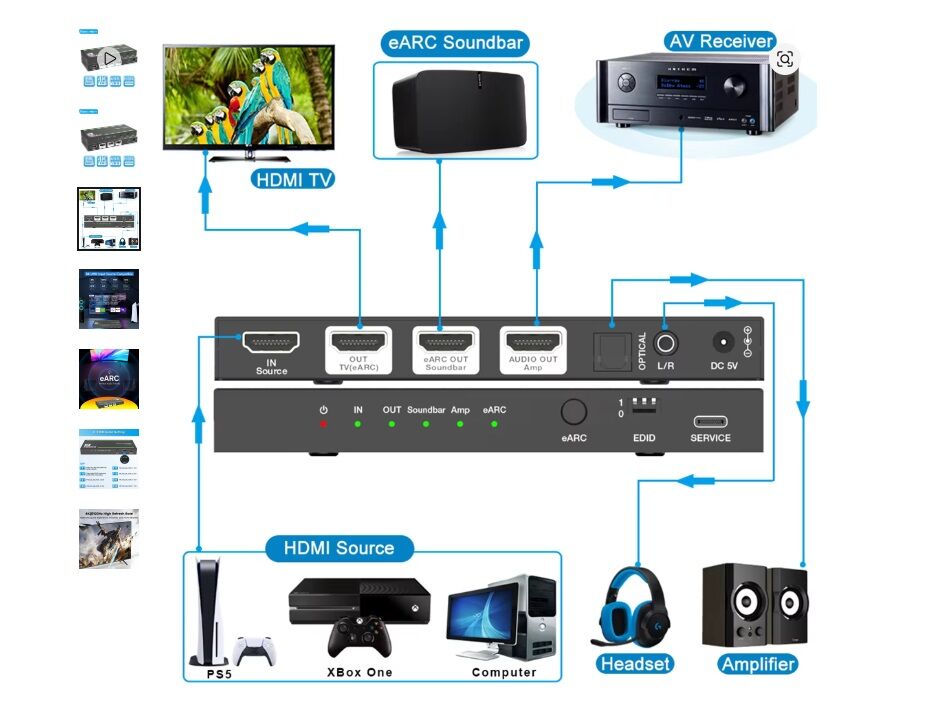

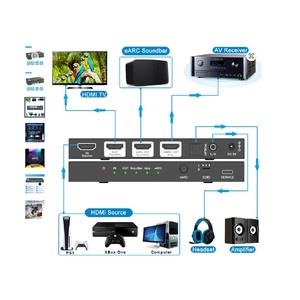

This 8K eARC Audio Adaptor de-embeds audio from an HDMI source or ARC/eARC-enabled TV and outputs the HDMI audio to digital S/PDIF, or analogue audio for connection to an AV receiver. It supports data rates up to 48Gbps and includes integration features such as EDID management and cable equalisation. The adaptor provides a simple solution for routing audio to a soundbar, amplifier, or 5.1/2.0-channel system, and also supports CEC control between the TV, source, and audio equipment.




• HDCP 2.3 compliant.
• Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit.
• Support VRR, ALLM, QMS, QFT, and SBTM.
• Support HDR, HDR10, HDR10+, and Dolby Vision pass-through.
• Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master,DTS:X Audio pass-through.

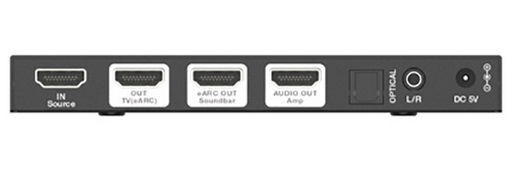

• HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R and HDMI audio to output.
• HDMI input source is de-embedded to any eARC/ARC soundbar to output.
• Support full Audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC& Beam or any eARC soundbar.
• Support CEC control from TV to the source.
• Support CEC volume control from TV to any eARC sound system.
• Advanced EDID management.
• Dimensions: 145x68x18mm.
