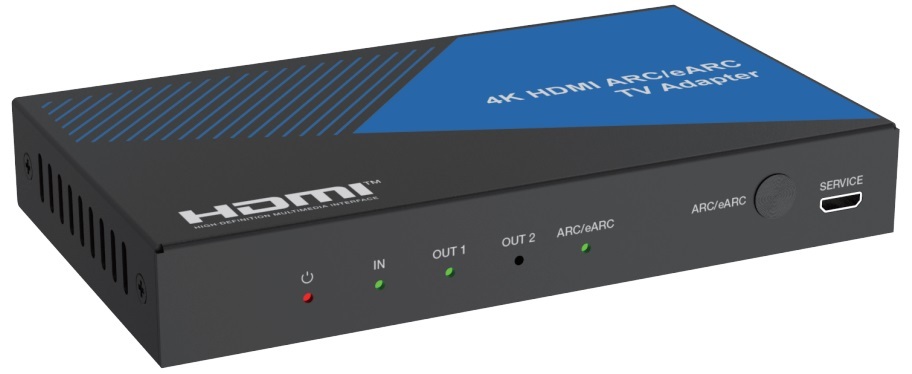

4K HDMI 2.0 ARC/eARC Audio Adapter

HDMI ARC or eARC Audio Adapter

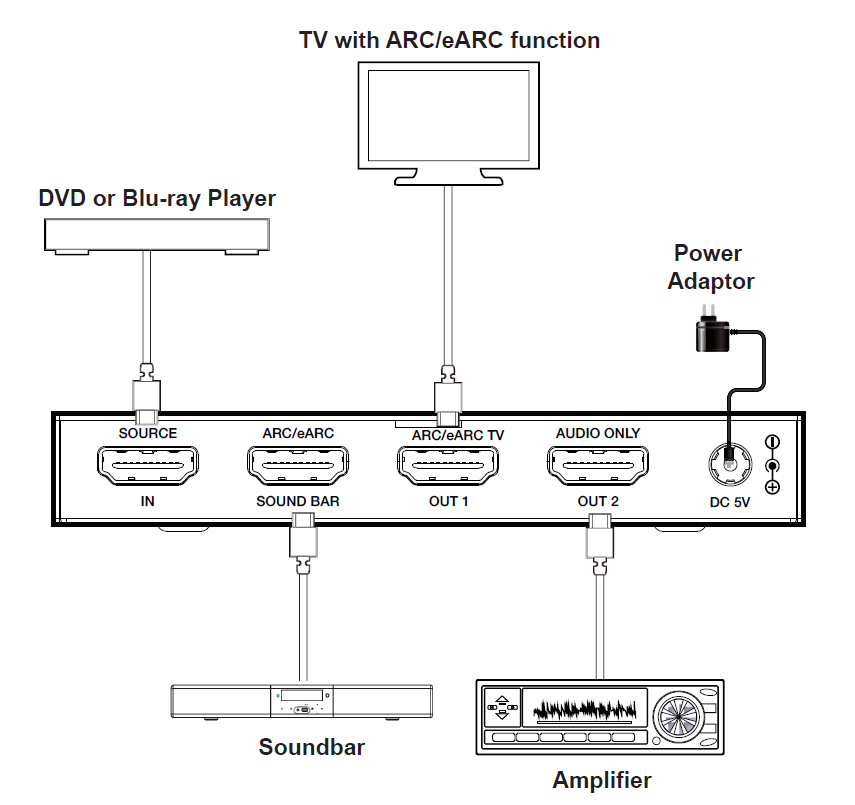

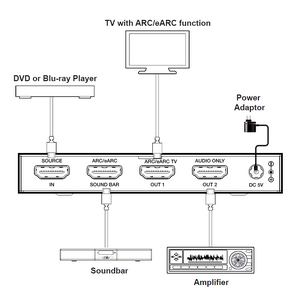

This 4K HDMI ARC/eARC Audio Adapter is capable to outputing Dolby Atmos audio from a HDMI source to an eARC/ARC soundbar or other Audio systems. Since compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers. It also provides a dedicated HDMI output port for outputing audio only when connecting with legacy AVR without eARC/ARC function

Features:

HDMI 2.0b and HDCP 2.3 compliant

Support 18Gbps video bandwidth

Support video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4

Support HDR, HDR10, HDR10+,Dolby Vision and HLG pass through

Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Perfect solution for SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers

Dedicated HDMI port for outputing audio only when connecting with legacy AVR without eARC/ARC function

Built-in Equalizer, Retiming and Driver ☆ Auto EDID management ☆ Compact design for easy and flexible installation



Contents:

① 1 × 4K HDMI ARC/eARC Audio Adapter

② 1 × 5V/1A Power Adaptor

③ 1 × User Manual

Specifications:



Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
Color Depth	8-bit,10-bit,12-bit
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

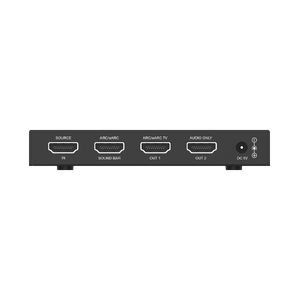

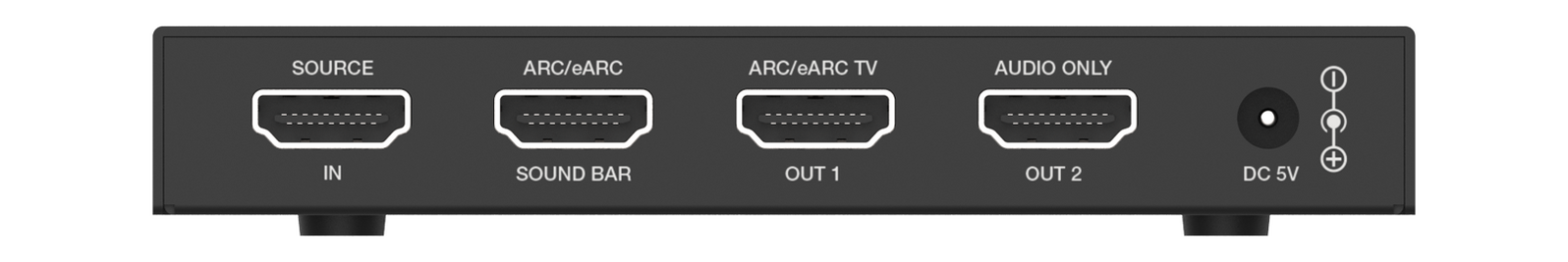

Connections
Input	1x HDMI IN [Type A, 19-pin female]
Output	1x HDMI SOUND BAR [Type A, 19-pin female] 2x HDMI OUT [Type A, 19-pin female]
Control	1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Silkscreen Color	Black
Dimensions	120mm (W) x 70mm (D) x 16mm (H)
Weight	210g
Power Supply	DC 5V/1A
Power Consumption	2.28W (Max)
Operation Temperature	32°F - 104°F / 0°C - 40°C
Storage temperature	-4°F - 140°F / -20°C - 60°C
Relative Humidity	20 - 90% RH (no condensation)
