4 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor

4 Way Switcher with HDMI/Optical/Stereo Audio Extractor

SKU: AA6310

RRP $269.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $122.55 ea
Buy 11 to 20: Pay $110.30 ea
Buy 21 to 100: Pay $99.26 ea

Calculate Shipping

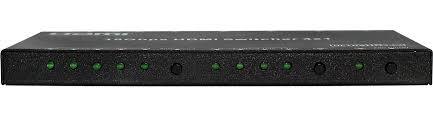

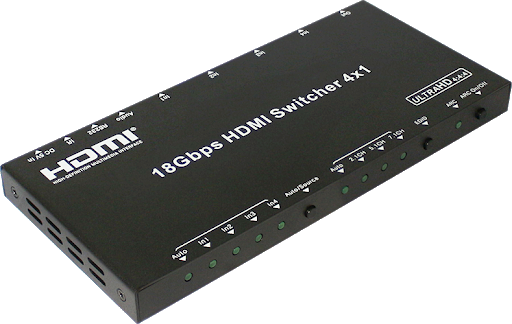

4 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor

Allows switching of 4 HDMI 2.0 inputs to an LCD display and Audio Receiver simultaneously

This is a high-performance HDMI switcher box with four HDMI 2.0 inputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of the two displays simultaneously, and supports 4K @ 60Hz and Dolby Atmos.

This HDMI Switch also has a built-in Audio splitter for connection to an amplifier, receiver or home theater set ups via 3.5 line level or 3.5 Toslink audio output.


• HDMI 2.0b, HDCP 2.2 compliant

• Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4

• 4x1 HDMI switch with EQ and Re-clocking

• Auto and manual switching mode

• Extracts HDMI audio to digital and L/R analog output

• Supports all HDMI audio formats pass-through

• HDR, Dolby Vision pass through

• Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)

• Audio Return Channel (ARC) supported

• Allows four HDMI sources to be routed to a HDMI display

• Supports auto switching or manual switching mode

• Simple plug-and-play for easy connection - no set up/drivers/software required

• Built-in TMDS equalization and CDR(Clock Rate Recovery) for long HDMI cable transmission

• Supports High Definition resolutions up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz

• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)

• Flexible control through on-panel buttons, IR remote control or RS-232

HDMI Compliance - HDMI 2.0a
HDCP Compliance - HDCP 2.2
Video Bandwidth - 18 Gbps
Video Resolutions - up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space - RGB YCbCr 4:4:4, YCbCr 4:2:2
Color Depth - 1 -bit, 12-bit
Audio Formats - PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection - Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Inputs - 4x HDMI Type A [19-pin female]
1x 3.5mm Stereo Mini-jack [RS-232]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]
Outputs - 1x HDMI Type A [19-pin female]
1x Stereo Audio Out with Toslink [3.5mm Stereo Mini-jack]
Mechanical - Housing nbsp;
Metal Enclosure Dimensions - 1 0mm [W] x 85mm [D] x 11.6mm [H]
Net Weight - 3 0g
Power Supply Input -  AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) - 2 5W
Operation Temperature - 3 - 104°F / 0 - 40°C

Storage temperature - - - 140°F / -20 - 60°C
Relative Humidity - 20 - 90% RH (no condensation)


12 Month Warranty

SKU AA6310
Barcode # 9351634025664
Brand Aus Electronics Direct
Shipping Weight 0.7400kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea
