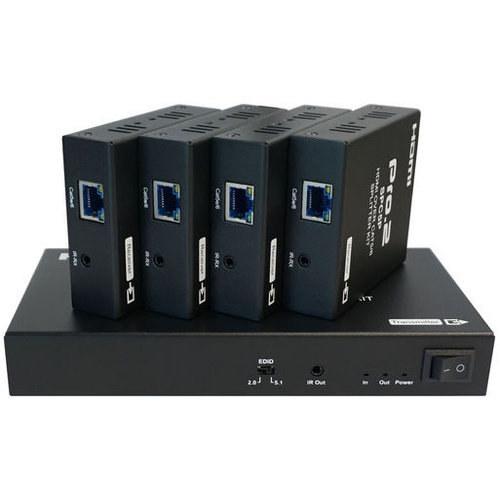

1080p HDMI 4 Way Splitter Extender via CAT6

4 Way HDMI CAT 6 Extender

1080p HDMI over CAT6 Splitter Extender Kit PtM, 1x Transmitter to 4x Receivers, Range up to 50M (1080p)

WITH HDMI LOOPOUT / PoC / ONE WAY IR

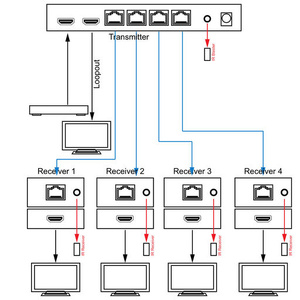

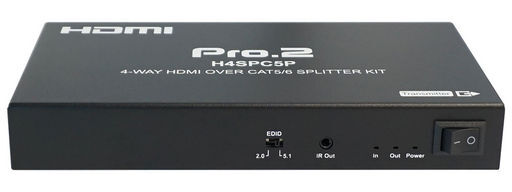

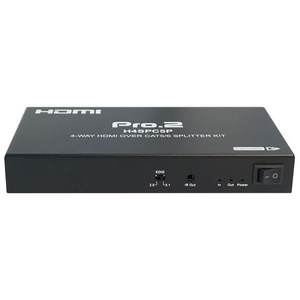

The 1x4 HDMI Splitter Extender kit includes one transmitter and four receivers, enabling a single HDMI source to be distributed to four displays with resolutions up to 1080p. HDMI signals can be extended up to 50 m at 1080p over a single CAT6 cable. The transmitter features a built-in HDMI loop output for local monitoring. The system also supports one-way IR pass-through, one-way PoC, advanced audio support with EDID control. It supports cascading up to 4 transmitter layers, enabling connection of up to 16 receivers for larger distribution setups.

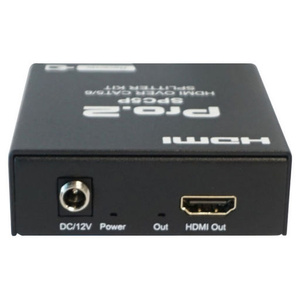

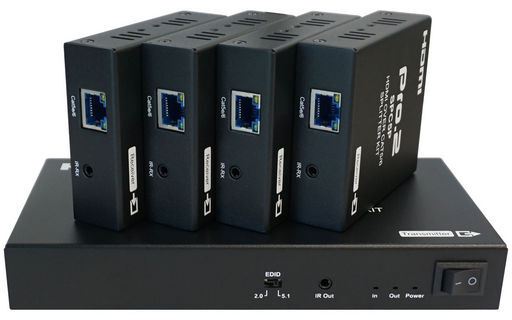

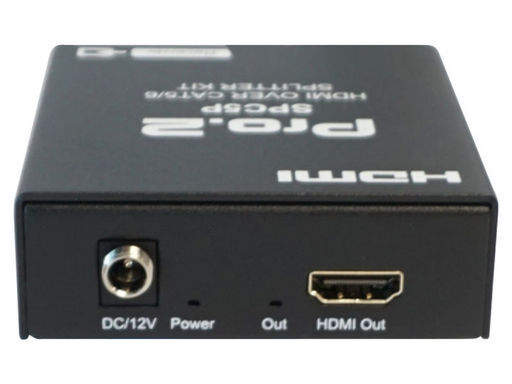

• Includes one HDMI transmitter and 4 receivers.
• HDMI 1.3 compliant.

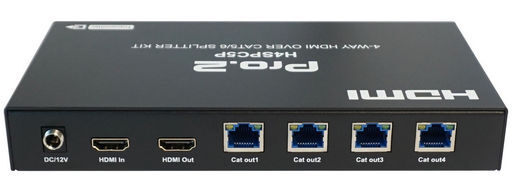

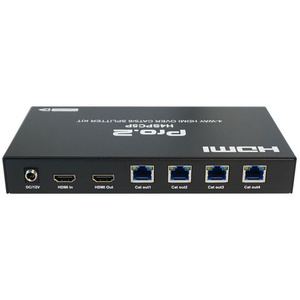

• HDMI local loop out on the transmitter.
• Support 6Gbps video bandwidth.
• Supports stereo and 5.1-channel audio.
• Transmission distance up to 50m (1080p) over a single Cat6 cable.
• Supports one-way IR control pass-through.
• Support one-way PoC function (only from transmitter to receiver).
• Includes power supply, IR blaster (1M) and 4x IR receiver (1M).
• Dimensions: 202x106x29mm (Tx), 86x75x26mm (Rx).
