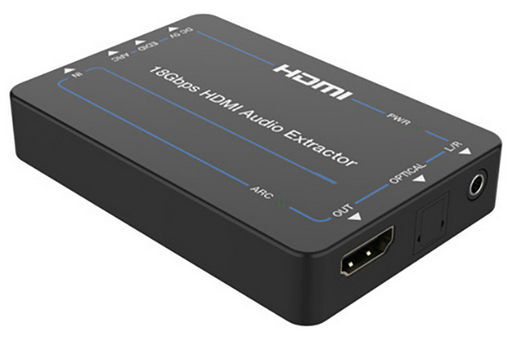

4K HDMI 2.0b ARC Audio Extractor

HDMI ARC Audio Adapter

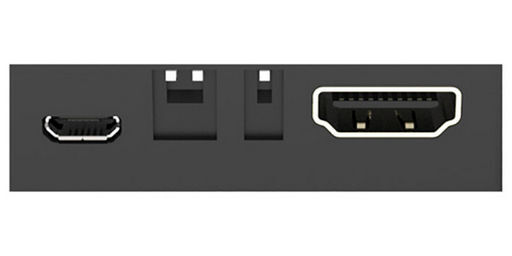

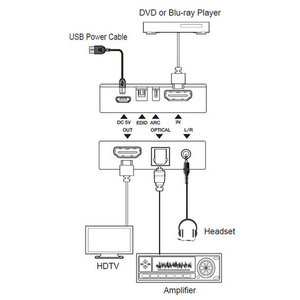

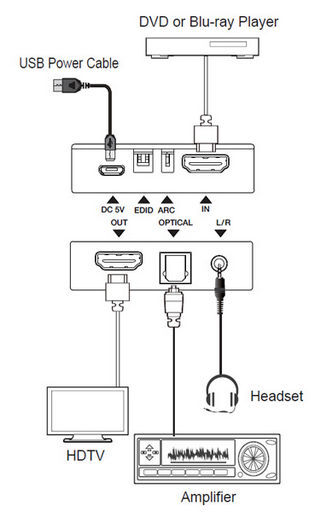

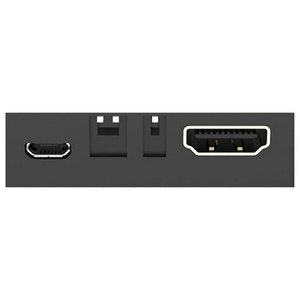

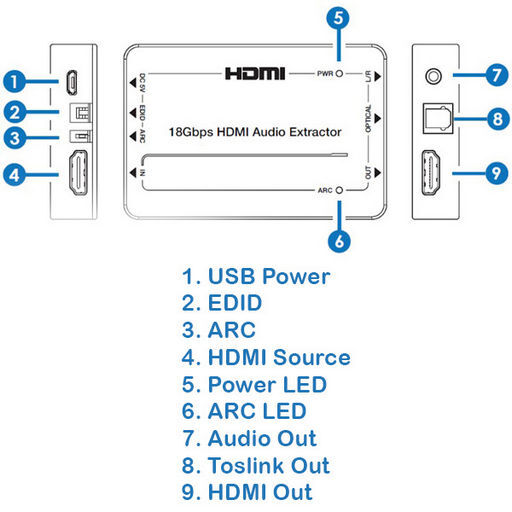

This HDMI Audio Extractor outputs audio from an HDMI source to A/V receivers via optical or L/R analogue ports. It also provides an HDMI output for ARC-compatible displays, sending TV audio back to an amplifier through the optical port when ARC is enabled. It supports 4K@60Hz video, offers smart EDID management, and allows you adjust EDID and ARC via front-panel DIP switches.




• HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant.
• Support 18Gbps video bandwidth.
• Video resolution up to 4K2K@60Hz (YUV 4:4:4).

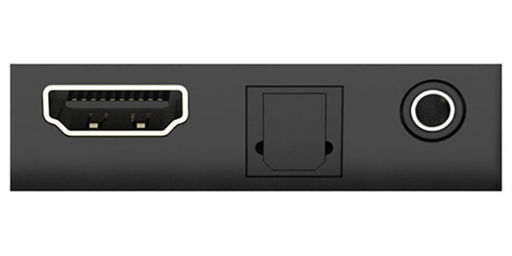

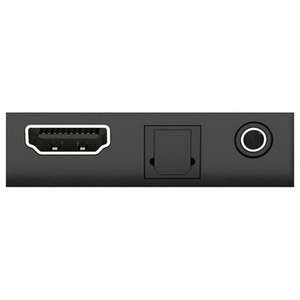

• Support extracting audio from HDMI source device to multichannel optical fiber (SPDIF) and L/R analog audio output.
• Support ARC function. when ARC is enabled, the audio will be returned to the A/V receiver via the optical port.
• Supported optical audio formats: LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH.
• Support HDMI high bit rate (HBR) audio pass through.
• Audio sampling rate up to 192KHz.
