12V DC 4A Power Supply Adapter with 2.1 DC plug

Switchmode Power adapter to power your electronic devices

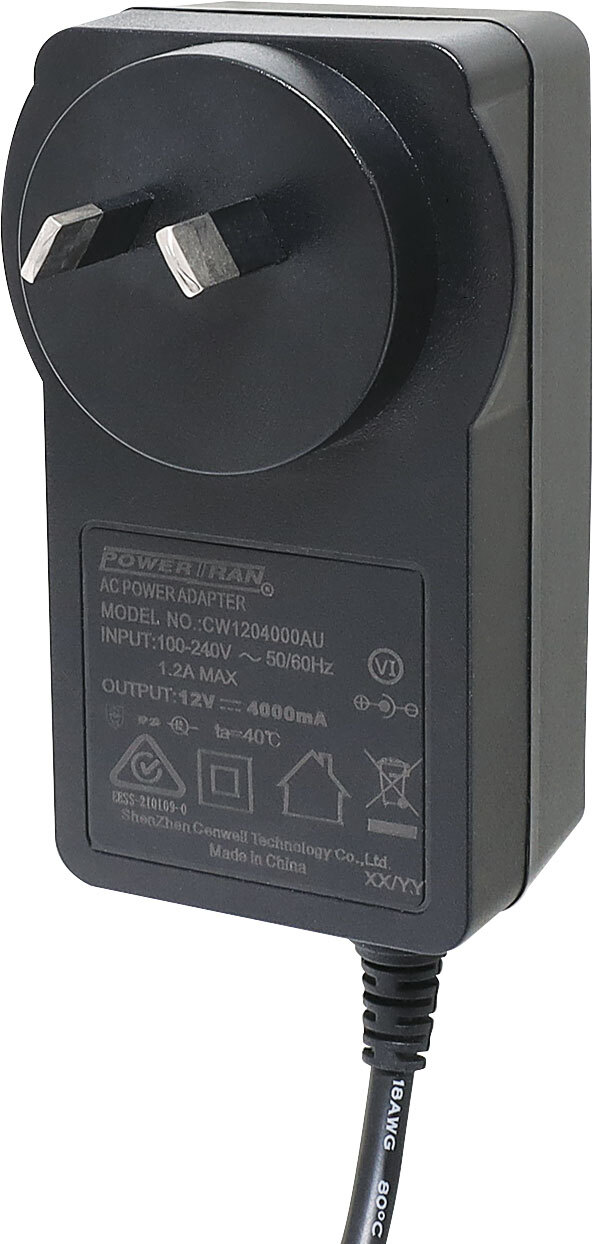

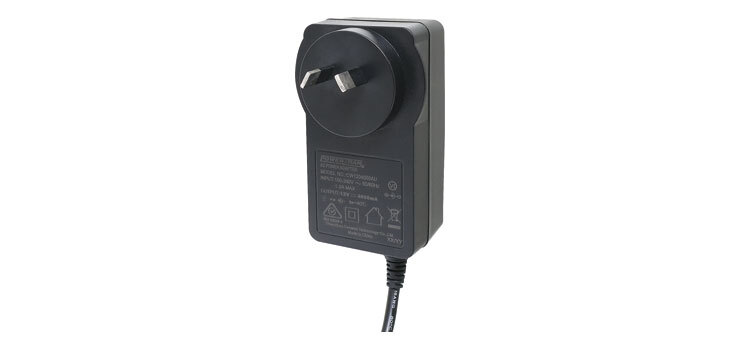

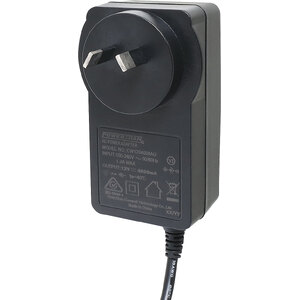

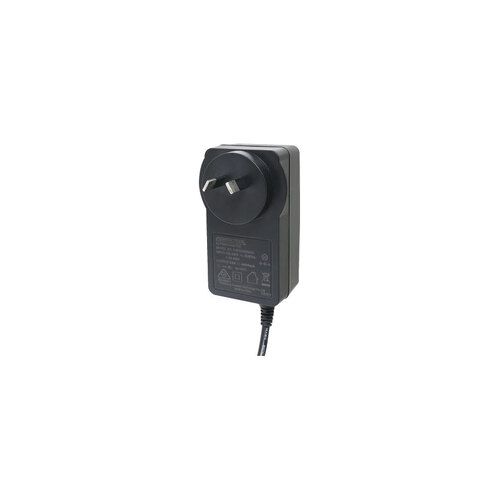

240V AC to 12VDC 4 Amp (4000mAh) Power adaptor / plug pack with a 1.5m cable terminated with a 2.1 DC plug  (2.1ID x 5.5OD x 10L). Compact design power supply with high current regulated output. Energy authority approved. MEPS approved. Dimensions: 40W x 61H x 44D mm

Suitable power supply for your electronic devices such as modems, clocks, printers, LED lights, security cameras, etc.

Switchmode or switching power adapter which supplies regulated voltage to your electronic device.

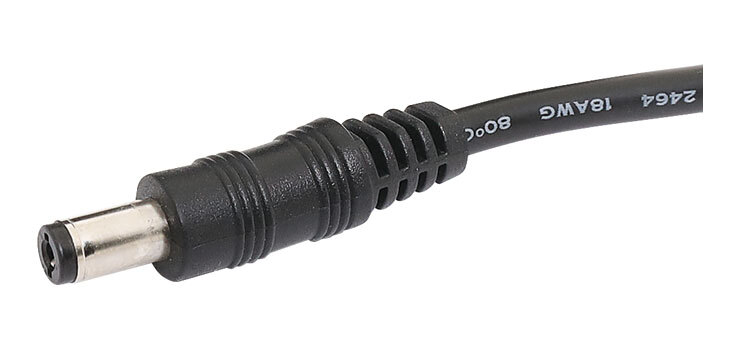

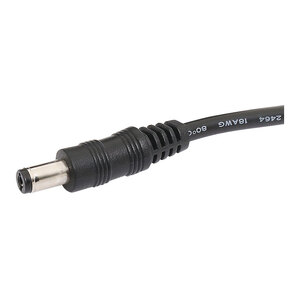

2.1mm DC Plug Centre Positive

Australian SAA safety approved.

Features

• Dimensions: 40W x 61H x 44D mm
• Input Range: 100V to 240V AC
• Output Voltage: 12V DC
• Barrel length: 10mm

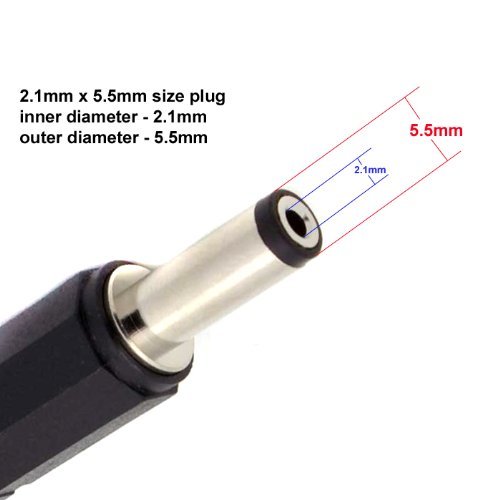

• Plug tip type: 5.5mm outer diameter and 2.1mm inside diameter
• Polarity: Positive centre
• Cable length: 1800±50mm
• MEPS efficiency level: VI
• Australian standards compliant
• Suitable for a range of electronic devices
• Compatible with Australian mains power point

Specifications

• Input
• Input Voltage Range: 90V AC to 264V AC
• Rated Voltage Range: 100V AC to 240V AC
• Input Frequency Range: 47Hz to 63Hz
• Rated Input Frequency: 50Hz/60Hz
• Input Current: 1.2A max at full load
• Inrush Current (cold start): 80A typical peak, 220V AC input
•
• Output
• Output Voltage: 12V DC
• Output Voltage Limit: 11.4V DC to 12.6V DC
• Output Ripple & Noise: ≤200
• Output Current: 4000mA
•
• General
• Operating Temperature: 0°C to 40°C, full load, normal operation.
• Storage Temperature: -40°C to +85°C.
• Relative Humidity: 5% (0°C) ~95% (40°C), 72 hours, full load, normal operation.
• Barrel Length: 10mm
• Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
• Polarity: Positive centre
• Cable Length: 1.2m
• MEPS Efficiency Level: V

  *Specifications are subject to change without notice.
