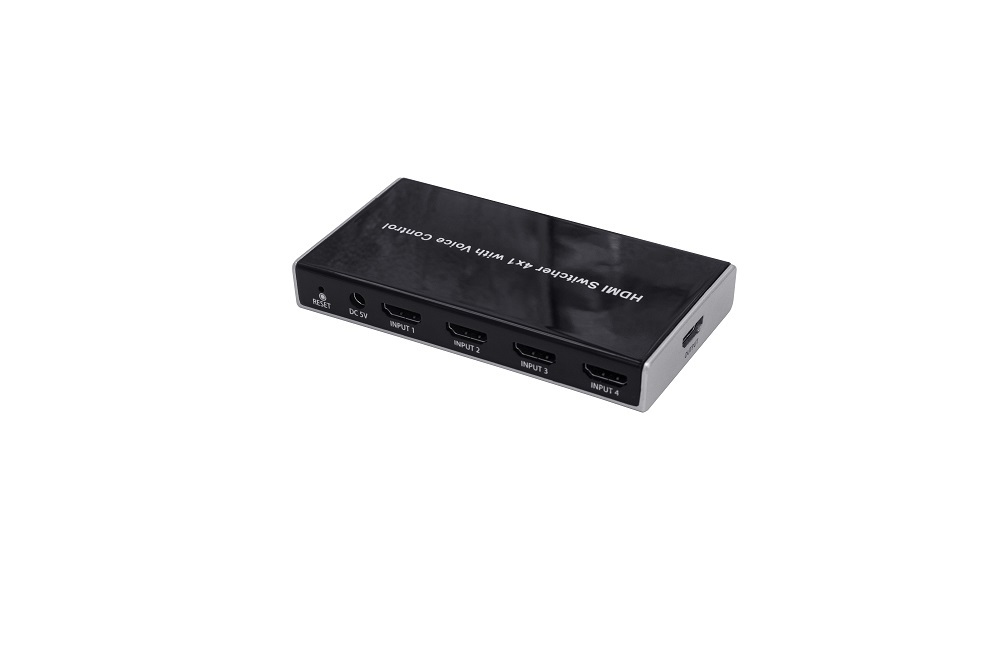

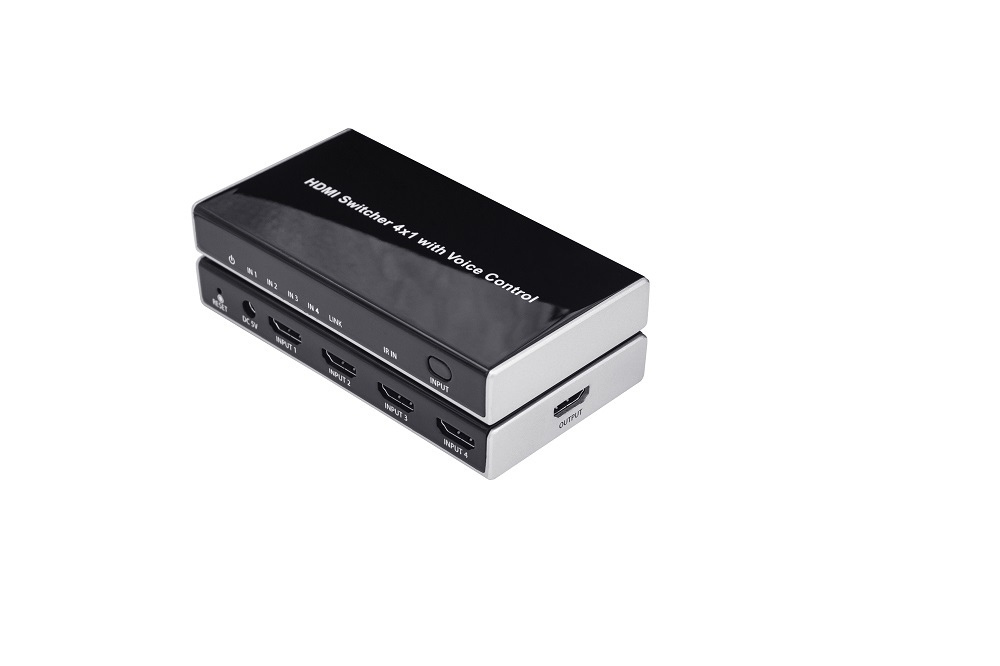

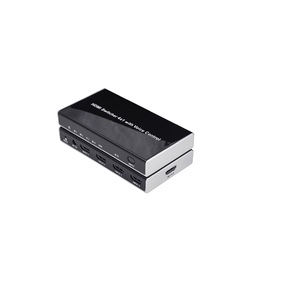

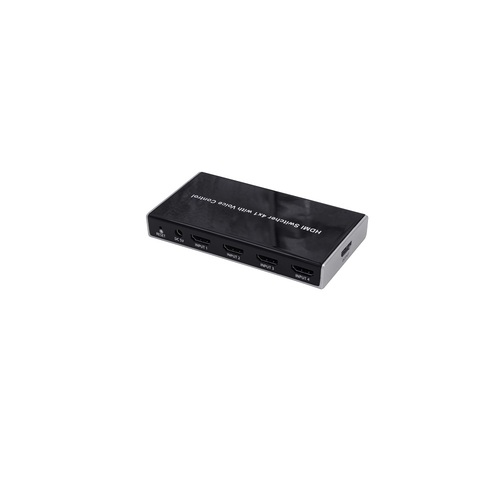

4 Port 4K HDMI Switcher with IR Remote Control

4 Input 1 Output HDMI Switch that supports 4K @ 60Hz

SKU: AA6308


$29.95
RRP $59.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $26.96 ea
Buy 11 to 20: Pay $24.26 ea
Buy 21 to 100: Pay $21.83 ea




Calculate Shipping

4 Port 4K HDMI Switcher with IR Remote Control

4 Input 1 Output HDMI Switch that supports 4K @ 60Hz

This is a high performance 4 HDMI input selector to 1 HDMI output switch box. This HDMI Switch supports HDCP repeater functions and fast switching between any of the HDMI ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives complete control over the selection of sources and makes the device incredibly user friendly.

Note: Does not feature Voice Control

Features:

• HDCP 2.2/1.x and DVI 1.0 compliant

• Support 18Gbps video bandwidth

• Supports 10 bits HDR pass through

• Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4

• Support 3D video format

• Low power consumption

• Support IR remote control and panel button control



Package:

  • HDMI 2.0 Switcher
  • 5V USB to DC Power Supply cable
  • Remote control
  • IR Receive Extend cable
  • Operation Manual
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 1 Gbps
Video Resolutions up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB   YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 1 -bit,   10-bit
HDMI Audio Formats
(Pass-through)
LPCM   2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD   Master Audio, DTS:X
ESD Protection  Human   body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs 4x HDMI Type A [19-pin female]
Outputs 1x HDMI Type A [19-pin female]
Mechanical
Housing nbsp; Plastic Enclosure
Color Gray
Dimensions
Weight 2 0g
Power Supply Input   AC100 - 240V 50/60Hz
Output DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption  1W   (Max)
Operation Temperature
32 - 104°F / 0 - 40°C
Storage temperature - - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)

Do I need a HDMI Switcher of a HDMI Splitter?

CLICK HERE TO SEE OTHER HDMI SWITCHERS IN OUR RANGE



3 Month Warranty

SKU AA6308
Barcode # 9351634026791
Brand Playvision
Shipping Weight 0.2100kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.130m
Shipping Cubic 0.001248000m3
Unit Of Measure ea
Assembled Length 0.150m
Assembled Height 0.020m
Assembled Width 0.100m
