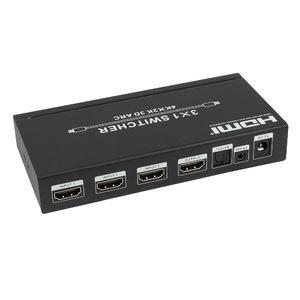

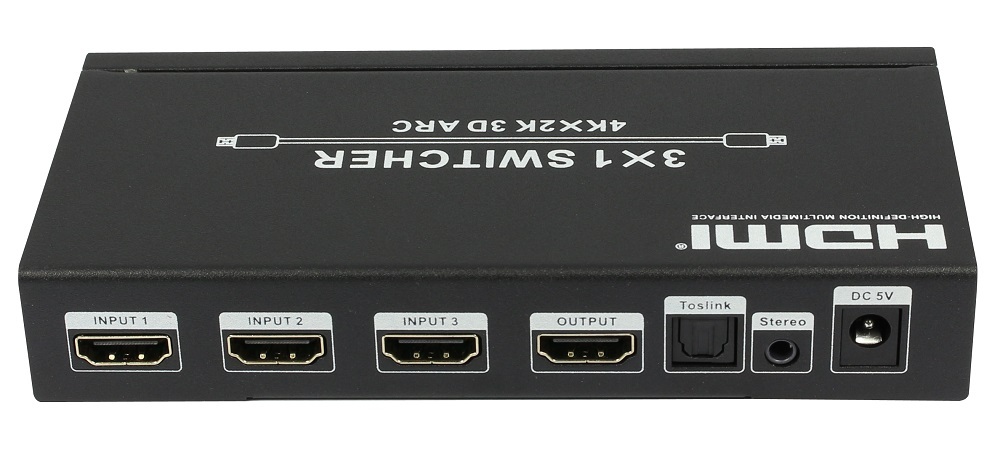

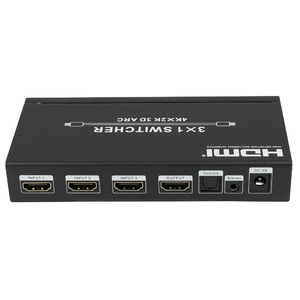

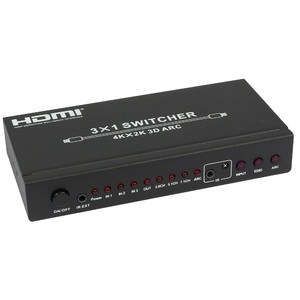

3 Input HDMI Switch with Audio Extractor & IR Extender

3 Port HDMI Switcher with ARC and EDID

SKU: AA6011


$24.95
RRP $59.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $22.46 ea
Buy 11 to 20: Pay $20.21 ea
Buy 21 to 100: Pay $18.19 ea




Calculate Shipping

3 Input HDMI Switch with Audio Extractor & IR Extender

3 Port HDMI Switcher with ARC and EDID

A high performance 3 HDMI input selector to 1 HDMI output switch box. This HDMI switch integrates an Audio Extractor via via line level stereo and digital toslink audio for connection to a wireless heaphone, amplified speaker or a receiver. It also has an infra-red extender for control of input devices.

It also features ARC and EDID selector functon. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives complete control over the selection of sources and makes the device incredibly user friendly.



Feature
Supports multiplexed HDMI 3/4-input and 1-output
The output port supporting Audio Return Channel (ARC)
HDMI v1.4 supports:- 4Kx2K@30Hz-Audio Return Channel (ARC)- -3D
Deep Color support 36/30/24-bit
Audio EDID select fuction.
Supports CEC bypass on HDMI out
Support digital audio format ,DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
Super wideband IR control system, IR transport channel can be forward or backward.

III. Package Contents
HDMI Swithcer                       1pcs
5V/1A DC power adaptor        1pcs
Remote Control                      1pcs
Operation Manual                   1pcs
38KHz IR Receiver                 1pcs
HDMI IR adaptor(option)        1pcs
Wideband IR Tx/Rx(option)    1pcs


IV. Specification
Video Bandwidth    300MHz/10.2 Gbps
Input Ports          3/4 × HDMI (Female type)
Output Ports          1 × HDMI (Female type)
Output Resolution    480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA
HDMI Cable In    1080p/12bits (15m)
HDMI Cable Out    1080p/12bits (15m)
ESD Protection    Human Body model:    ±8 kV (air-gap discharge)
                                ±4 kV (contact discharge)
Power Supply     5 V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions          70 mm (W) × 145 mm (D) × 25 mm (H)  (3 by 1 switcher)
                  82 mm (W) × 190 mm (D) × 26 mm (H)  (4 by 1 switcher)
Weight                350 g  (3 by 1 switcher)
                          430 g  (4 by 1 switcher)
Chassis Material            Metal
Silkscreen Color            Black
Operating Temperature      0 °C~40 °C/ 32 °F~104 °F
Storage Temperature           −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity           20~90 % RH (non-condensing)
Power Consumption           1.5 W





Do I need a HDMI Switcher of a HDMI Splitter?



CLICK HERE TO SEE OTHER HDMI SWITCHERS IN OUR RANGE

3 Month Warranty

SKU AA6011
Barcode # 9351634026609
Brand Playvision
Shipping Weight 0.2100kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.130m
Shipping Cubic 0.001248000m3
Unit Of Measure ea
Assembled Length 0.150m
Assembled Height 0.020m
Assembled Width 0.100m
