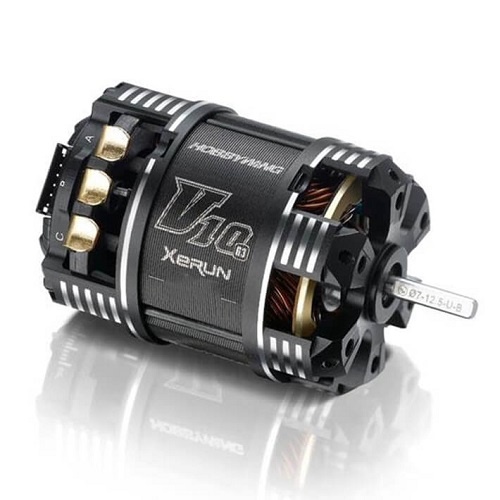

Xerun G3 V10 6T Brushless Motor

High-Performance Brushless Motor for Competitive Racing

The HobbyWing XeRun V10 G3 motor is engineered specifically for elite-level racing, offering superior performance, improved cooling, and enhanced durability.

---

Performance Upgrades Over V10 G2

• RPM: Significantly improved for better speed and responsiveness

• KV: Increased by 16%

• Torque: Improved by 4%

• Weight Reduction:

  • Stock Motor: 132g (21% lighter)

  • Modified Motor: 161g (11% lighter)

---

Precision Timing Adjustment

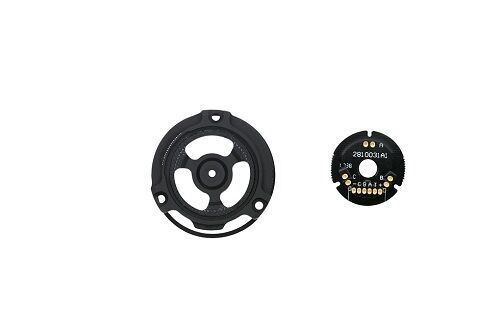

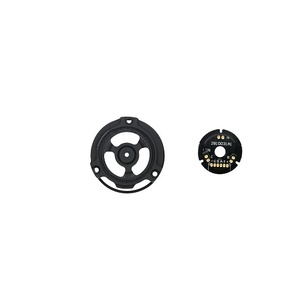

• Built-in high-precision Hall sensor

• Balanced rotor for exceptional linearity and throttle response

• Adjustable mechanical timing:

  • Stock motors (10.5T–25.5T): 30° to 60°

  • Modified motors (3.5T–8.5T): 20° to 50°

• Default timing:

  • Stock: 40°

  • Modified: 30°

• Clear timing marks on the rear endplate ensure repeatability and accuracy

---

Advanced Cooling & Maintenance-Friendly Design

• Special can design maximizes airflow around the stator core

• Machined endplates:

  • 10.5T–21.5T motors: Enhanced airflow for heat reduction

  • 5.5T–8.5T motors: Sealed to prevent dirt ingress, yet maintain cooling

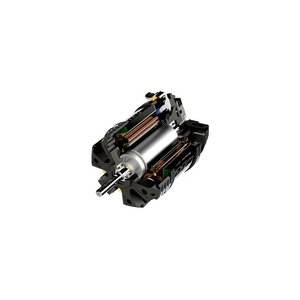

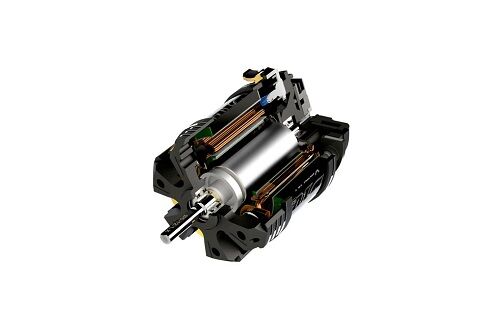

• Modular design for easy disassembly and part replacement

---

Durability You Can Trust

• High-performance stator core

• 200°C-rated heat-resistant wire

• 200°C-rated precision rotor

• High-precision, high-strength bearings

• Copper solder tabs for high-current capability and reliability

---

Tuning and Temperature Monitoring

• Increased timing = Higher RPM but more heat & less efficiency

• Ensure your ESC is properly programmed

• Match with a higher gear ratio (FDR) if increasing timing

• Monitor motor temperature using:

  • Infrared temperature gun

  • HobbyWing LCD Programmer

  • HobbyWing WiFi Link App (via WiFi module)

If the motor gets too hot, allow it to cool. Then reduce timing or increase the FDR and test again.

---

Regulatory Compliance

The V10 G3 is fully compliant with major racing and safety standards:

• IFMAR, ROAR, EFRA, BRCA approved

• Certified by RoHS, CE, FCC

---

Key Features Summary

• High-precision Hall sensor

• Adjustable mechanical timing

• Lightweight and durable construction

• Rebuildable and easy to maintain

• Heat-resistant internal components (rated to 200°C)

• Optimized cooling and airflow

• Compliant with international racing bodies



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 5500
LiPo Cells: 2S LIPO
No-load Current(A): 4.5
Max. Power Output(W): 415
Amp at the Max. Power Out: 113

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 162 (5.71oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 320-50 Degrees(Adjustable)
Applications: Modified Class of 1/10^th 4WD Off-road Racing
