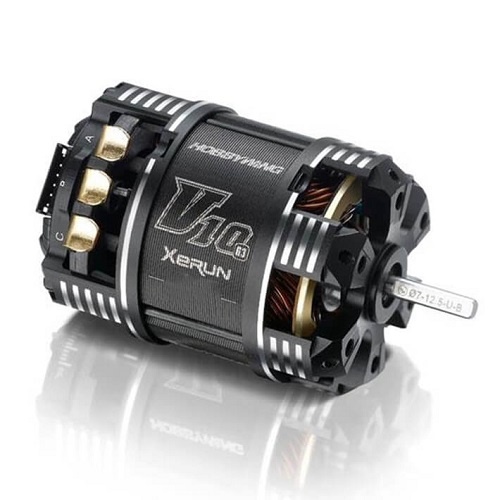

Xerun G3 V10 7.5T Brushless Motor

Designed for Elite-Level RC Racing

The XeRun V10 G3 series by Hobbywing is specifically engineered for high-level competitive racing, offering significant performance enhancements over the V10 G2 series. With upgraded KV, improved torque, and reduced weight, the G3 series delivers unmatched efficiency, precision, and reliability on the track.

---

Performance Highlights

• KV increased by 16%

• Torque improved by 4%

• RPM significantly enhanced for faster acceleration and higher top-end speed

• Weight Reduction:

  • Stock Motor: 132g (21% lighter than G2)

  • Modified Motor: 161g (11% lighter than G2)

These improvements deliver a more agile, responsive, and thermally efficient motor—ideal for serious competitors.

---

Precision Control with Adjustable Timing

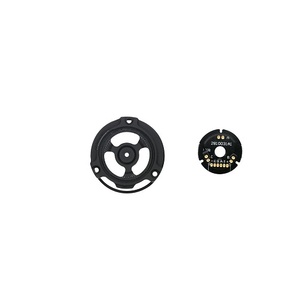

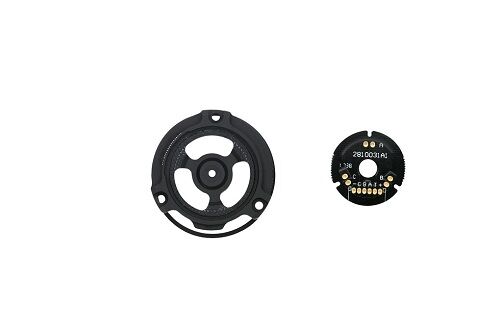

• High-Precision Hall Sensor
  Ensures smooth, linear throttle response and clean rotor position signals for maximum control.

• Balanced Rotor Design
  Enhances stability and minimizes vibration, even at high RPMs.

• Wide Mechanical Timing Adjustability:

  • Stock Motors (10.5T–25.5T): 30° to 60°

  • Modified Motors (3.5T–8.5T): 20° to 50°
    Timing marks on the rear endplate allow precise and consistent tuning for different track conditions.

---

Advanced Cooling & Serviceability

• Optimized Can Design
  Engineered to allow enhanced airflow around the stator core for improved cooling and higher efficiency.

• Machined End Plates

  • Stock (10.5T–21.5T): Extra machining helps dissipate heat.

  • Modified (5.5T–8.5T): Designed to block dirt and debris while maintaining cooling airflow.

• Modular, Rebuildable Construction
  Easy to disassemble for cleaning, maintenance, or part replacement—ensuring long-lasting performance and service life.

---

Built to Withstand Demanding Conditions

• High-Performance Stator Core

• 200°C Heat-Resistant Wire & Rotor

• High-Precision, High-Strength Bearings

• Gold-Plated Copper Solder Tabs

These premium components guarantee durability, thermal stability, and maximum power delivery, even under extreme race conditions.

---

Timing Adjustment Guidelines

The V10 G3 supports a wide range of mechanical timing adjustments, allowing you to fine-tune the power characteristics of your setup.

• Default Timing:

  • Stock Motors: 40°

  • Modified Motors: 30°

Increasing timing boosts RPM but also raises motor temperature and reduces efficiency.

Before Adjusting Timing:

• Ensure your ESC is properly programmed

• Higher timing typically requires a higher gear ratio (FDR)

• After adjustments, monitor temps using:

  • Infrared temp gun

  • Hobbywing LCD programmer

  • Hobbywing WiFi Link App (via smartphone)

If temps are too high after a full battery run, allow the motor to cool, reduce the timing or adjust your FDR, and test again.

---

Race-Ready Compliance

Fully compliant with major international racing regulations:

• IFMAR

• ROAR

• EFRA

• BRCA

Also certified under RoHS, CE, and FCC standards for safety and quality assurance.

---

Key Features Summary

16% Higher KV & 4% More Torque than G2
Lightweight Design (as low as 132g)
Wide Timing Adjustment (Stock: 30°–60°, Mod: 20°–50°)
High-Precision Hall Sensor & Balanced Rotor
Optimized Cooling & Debris Resistance
Modular, Rebuildable Design
200°C Heat-Resistant Internal Components
Global Racing Rule Compliance

---

Engineered to Win

Whether you're competing in Stock or Modified classes, the Hobbywing XeRun V10 G3 delivers the power, durability, and adjustability you need to stay ahead of the pack. It's more than just an upgrade—it's a race-winning advantage.



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 4420
LiPo Cells: 2S LIPO
No-load Current(A): 3.3
Max. Power Output(W): 346
Amp at the Max. Power Out: 100

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 161(5.68oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 20-50 Degrees(Adjustable)
Applications: 1/10^th Drift, 2WD Off-road Racing
