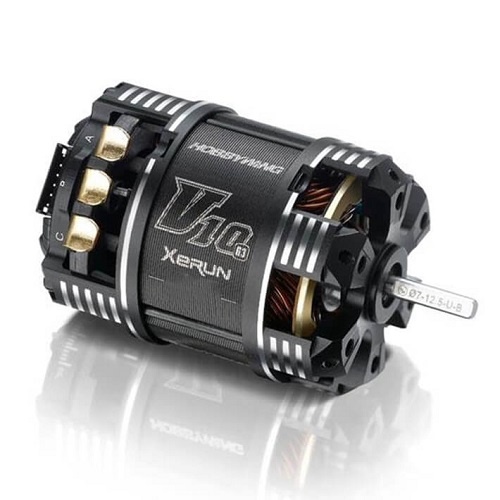

Xerun G3 V10 5.5T Brushless Motor

Engineered for Elite-Level RC Racing

The Hobbywing XeRun V10 G3 series motors are purpose-built for high-level competitive racing, offering major improvements over the previous G2 generation. Whether you're competing at the national or international level, the V10 G3 gives you the power, precision, and efficiency you need to win.

---

G3 Performance Upgrades (Compared to V10 G2)

• +16% Increase in KV Output
  Improved speed and acceleration for faster straight-line and corner-exit performance.

• +4% Increase in Torque
  Delivers more punch off the line and better throttle response in all conditions.

• Weight Reduction

  • Stock Motors (132g): 21% lighter than G2

  • Modified Motors (161g): 11% lighter than G2
    This weight savings improves balance, acceleration, and thermal management.

---

Precision Engineering for Total Control

• High-Precision Hall Sensor
  Delivers consistent and linear throttle response, with clean rotor position signals.

• Balanced Rotor
  Reduces vibration and improves stability during high-speed operation.

• Adjustable Mechanical Timing

  • Stock Motors (10.5T–25.5T): 30°–60°

  • Modified Motors (3.5T–8.5T): 20°–50°
    Timing marks on the rear endplate allow for accurate and repeatable adjustments.

---

Advanced Cooling & Durability

• Optimized Can Design
  Allows extra airflow around the stator core for better cooling and increased efficiency.

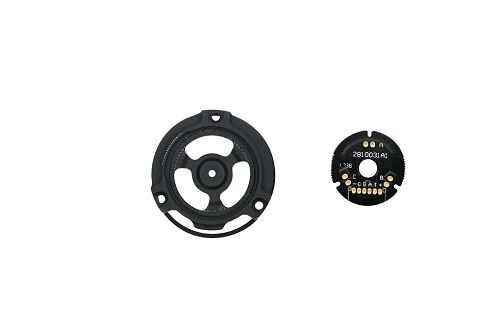

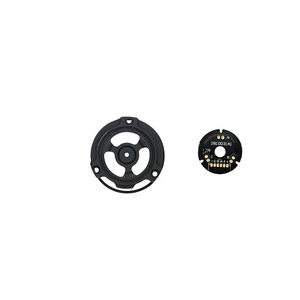

• Specially Machined End Plates

  • Stock Motors (10.5T–21.5T): Further machining improves heat dissipation.

  • Modified Motors (5.5T–8.5T): Machined to resist sand and debris while maintaining airflow.

• Rebuildable Construction
  Easy to disassemble for maintenance or parts replacement — extends motor life and race reliability.

---

Built to Withstand Intense Racing Conditions

• High-Performance Stator Core

• 200°C Heat-Resistant Wire and Rotor

• High-Strength Precision Bearings

• Gold-Plated Copper Solder Tabs
  All components are chosen for maximum durability, efficiency, and race-ready performance.

---

Timing & Setup Guidance

• Default Timing Settings

  • Stock: 40°

  • Modified: 30°

• Adjusting Timing
  Increasing timing boosts RPM but also raises temperatures and reduces efficiency. Before adjusting:

  • Ensure your ESC is properly programmed.

  • Higher timing usually requires a higher gear ratio (FDR).

  • Always monitor motor temps with:

    • Infrared temperature gun

    • Hobbywing LCD programmer

    • WiFi module with Hobbywing WiFi Link App

If temps exceed safe levels, let the motor cool, reduce timing, or adjust the gear ratio before running again.

---

Race Legal & Certified

The XeRun V10 G3 motors meet all major international racing standards:

• IFMAR

• ROAR

• EFRA

• BRCA

Also certified for safety and compliance with RoHS, CE, and FCC.

---

Key Features Summary

High-Precision Hall Sensor
Rebuildable Design for Easy Maintenance
Lightweight Can with Enhanced Cooling
High-Efficiency Stator & Rotor (200°C rated)
Wide Adjustable Timing Ranges
Certified for Global Racing Use
Outstanding Linearity and Throttle Response
Race-Proven Materials and Engineering

---

Take Your Racing to the Next Level

Whether you're racing Stock or Modified classes, on-road or off-road, the Hobbywing XeRun V10 G3 motor is your ultimate competitive advantage. Designed to run cooler, accelerate faster, and perform more reliably — it's built to help you win.



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 5900
LiPo Cells: 2S LIPO
No-load Current(A): 5
Max. Power Output(W): 426
Amp at the Max. Power Out: 115

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)​​​​​​​
Shaft Diameter (mm): 3.17(0.125in)​​​​​​​
Shaft Length (mm): 13.3(0.52in)
Weight: 163(5.75oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 20-50 Degrees(Adjustable)​​​​​​​
Applications: Modified Class of 1/10^th 4WD Off-road Racing
