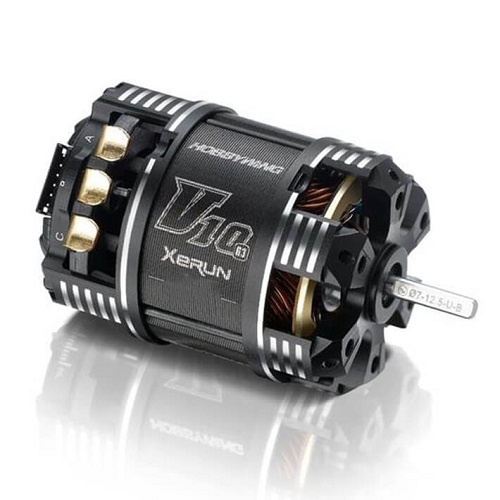

Xerun G3 V10 6.5T Brushless Motor

Purpose-Built for Elite-Level Racing

The Hobbywing XeRun V10 G3 motor is engineered specifically for high-level competition, offering significant performance gains over the previous V10 G2 generation. With improved torque, higher RPM, and reduced weight, the G3 sets a new benchmark for precision, power, and durability in both Stock and Modified classes.

---

Performance Upgrades Over G2 Series

• KV increased by 16%

• Torque improved by 4%

• RPM significantly enhanced, resulting in faster acceleration and higher top speeds

• Weight reduced

  • Stock Motors (132g): 21% lighter

  • Modified Motors (161g): 11% lighter
    Lighter weight improves balance, efficiency, and responsiveness.

---

Precision Control & Adjustable Timing

• High-Precision Hall Sensor
  Ensures ultra-smooth throttle response and accurate rotor position feedback for consistent performance.

• Precision-Balanced Rotor
  Provides exceptional linearity and minimizes vibration at high RPM.

• Wide Mechanical Timing Range

  • Stock Motors (10.5T–25.5T): Adjustable from 30° to 60°

  • Modified Motors (3.5T–8.5T): Adjustable from 20° to 50°
    Easily fine-tune motor output to match track conditions and gear ratios. Clear timing marks ensure accurate and repeatable setup.

---

Enhanced Cooling & Maintenance Design

• Optimized Motor Can for Airflow
  The redesigned can allows better airflow around the stator for improved cooling and efficiency.

• Specially Machined End Plates

  • Stock Motors (10.5T–21.5T): Feature additional machining to reduce heat buildup.

  • Modified Motors (5.5T–8.5T): Engineered to block debris like sand and dirt, while still promoting cooling airflow.

• Easy to Disassemble
  Modular, rebuildable design makes it simple to maintain, clean, or replace worn parts — ideal for long-term durability.

---

Built to Handle the Heat

• 200°C Heat-Resistant Wire & Rotor
  Stays reliable under high-stress racing conditions.

• High-Performance Stator Core
  Designed for optimal magnetic efficiency and low loss.

• High-Precision, High-Strength Bearings
  Delivers smoother operation and long service life.

• Copper Solder Tabs
  Gold-plated and low resistance for maximum current flow and easier soldering.

---

Timing Adjustment Guide

• Default Mechanical Timing:

  • Stock Motors: 40°

  • Modified Motors: 30°

• Important Setup Tips:

  • Increasing timing boosts RPM but also raises motor temps and lowers efficiency.

  • Always ensure your ESC is correctly programmed and your gear ratio is appropriate.

  • Monitor temperatures with an infrared thermometer, Hobbywing LCD programmer, or WiFi Link App.

If motor temperatures exceed safe limits after a full run, allow the motor to cool, reduce timing, or increase the Final Drive Ratio (FDR), then test again.

---

Official Racing Compliance & Certifications

• Approved by:

  • IFMAR

  • ROAR

  • EFRA

  • BRCA

• Certified to:

  • RoHS, CE, and FCC standards

---

Key Features Summary

16% Higher KV and 4% More Torque than G2
Wide Mechanical Timing Adjustment (20°–60°)
High-Precision Hall Sensor & Balanced Rotor
Modular, Rebuildable Design
Lightweight Aluminum Can (as low as 132g)
High-Temperature-Resistant Components (200°C rated)
Optimized Cooling and Debris Protection
Global Race Compliance (IFMAR/ROAR/EFRA/BRCA)

---

Dominate the Track with V10 G3

Whether you're racing Stock or Modified, on-road or off-road, the XeRun V10 G3 delivers the precision, performance, and reliability that serious racers demand. Lighter, faster, cooler, and tougher — this motor is built to win.



Specifications

Scale: 1/10^th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2

Relevant Parameters
KV Rating: 5120
LiPo Cells: 2S LIPO
No-load Current(A): 3.9
Max. Power Output(W): 402
Amp at the Max. Power Out: 113

Size & Weight
O.D (mm): 35.9(1.41in)
Length (mm): 51.2(2.01in)
Shaft Diameter (mm): 3.17(0.125in)
Shaft Length (mm): 13.3(0.52in)
Weight: 164(5.78oz)
Front Bearing: D9*D4*t4
Rear Bearing: D8*D3*t4

Other Parameters
Stock Rotor: 5-12.5
Timing: 20-50 Degrees(Adjustable)​​​​​​​
Applications: Modified Class of 1/10^th 4WD Off-road Racing
