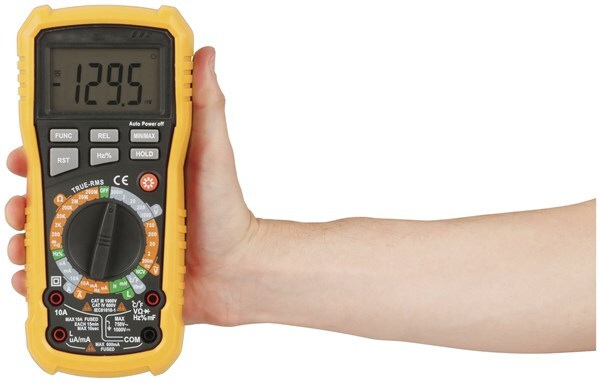

True RMS Inductance & Capacitance DMM

Inductance and Capacitance Digital Multimeter

SKU: TT4580

RRP $179.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $80.96 ea
Buy 11 to 20: Pay $72.86 ea
Buy 21 to 100: Pay $65.57 ea
Buy 101 to 500: Pay $59.01 ea

Calculate Shipping

True RMS Inductance & Capacitance DMM

Inductance and Capacitance Digital Multimeter

Powerful frequency measurement with high accuracy, as well as capacitance up to 100mF! It’s a serious choice for serious tasks. Moulded case and the added facility of non-contact voltage detection.



- Cat IV 600V rated!

- Backlit LCD

- Frequency

- Relative measurement

- Min / max

- Data hold

- Inductance

- Capacitance

- Display: 2000 count

- Measurement Categoray: Cat III 1000V / Cat IV 600V

- Basic VDC Accuracy: 0.5%

- AC Rectification: True RMS

- Special Features: Non-contact voltage, back light, data hold, diode test, auto power off


Capacitance Ranges : 10nF, 40nF, 400nF, 4µF
AC Current Ranges : 200µA, 200mA, 10A
DC Current Ranges : 200A, 200mA, 10A
Frequency Ranges : 10Hz, 100Hz, 100Hz, 10Hz, 10Hz, 1Hz
Inductance Ranges : 2mH, 20H
Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ
Outdoor / Exterior Scale : -20°C
Outdoor / Exterior Scale : -4°F, 1832°F
AC Voltage Ranges : 200mV, 2V, 20V, 750V
DC Voltage Ranges : 200V, 2V, 1000V, 200V
Length : 200mm
Width : 92mm
Depth : 60mm
Size / Shape : 9V
Packaged Volume : 2.67l
Packaged Weight : 0.55kg
Packaged Length : 26.2cm
Packaged Width : 16.2cm
Packaged Height : 6.3cm
Meter Input Impedence : 10MΩ


3 Month Warranty

SKU TT4580
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
Assembled Length 0.700m
Assembled Height 0.240m
Assembled Width 0.126m
