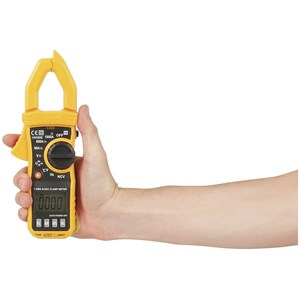

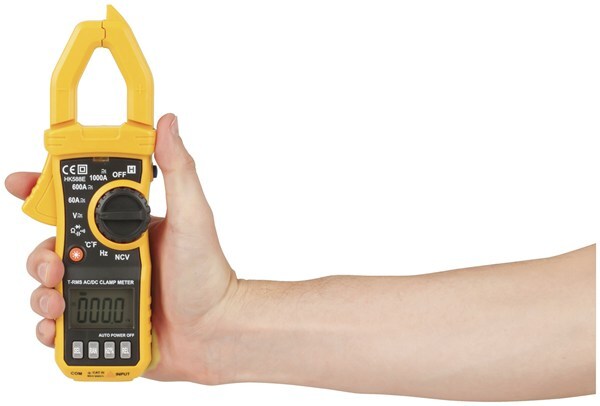

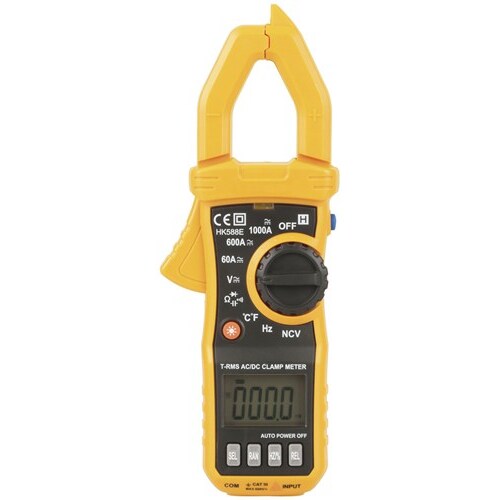

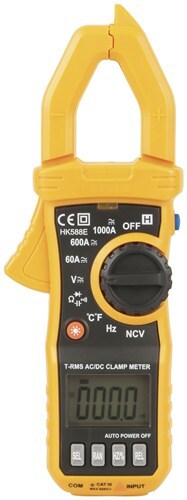

1000A True RMS AC/DC Digital Clamp Meter
Easily measure AC or DC Current and Voltage
SKU: TT4339
$159.00
RRP $239.00
In Stock
1000A True RMS AC/DC Digital Clamp Meter
Easily measure AC or DC Current and Voltage
Fantastic features at an an amazing price. Ultra-high current 1000A AC and DC current measurement. Carry case included.
Features:
- DC Current - 1000A
- AC Current - 1000A
- True RMS
- Non contact voltage testing
- Relative measurement
- Frequency measurement
- Capacitance
- Data hold
- Temperature
- Resistance
- Display: 6000 count
- Measurement Category: Cat III 600V
- Basic VDC Accuracy: 0.5%
- AC Rectification: True RMS
- Special Features: Non contact voltage, LINE test, data hold, backlight, relative measurement.
Specifications
| Capacitance Ranges : 10nF, 100nF, 1µF, 10µF, 100µF, 10mF, 100mF |
| AC Current Ranges : 60A, 600A, 1000A |
| DC Current Ranges : 60A, 600A, 1000A |
| Frequency Ranges : 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz |
| Resistance Ranges : 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ |
| Outdoor / Exterior Scale : -20°C, 1000°C |
| Outdoor / Exterior Scale : 0°F, 1800°F |
| AC Voltage Ranges : 600mV, 6V, 60V, 600V, 750V |
| DC Voltage Ranges : 600mV, 6V, 60V, 600V, 1000V |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 600V |
| Count Maximum Reading : 6000 count |
| Width : 72mm |
| Height : 194mm |
| Depth : 35mm |
| Size / Shape : AAA |
| Battery quantity : 3pc |
| Compartment location : Back |
| How is battery compartment kept closed : Screw |
| Packaged Volume : 1.59l |
| Packaged Weight : 0.49kg |
| Packaged Length : 23.5cm |
| Packaged Width : 15cm |
| Packaged Height : 4.5cm |
| Meter Input Impedence : 10MΩ |
3 Month Warranty
| SKU | TT4339 |
| Barcode # | 9351634064380 |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.5100kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.050m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.002000000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.700m |
| Assembled Height | 0.240m |
| Assembled Width | 0.126m |
