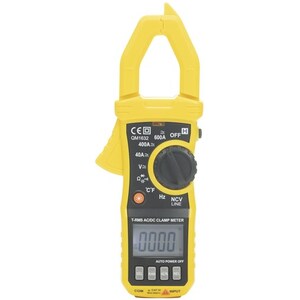

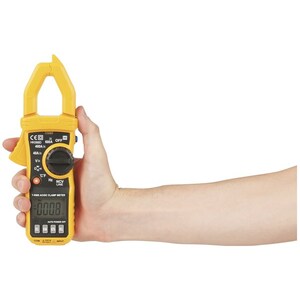

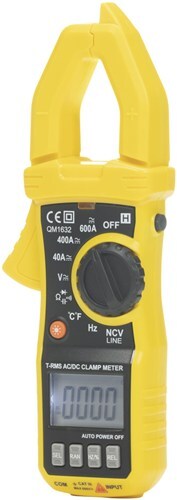

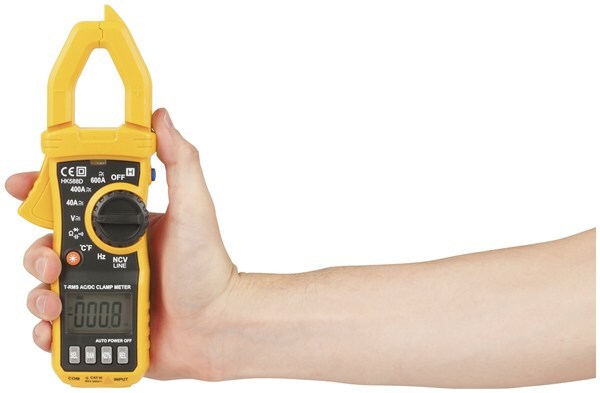

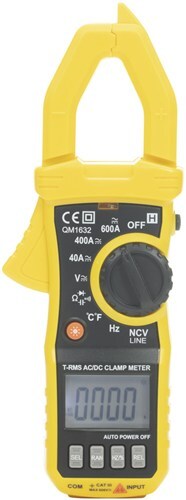

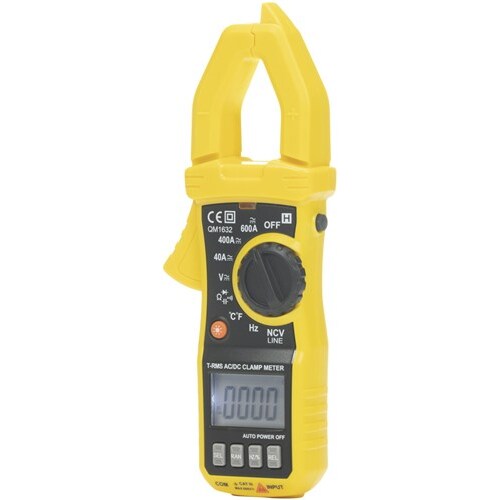

600A True RMS AC/DC Digital Clamp Meter

Easily measure AC or DC Current and Voltage

SKU: TT4338

RRP $239.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $113.95 ea
Buy 11 to 20: Pay $102.55 ea
Buy 21 to 100: Pay $92.30 ea

Calculate Shipping

600A True RMS AC/DC Digital Clamp Meter

Easily measure AC or DC Current and Voltage

ncludes DC current measurement with high accuracy, from a compact unit. This is a price breakthrough for a DC current capable clampmeter! Carry case included.



- True RMS

- Non contact voltage testing

- Relative measurement

- Frequency measurement

- Capacitance

- Data hold

- Temperature

- Resistance

- Display: 6000 count

- Measurement Category: 600V Cat III

- Basic VDC Accuracy: 0.5%

- AC Rectification: True RMS

- Special Features: Non contact voltage, LINE test, data hold, backlight, relative measurement.



Capacitance Ranges : 10nF, 100nF, 1µF, 10µF, 100µF, 1mF, 10µF, 100mF
AC Current Ranges : 40A, 400A, 600A
DC Current Ranges : 40A, 400A, 600A
Frequency Ranges : 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10Hz
Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40Ω
Outdoor / Exterior Scale : -20°C, 1000°C
Outdoor / Exterior Scale : 0°F, 1800°F
AC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V
DC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V
Data Hold : true
Display Type : LCD
Display Backlight : White LED Backlit
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600V
Count Maximum Reading : 4000 count
True RMS : true
Autorange : true
Measures duty cycle : true
Width : 72mm
Height : 194mm
Depth : 35mm
Weight : 230g
Size / Shape : AAA
Battery quantity : 3pc
Batteries included : true
Compartment location : Back
How is battery compartment kept closed : Screw
Packaged Volume : 1.8l
Packaged Weight : 0.49kg
Packaged Length : 23.5cm
Packaged Width : 15.6cm
Packaged Height : 4.9cm
Measurement Range Count : 4000 count
Meter Input Impedence : 10MΩ
Non-contact Voltage Indicator : true
Measures diode : true

3 Month Warranty

SKU TT4338
Barcode # 9351634064373
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
Assembled Length 0.700m
Assembled Height 0.240m
Assembled Width 0.126m
