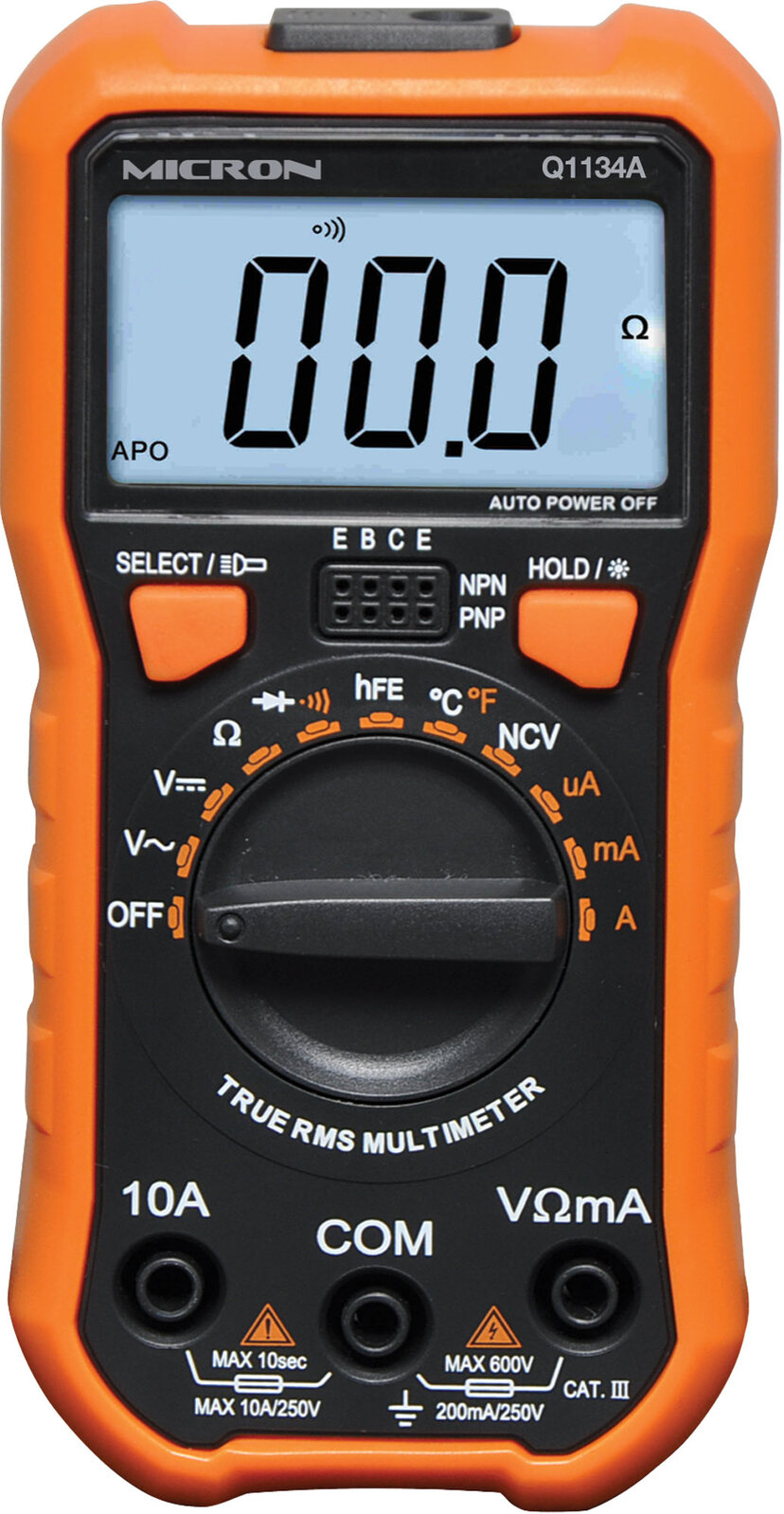

Autoranging True RMS Digital Multimeter

Simple and Easy to use multimeter

This Auto-ranging True RMS Digital Multimeter is an affordable, versatile meter designed for the electronics enthusiast or handyman. Auto-ranging design makes it easy to use single handed when testing - no need to switch ranges all the time! It includes a non-contact voltage detector for identification of live wires. Includes test leads, holster & temperature probe.


Features

• New type holster, streamlined design, comfortable handle
• Large LCD display makes reading clear
• Strong antimagnetic and anti‐ interferential performance
• Auto power off when there is no measurement in 15 minutes
• Full function protection
• Unit symbol display, easy to read
• True RMS, non‐ contact voltage detect (NCV) and data hold function
• Lighting function, backlight display.

Technical Data

• DCV: 200mV/2V/20V/200V/600V, ±(0.5%+4)
• ACV: 2V/20V/200V/600V, ±(0.8%+6)
• DCA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.0%+5)
• ACA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.5%+5)
• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(0.8%+1)
• Temperature: ‐40°C~1000°C, ±(1.0%+5)
• 0°F~1832°F, ±(1.0%+5)

Special function

• True RMS: Yes
• NCV: Yes
• Data hold: Yes
• Function protection: Yes
• Torch function: Yes
• Backlight display: Yes
• Diode test: 0V~2V, it displays “OL” if over 2V
• hFE test: 0~2000
• Continuity alarm: Less than 50Ω, it displays “OL” if over 200Ω
• Low battery indicator: Approx. less than 2.4 V
• Auto power off: About 15 minutes
• Input impedance: 10MΩ
• Sampling rate: 3 times/s
• AC frequency response: 40Hz‐2kHz
• Operation method: Auto range
• Max. display: 2000
• LCD size: 61x28mm
• Battery: 3V AAA×2
• Power consumption: Quiescent current about 2mA



General

• Colour: Orange and Grey
• Weight: 195g (including battery)
• Dimensions: 140×72×37mm
• Accessories: Test leads, battery, manual, TP01 temperature probe
