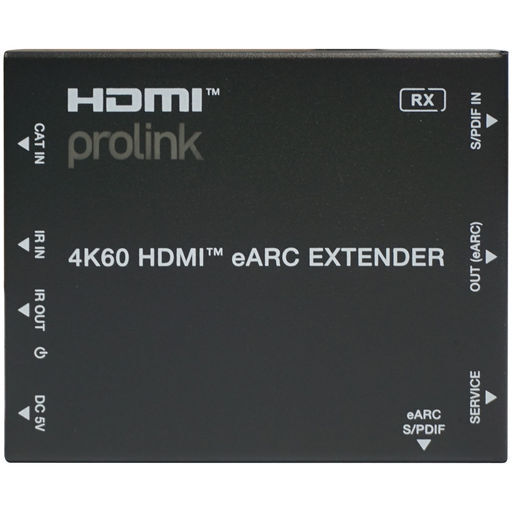

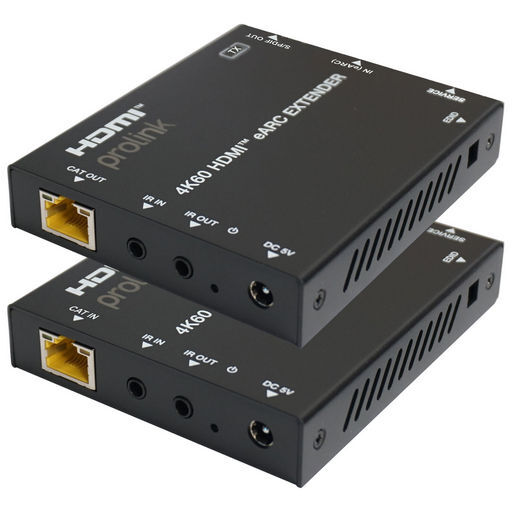

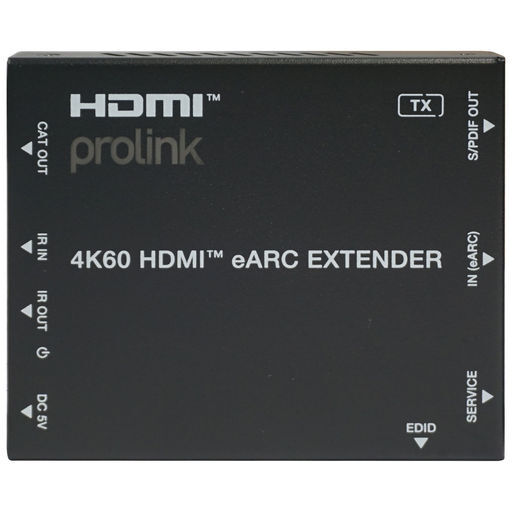

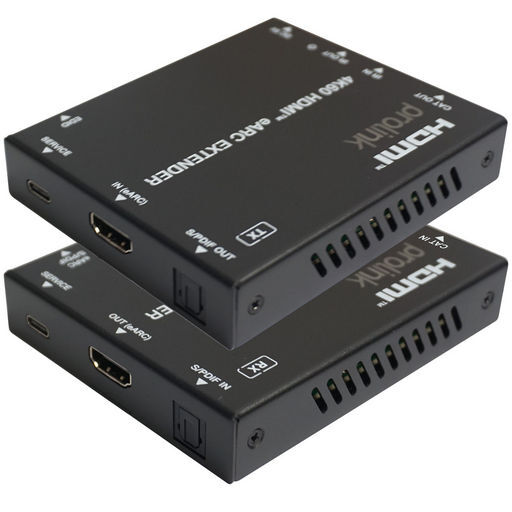

HDMI eARC Extender Transmitter & Receiver Over Ethernet

HDMI eARC Over CAT 6 Cable up to 50m

4K60 HDMI extender kit over CAT6 cable (50m). Supports HD Audio, HDMI passthrough (TX), HDMI eARC, ARC/SPDIF, EDID/CEC pass-through, and bi-directional IR pass-through.

WITH eARC / ARC / SPDIF / BI-DIRECTIONAL IR EXTENDER

The Prolink 4K60 HDMI Extender Kit features a transmitter and receiver and it delivers high-performance video transmission over a single CAT6 cable for up to 50m. With a full 18Gbps bandwidth, it reliably carries 4K @ 60Hz signals, ensuring crisp, ultra-high-definition visuals for home theatre, commercial displays, and professional AV installations.
This extender kit supports eARC and ARC/SPDIF audio transmission, enabling high-quality audio return from the display back to your AV receiver or sound system. It also supports CEC pass-through lets you control connected devices with one remote, and bi-directional IR pass-through enables control from either end of the setup.
Designed for stability and ease of integration, the Prolink 4K60 HDMI Extender Kit provides a robust solution for long-distance HDMI distribution with full audio-video feature support.




• HDMI 2.0b with HDCP 2.2 compliance.
• 18Gbps video up to 4K@60Hz YCbCr 4:4:4.
• Transmission distance up to 50M over CAT6 cable.
• Supports HDMI ARC and eARC return audio format.
• Supports SP/DIF audio return format (for TVs without eARC).
• Supports CEC pass-through and bi-directional IR pass-through.
• Supports LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio.
• Supports HDR, HDR10, HDR10+, and Dolby Vision.
• Advanced EDID management.
• Dimension: 97x82x18mm (TX), 97x82x18mm (RX).
• Includes 2x power supplies, IR blaster (1.5M), IR receiver (1.5M).
