HDMI eARC Audio Extractor

HDMI eARC Audio Adapter

The 18Gbps HDMI eARC audio extractor supports eARC function, which can extract eARC audio from an eARC TV and output it to an audio receiver, amplifier or soundbar without eARC functionality through HDMI port. A great solution that allows extraction of high quality audio to legacy receivers, amps and speakers.



☆ HDMI 2.0b and HDCP 2.3 / 1.x compliant

☆ Support 18Gbps video bandwidth

☆ Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4

☆ Support VESA format up to QSXGA@60Hz

☆ HDR, HDR10, HDR10+, Dolby Vision pass-through

☆ Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

☆ Built-in Equalizer, Retiming and Driver

☆ Dedicated HDMI output for audio only with 720p black screen

☆ Support eARC/ARC audio (from TV) extract to HDMI audio output

☆ Support CEC function and advanced EDID management

Specifications:

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3 / 1.x
Video Bandwidth	18 Gbps
Video Resolution	Up to 4k2k@60Hz 4:4:4
Color Depth	8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
HDMI Audio Formats	PCM 2.0, LPCM 5.1 / 7.1,Dolby Digital, Dolby Digital plus,Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA,DTS HD Master, DTS:X
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections

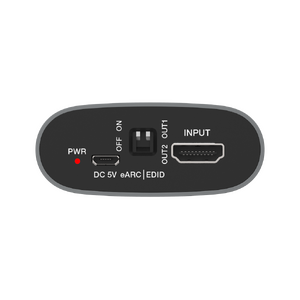

Input	1x HDMI Type A [19-pin female]

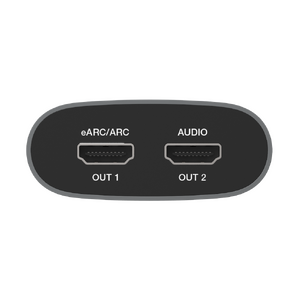

Output	2x HDMI Type A [19-pin female]
Mechanical
Housing	Aluminium Enclosure
Color	Silver
Dimensions	65mm[W] x 70mm[D] x 27mm[H]
Weight	83g
Power Supply	USB 5V / 500mA
Power Consumption	1.75W (Max)
Operation Temperature	32°F - 104°F / 0°C - 40°C
Storage temperature	-4°F - 140°F / -20°C - 60°C
Relative Humidity	20 - 90% RH (no condensation)
