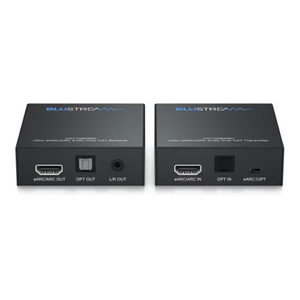

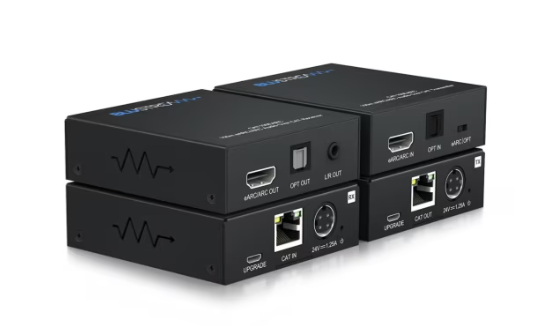

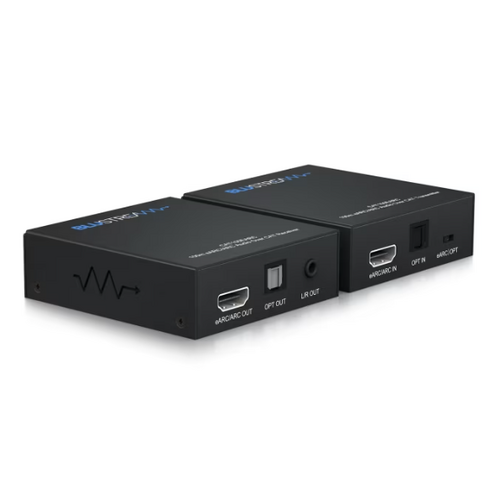

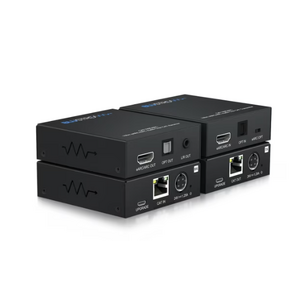

HDMI 2.1 eARC/ARC Transmitter & Receiver Over Ethernet

HDMI eARC/ARC Over CAT Cable up to 200m

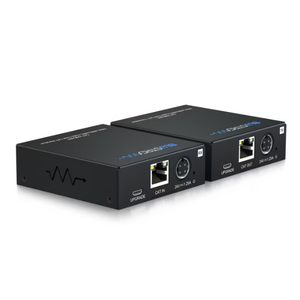

CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).

This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

Features:

 Extend either eARC/ARC or optical digital audio signals over a single CAT cable*
• CAT100EARC supports eARC/ARC distribution distances of up to 100m
• CAT100EARC supports Optical audio distribution distances of up to 200m
• Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*
• Supports CEC pass-through when HDMI eARC/ARC mode selected
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

*Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX

Specifications:

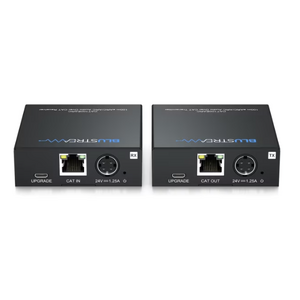

CAT100EARC-TX:

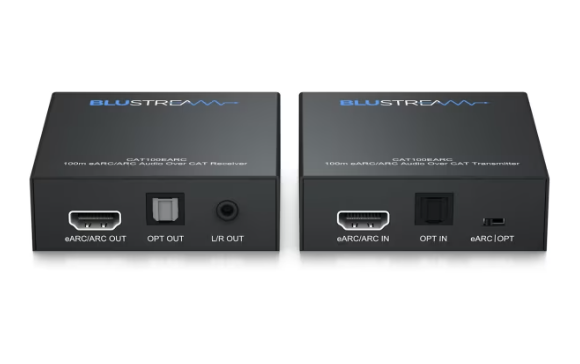

• Audio Input Connectors: 1x Optical (S/PDIF) & 1x HDMI Type A
• Output Connectors: 1x RJ45
• Firmware Upgrade: 1x Micro-USB
• Dimensions (W x H x D): 74mm x 80mm x 24mm

CAT100EARC-RX

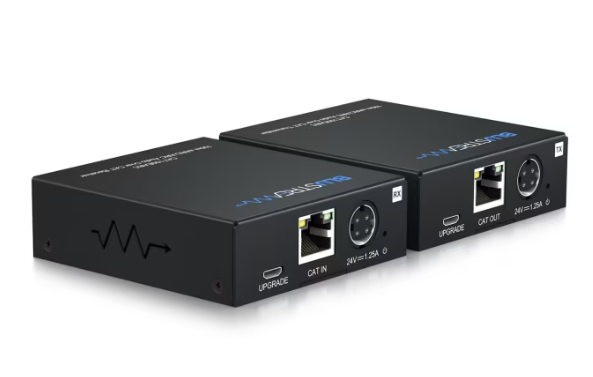

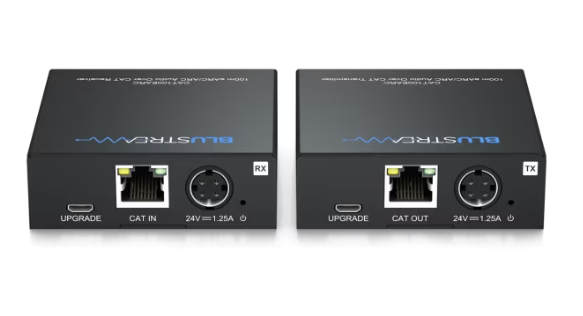

• Input Connectors: 1x RJ45 & 5V/1A DC

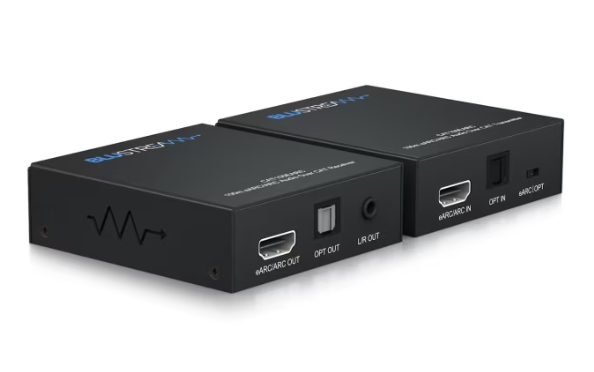

• Output Connectors: 1x Optical (S/PDIF), 1x HDMI Type A & 1x Analogue audio L/R (3.5mm stereo Jack)
• Firmware Upgrade: 1x Micro-USB
• Dimensions (W x H x D): 74mm x 80mm x 24mm

• Shipping Weight: 0.7kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
• Power Supply: 24V/1.25A DC
