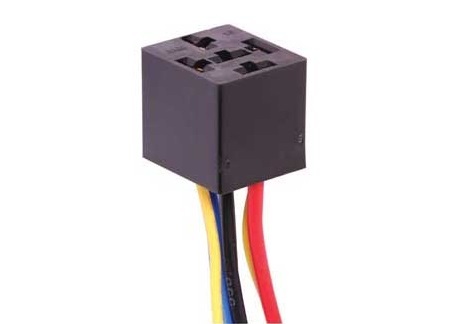

Automotive Relay Cradle

Cradle designed for use with automotive relays

Cradle designed for use with automotive relays fitted with female spade connectors. Will also suit other brands of SPST and SPDT automotive relays. Fitted with 180mm flylead. Maximum temperature 85°C.

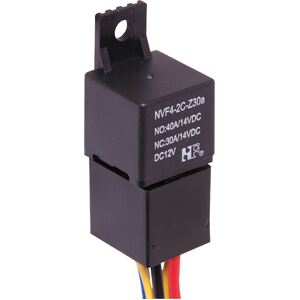

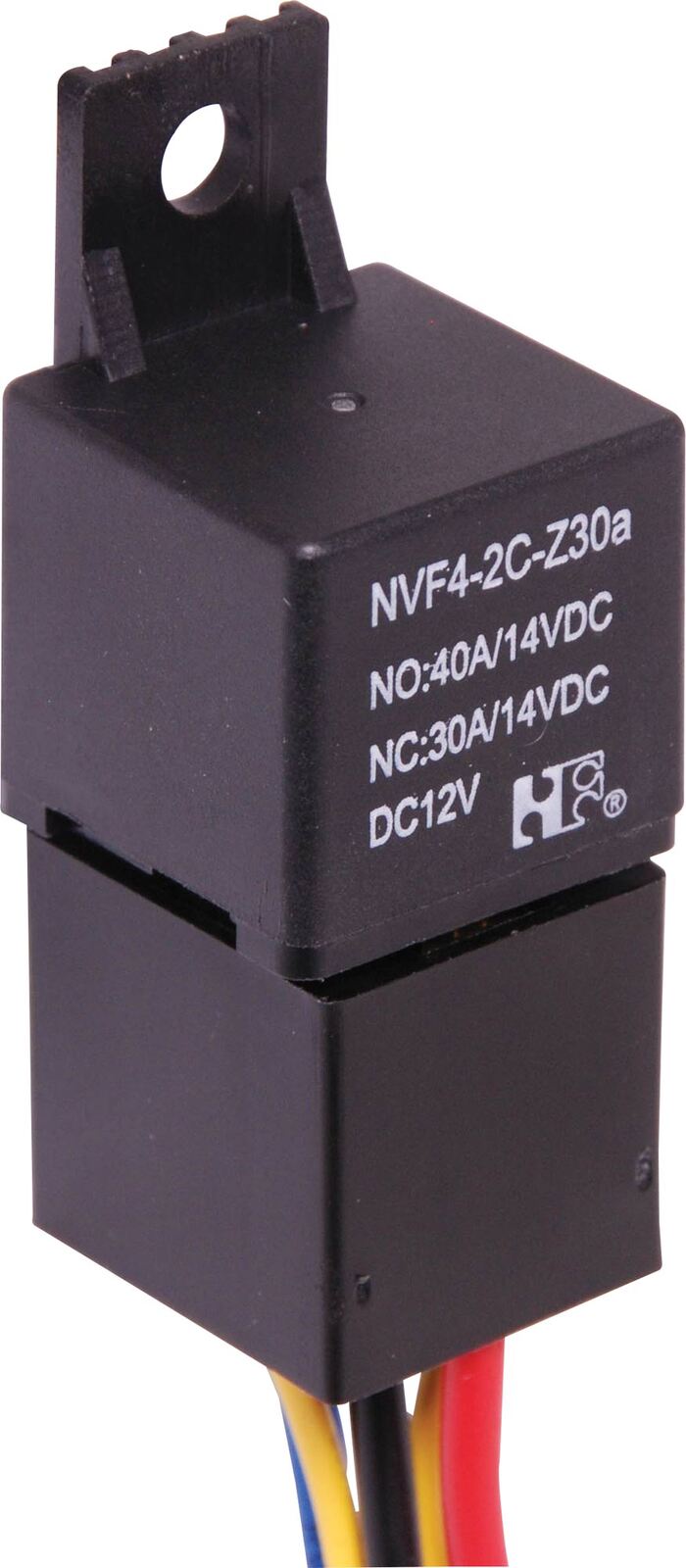

Suits the following Relays: ER0050, ER0051 and ER0053 (19A max)

• Body material: Nylon, heat resistance 85℃
• Connections: copper, heat resistance 100℃ above
• cable:
• Contacts -20AWG – heat resistance 85℃~90℃
• Coil -26AWG – heat resistance 105℃ above

  *Specifications are subject to change without notice
