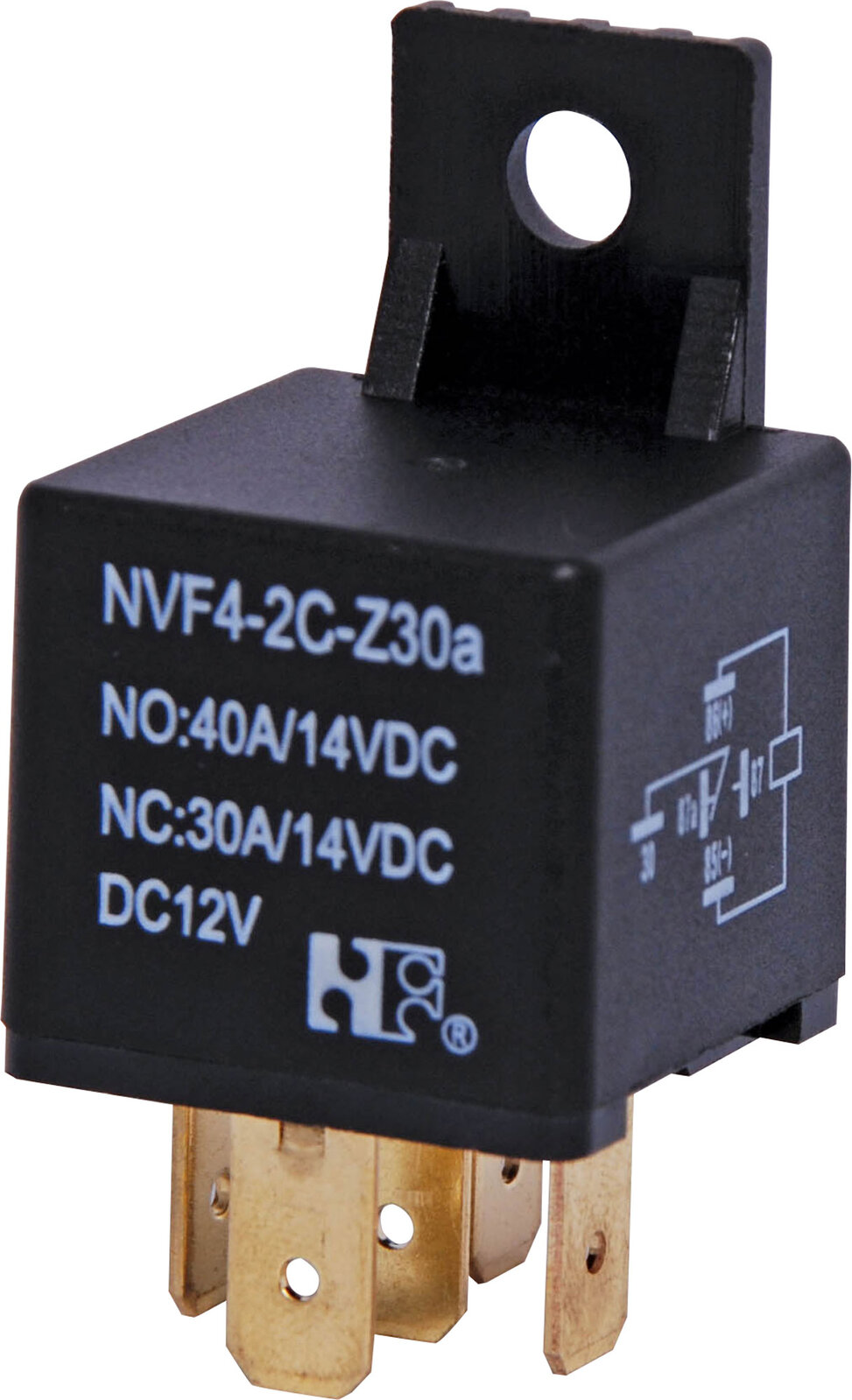

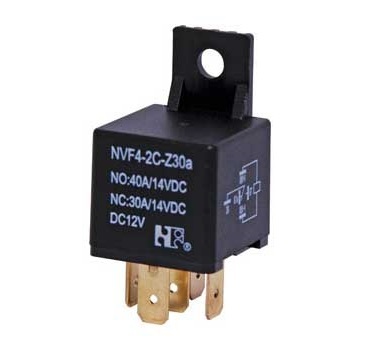

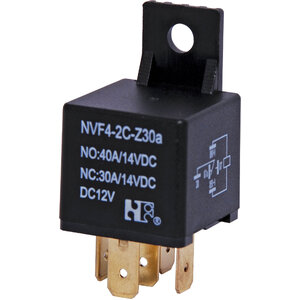

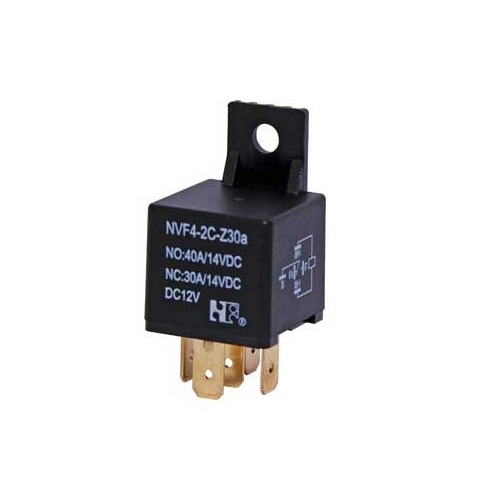

12VDC 40A SPDT Automotive Relay

12V Automotive Relay

A 40A SPDT relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, lights, etc.

• Max Switching Voltage: 75V DC
• Max Switching Current: 30A
• Max VA (Watts): 630W
• Contact Material: Silver tin dioxide
• Coil Resistance: 90Ω
• Max Coil Power: 1.68W
• Insulation Resistance: >100MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 500V AC between open contacts
• 750V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations
• Dimensions: ˜29W x 29L x 26H mm

  *Specifications are subject to change without notice
