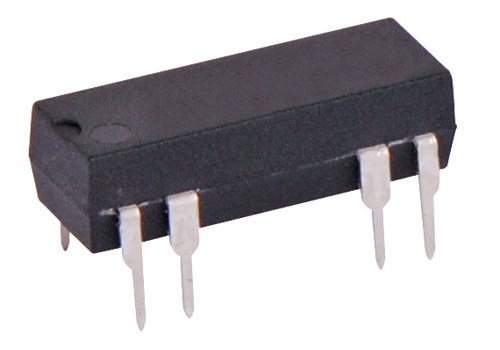

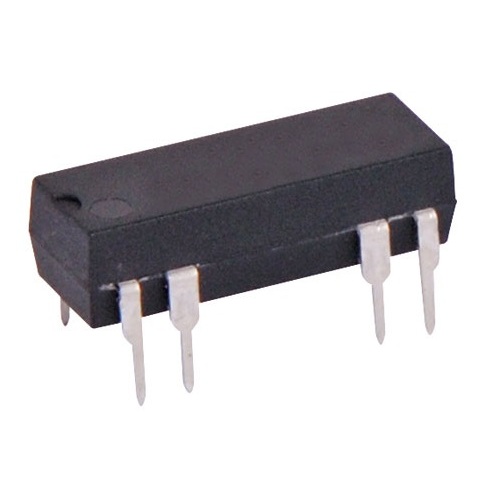

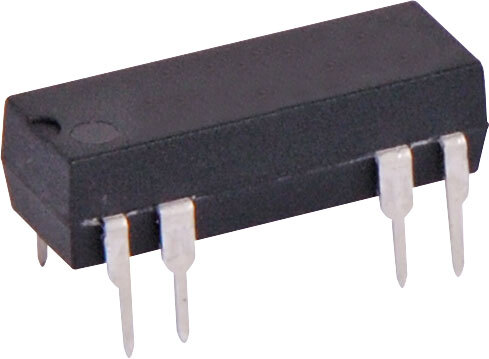

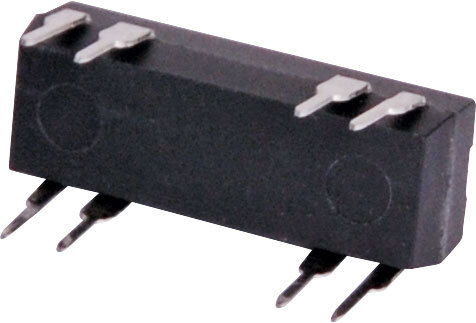

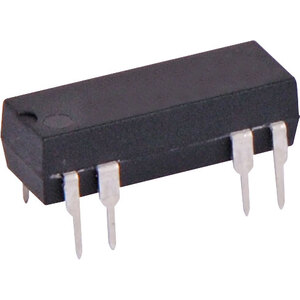

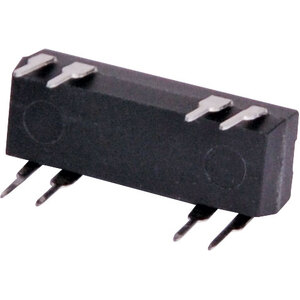

0.5A 5VDC SPST DIP PCB Mount Reed Relay

5V Reed Relay

SKU: ER0000


$5.45
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.17
Buy 11 to 20: Pay $4.91
Buy 21 to 100: Pay $4.67
Buy 101 to 300: Pay $4.21
Buy 301 to 1,000: Pay $3.78




Calculate Shipping

0.5A 5VDC SPST DIP PCB Mount Reed Relay

5V Reed Relay

Fully sealed construction (immersion cleanable). DIL pitch terminals. PCB mount style.

Pinout:

  • Max Switching Voltage: 100V DC
  • Max Switching Current: 1A DC
  • Max VA (Watts): 10VA
  • Contact Material: Rhodium Alloy
  • Coil Resistance: 500Ω
  • Max Coil power: 500mw
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 150V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 10 million operations
  • Mechanical Life: 10 million operations
  • Dimensions:˜20W x 8L x 6H mm

    *Specifications are subject to change without notice



SKU ER0000
Barcode # 9351634053957
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
