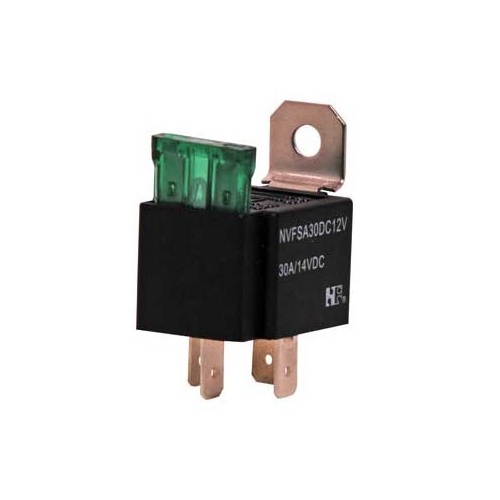

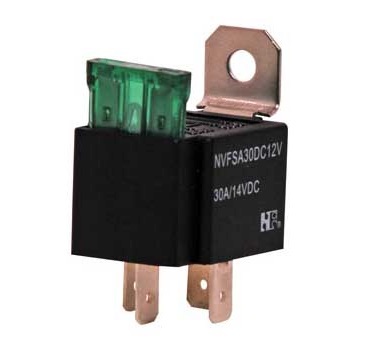

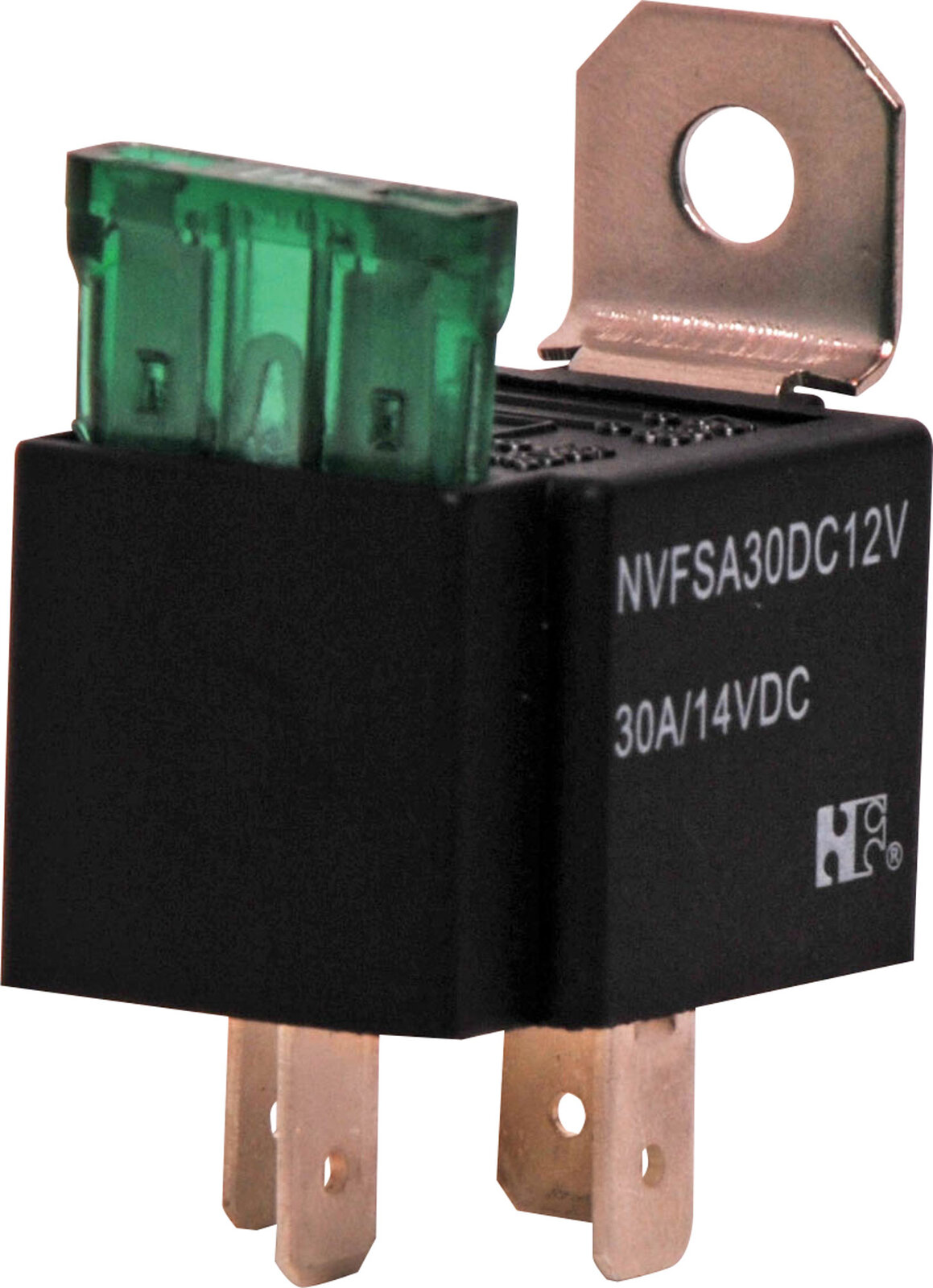

12VDC 30A SPST Fused Automotive Relay

Fused Automotive Relay

SKU: ER0050

In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $10.92
Buy 11 to 20: Pay $10.37
Buy 21 to 100: Pay $9.85

Calculate Shipping

12VDC 30A SPST Fused Automotive Relay

Fused Automotive Relay

30A SPST relay. 12V DC coil. Fitted with 30A blade fuse. Suitable for automotive applications such as alarms, lights, etc.

Note: Not suitable for AC use.


  • Max Switching Voltage DC: 75V
  • Max Switching Current DC: 30A
  • Max Switching Power DC: 420W
  • Contact Material: Silver tin dioxide
  • Coil Resistance: 80Ω
  • Max Coil Power: 1.8W
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 750V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 25.4W x 33.3L x 21.2H mm (excluding fuse and tab)

    *Specifications are subject to change without notice

SKU ER0050
Barcode # 9351634054497
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
