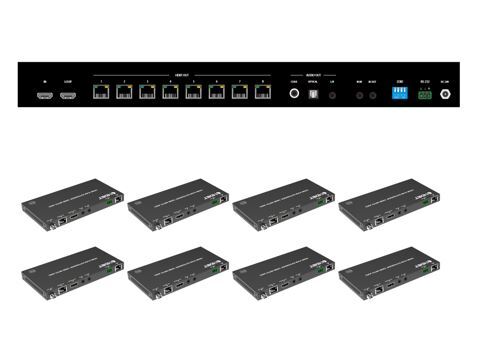

4K HDMI 2.0 8 Port Extender Over Cat 6 with 8 Receivers

Extend 4K60 HDMI Signal to 8 Displays

SKU: AA6199


$899.00
RRP $1,999.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $809.10 ea
Buy 11 to 20: Pay $728.19 ea
Buy 21 to 100: Pay $655.37 ea




Calculate Shipping

HDMI 2.0 8 Port Extender Over Cat 6 with 8 Receivers

Extends an 18GBPS 4K @ 60Hs HDMI 2.0 Signal to 8 Displays

Extends a 4K60 HDR10+ High Definition HDMI 2.0 signal over Cat 6/7 to 4 HDMI receivers up to 60m in distance without signal loss. A cost effective solution for multi-display applications for your home, office, pubs and hotels.


Great solution for sending a set top box HDMI signal such as a Foxtel iQ4 to other TV's in the house or man cave.

The product supports 1 HDMI input, 1 HDMI loop output and 8 CAT outputs. It can extend the signal transmission distance up to 35 meters at the
resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@ 60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. It supports audio extract function and advanced EDID management.

Features
 HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@50/60Hz 4:4:4
Support 3D, HDR, HDR10+, HLG and Dolby vision
Support up to 7.1CH HD audio pass-through
Support digital and analog audio de-embedded output
Extend the signal transmission distance up to 35 meters at the resolution of
4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a
single CAT6/6a/7 cable
Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.
Support one-way IR control signal pass-through
Advanced EDID management
Support one-way PoC function (only from transmitter to receiver)
Compact design for easy and flexible installation

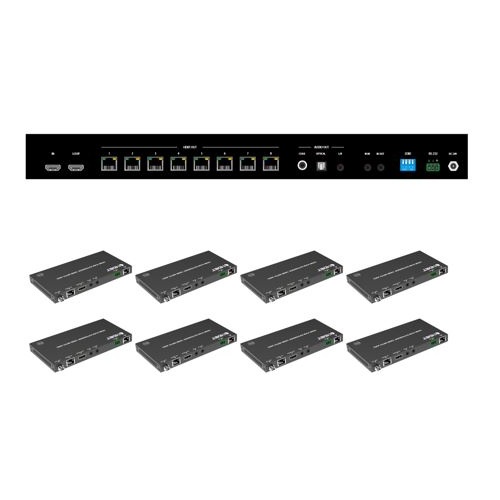

Package Contents:

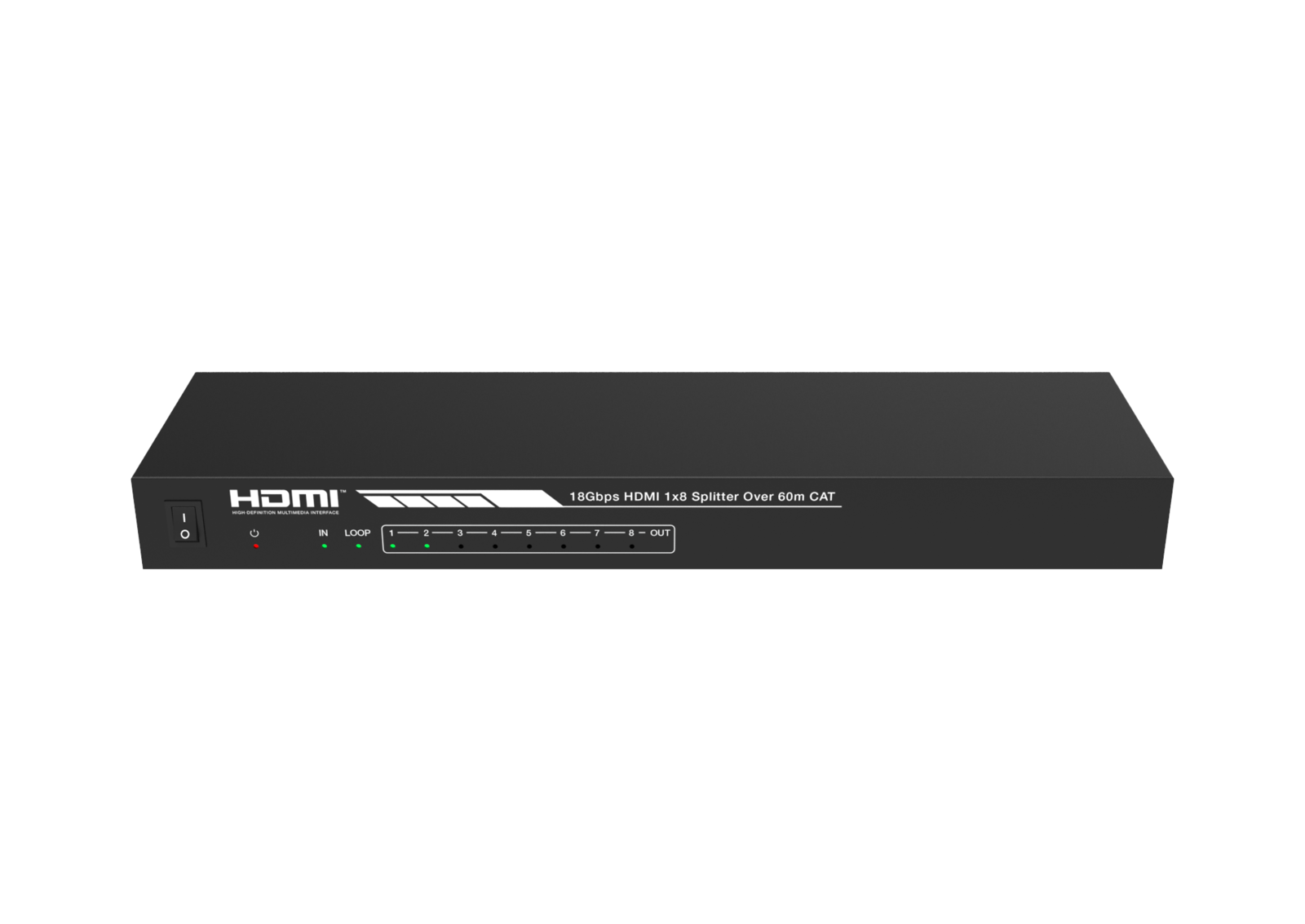

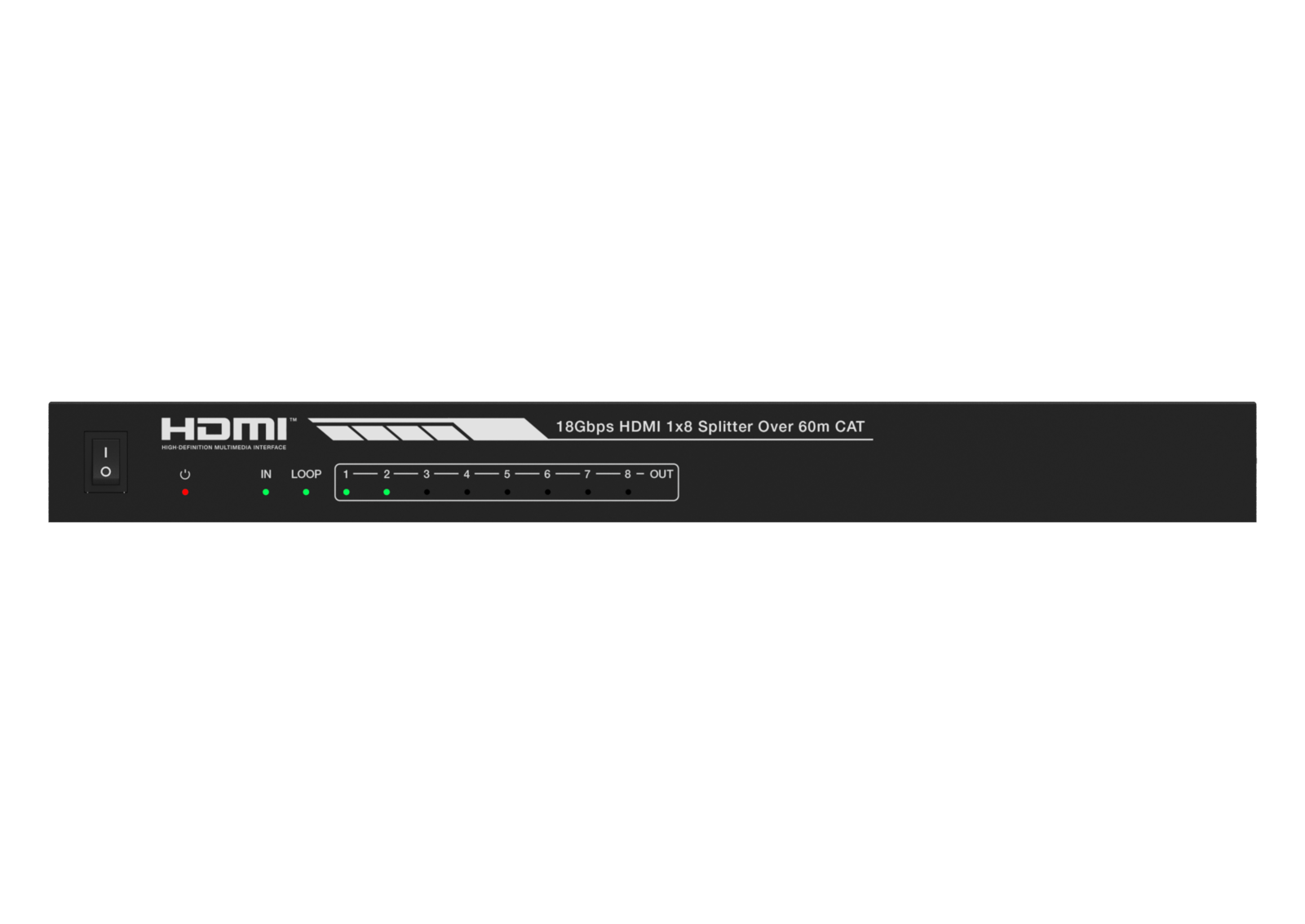

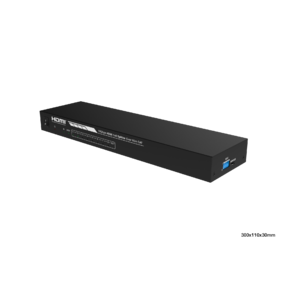

① 1× 18Gbps 1×8 HDMI Splitter over 60m CAT

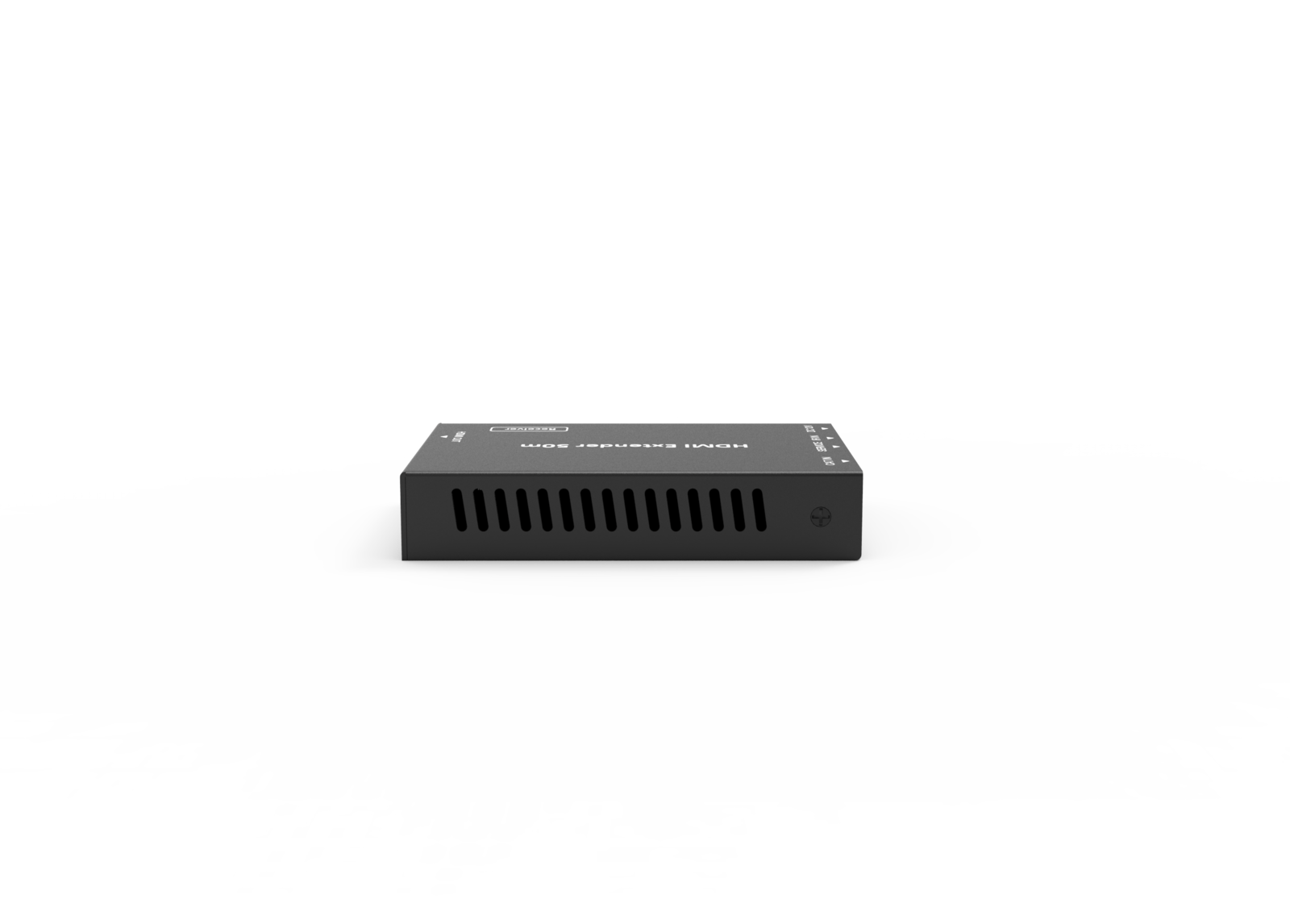

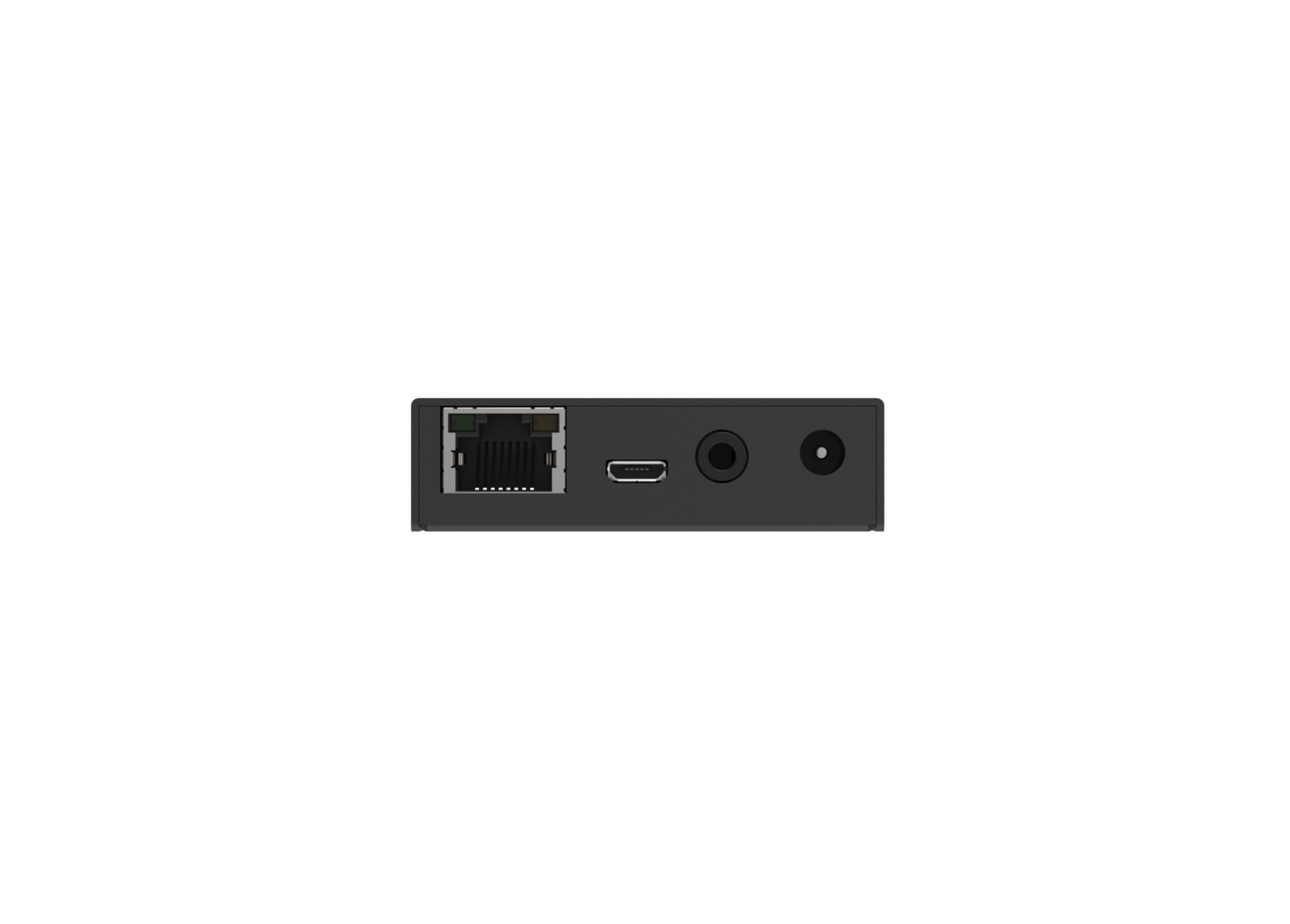

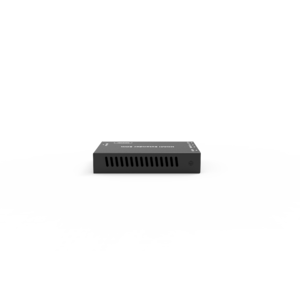

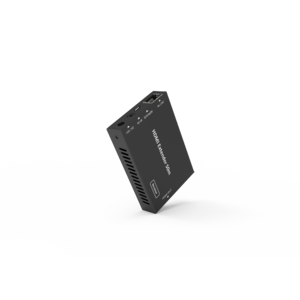

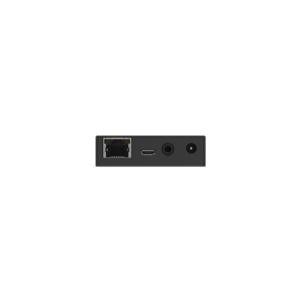

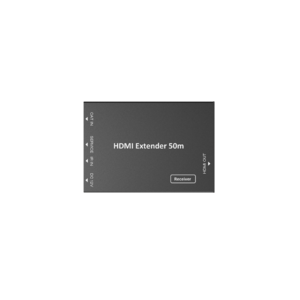

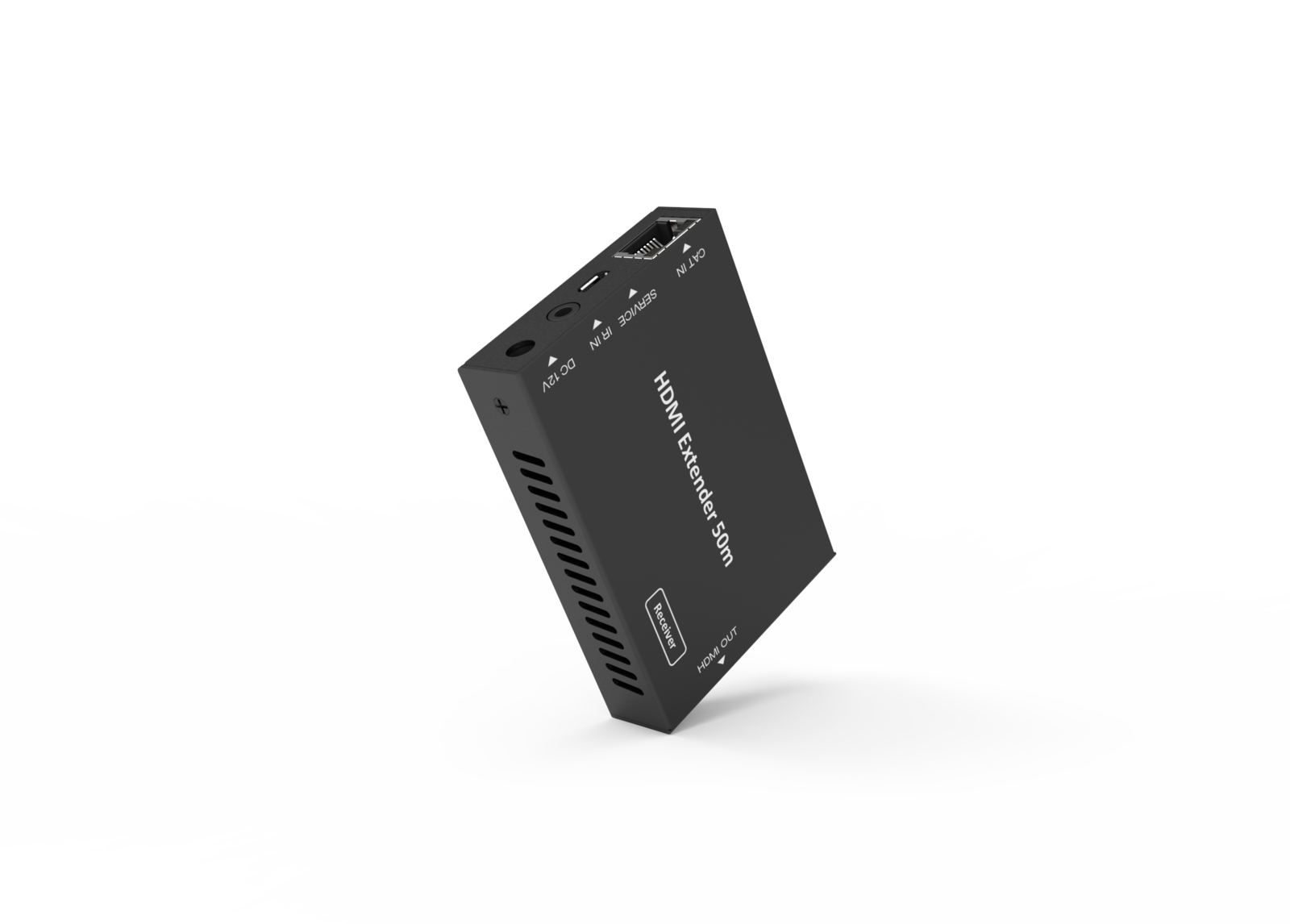

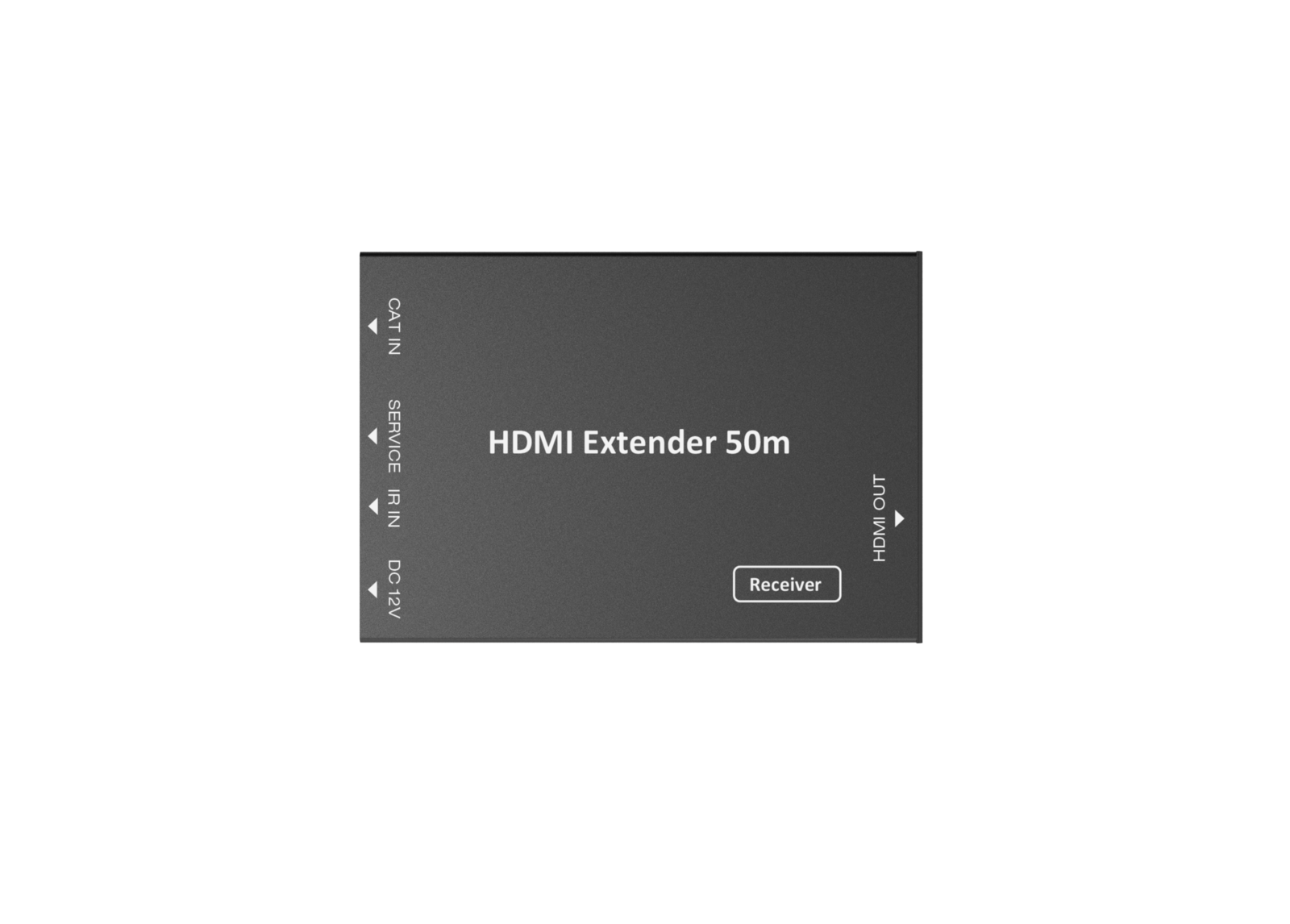

② 8× CAT Receiver
③ 1× IR Blaster Cable (1.5 meters)
④ 8× 20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 1× 12V/2.5A DC Locking Power Adapter
⑥ 1× User Manual

Specifications:
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4k2k@50/60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR Support HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Coaxial Audio Formats
LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
Analog Audio Formats PCM 2.0

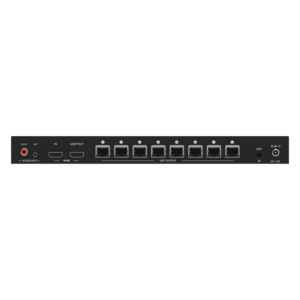

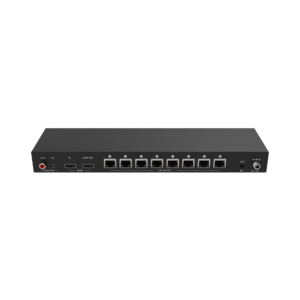

Input

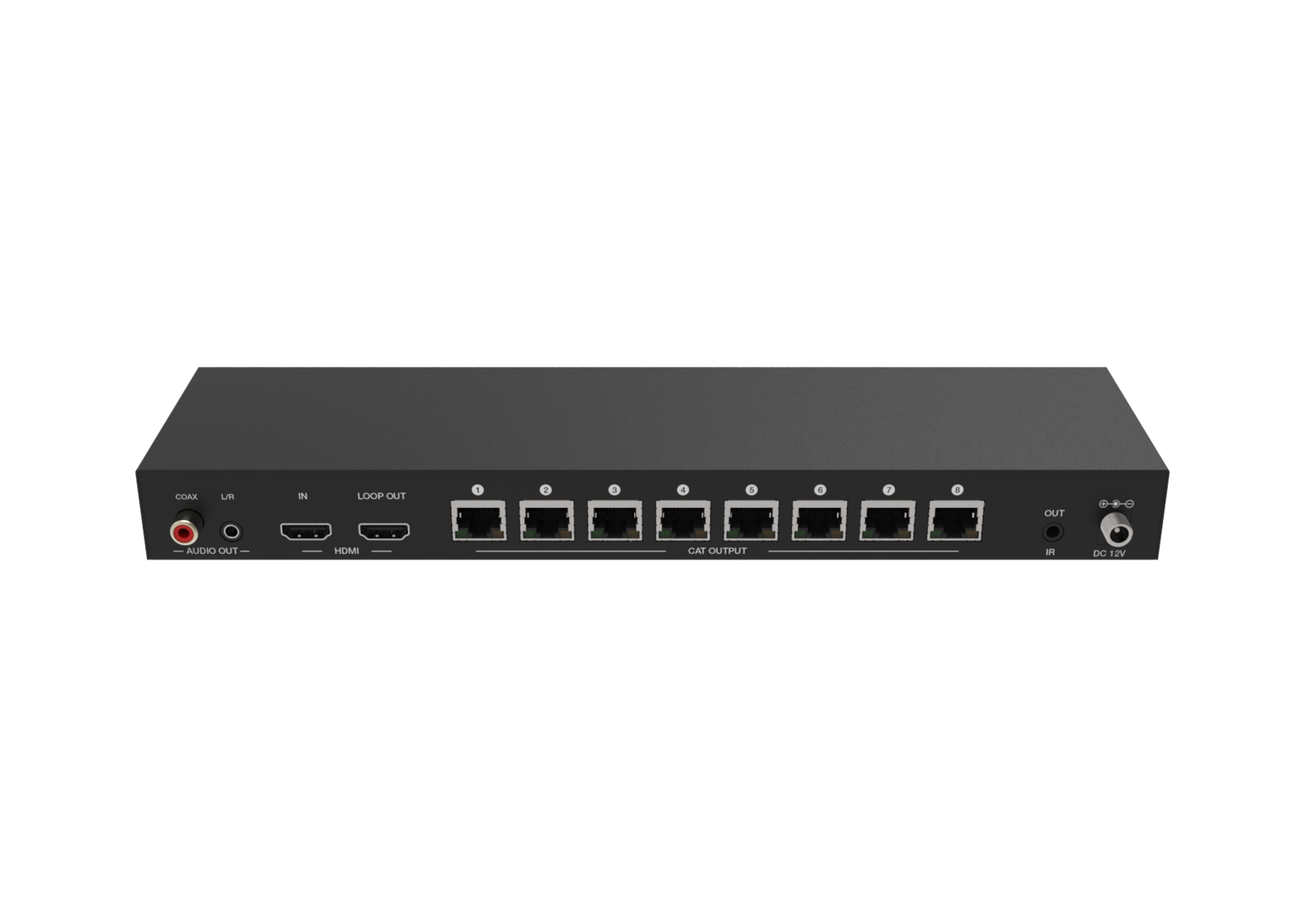

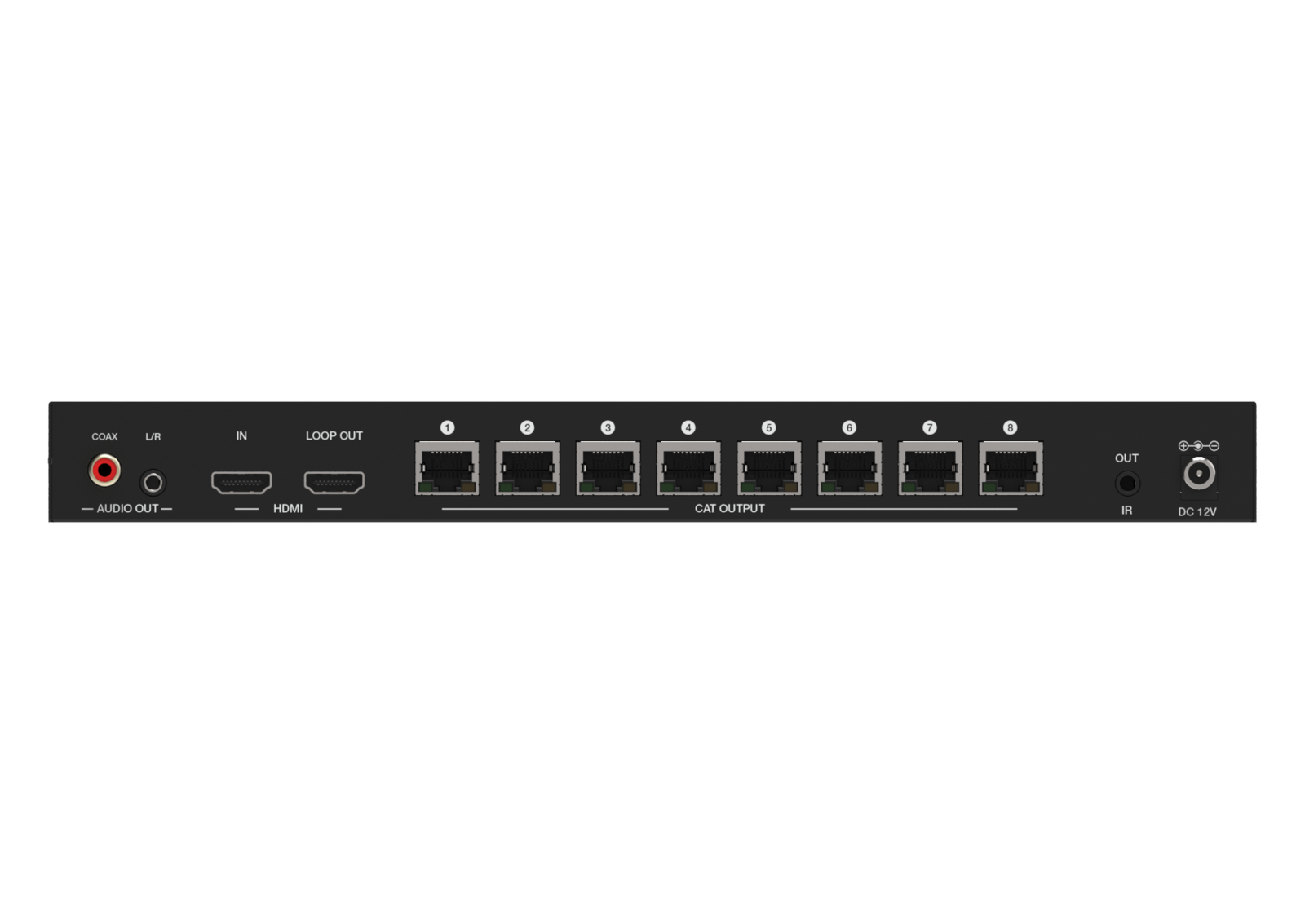

1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female)
8x CAT OUT [RJ45, 8-pin female]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [3.5mm Stereo Mini-jack]
Video Resolution
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Connection
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Support HDR10, HDR10+, HLG, Dolby vision
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)

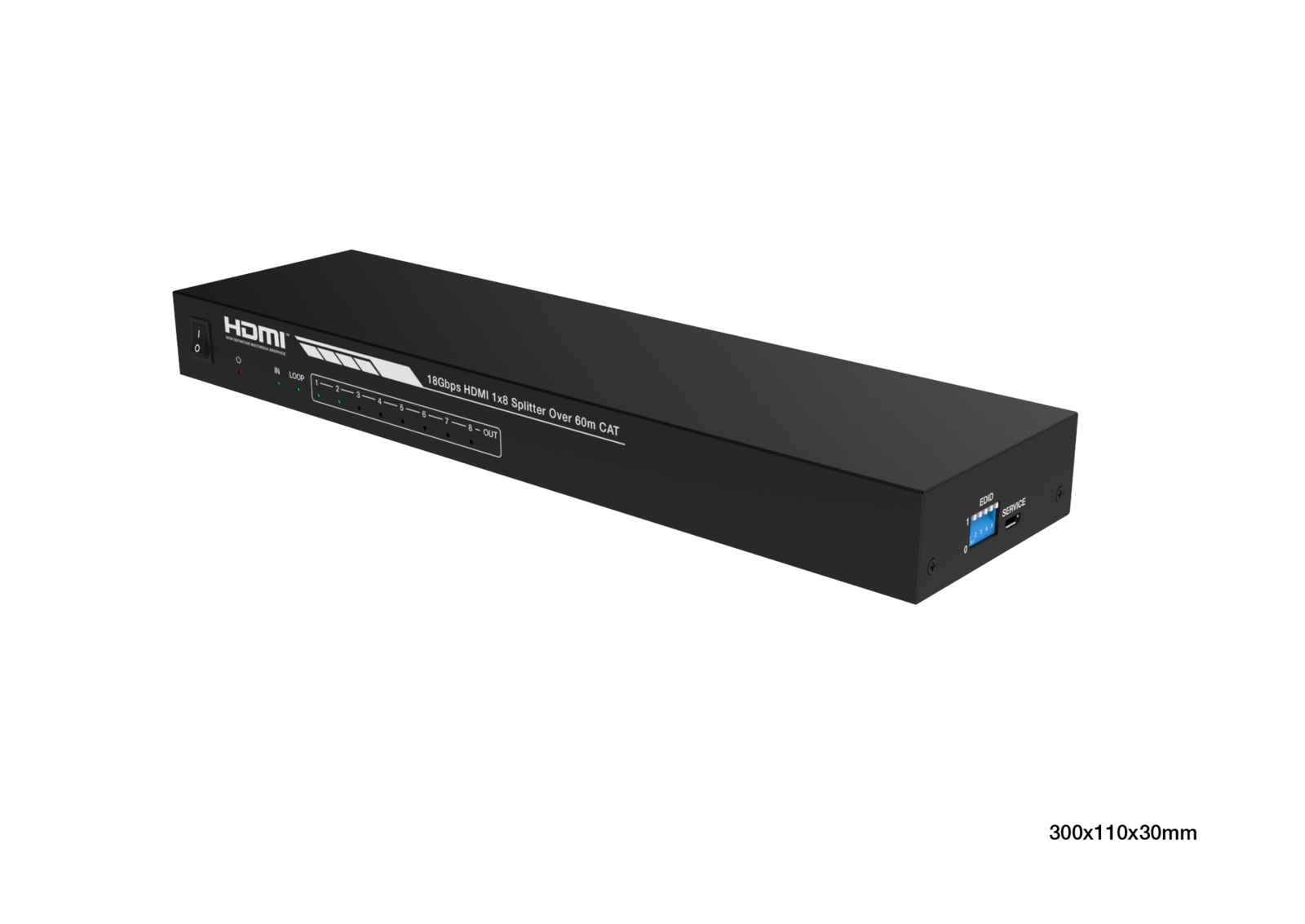

Control
1×SERVICE (Micro USB, Update port)
1x EDID DIAL switch [5-pin]
1x IR OUT [3.5mm Stereo Mini-jack]

CLICK HERE TO SEE OTHER HDMI EXTENDERS IN OUR RANGE

12 Month Warranty

SKU AA6199
Barcode # 9351634016150
Brand Playvision
Shipping Weight 3.1300kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.330m
Shipping Cubic 0.009900000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.010m
Assembled Width 0.200m
