HDMI 2.0 18GBPS 4 Input 4 Output Matrix Switcher Splitter

4 x 4 HDMI True Matrix with EDID and HDCP 2.2



This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 8 HDMI inputs and displaying or splitting the signal to 8 LCD Displays or TV . Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

It supports the transmission of video resolution up to 4K×2K@60Hz Ultra HD YUV4:4:4 and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

ProductFeatures

• HDMI 2.0b, HDCP 2.2 compliant

• Up to 4K2K@60Hz with 24bit RGB / YCBCR 4:4:4

• Supports all HDMI audio formats pass-through

• Extracts HDMI audio to digital analog output

• Supports all HDMI audio formats pass-through

• HDR, Dolby Atmos pass through

• Support smart EDID management

• Support on-panel button, IR, RS-232, LAN and Web GUI Control

• 1U rack mounted design



Specifications:

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.2 and HDCP 1.4

Video Bandwidth: 18Gbps 4K2K@60Hz (YUV 4:4:4)

Colour Depth: 8-bit, 12-bit

Colour Space: RGB, YUV4:4:4

HDMI Audio Formats: LPCM, Dolby TrueHD, and DTS-HD Master Audio

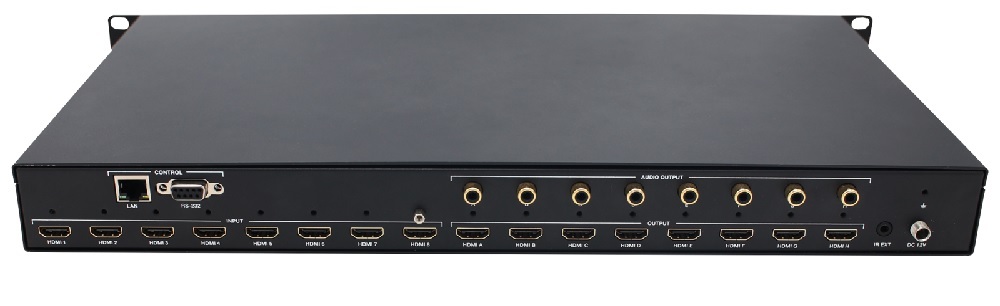

Inputs: 8x HDMI Type A [19-pin female] 1x LAN [RJ45, Control] 1x RS-232 [9-pin D-sub, Control] 1x IR EXT [3.5mm Stereo Mini-jack]

Outputs: 8x HDMI Type A [19-pin female] 8x Audio Output [3.5mm Stereo Mini-jack]

Housing: Metal Enclosure

Dimensions: 483mm (W)×253mm (D)×44.5mm (H)

Weight: 3.35kg



Contents:

① 1x 8x8 HDMI Matrix

② 1x 12V/3A Locking Power Adaptor

③ 1x Remote Control

④ 1x Wideband IR Receiver cable

⑤ 1x RS-232 male to female serial cable

⑥ 1x User Manual 2/12 4.
