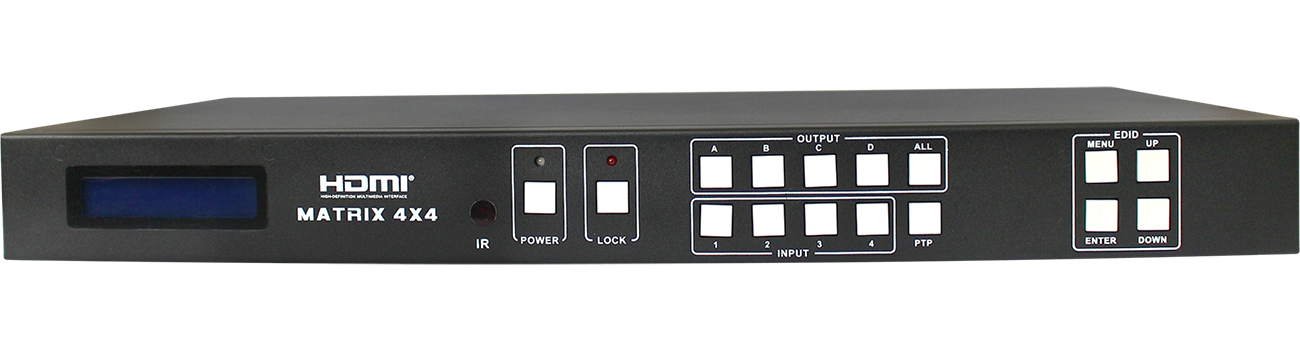

HDMI 2.0 4 Input 4 Output Matrix Switcher with HDBaseT Extender

Features 4 x HDBaseT Receivers w/ 4 Mirrored HDMI Output

Special Order Product - May take 2 weeks for delivery

This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 8 LCD Displays or TV . 4 output is via HDMI ports which are mirrored output via 4 x HDBaseT up to 70m in range. Perfect for Distributing 4K 2160p AV through other LCD/TV's around the house. Perfect for a high end AV set up in your home, office, pubs abd clus.

It supports the transmission of video (resolutions up to 1080p Full HD and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect a HD BaseT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 70m for multi-room connectivity. Suitable for 4K Blu-Ray players, Foxtel iQ3 and iQ4 Set-Top boxes, Home Theater PCs, Gaming consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio, and 3D signal compatibility.

Features:

• HDMI2.0, HDCP2.2 compliant.

• Support color space conversions among RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats without deep color.

• Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.

• Support 3D frame sequential video format up to 1080p@60.

• Support high resolution VESA mode video format up to QSXGA@60Hz.

• Support reception of any audio data conforming to the HDMI specification such PCM up to 192kHz, compressed audio(IEC 61937),DSD,DST,DTS and HBR.

• Support Transmission distance: Over CAT5e/6/7

         70 meters:  1080P @ 60Hz @ 36bit; 3D 1080P @ 30Hz 36bit;

                40 meters:  1080P @ 60Hz @ 48bit; 1080P @120Hz @ 24bit;  3D 1080P @ 60Hz @ 36bit; 4K x 2K @ 30Hz @ 24bit.

• Support POE function.

• Support wideband IR(30-60Khz) matrix system, IR transport channel can be forward or backward and supports GLOBAL IR.

• Support RS-232 4 channel bypass.

• Support simultaneous HDMI and CAT outputs

• Support RS-232, remote control, on-panel control and TCP/IP Control

• Support smart EDID management

Package Contents

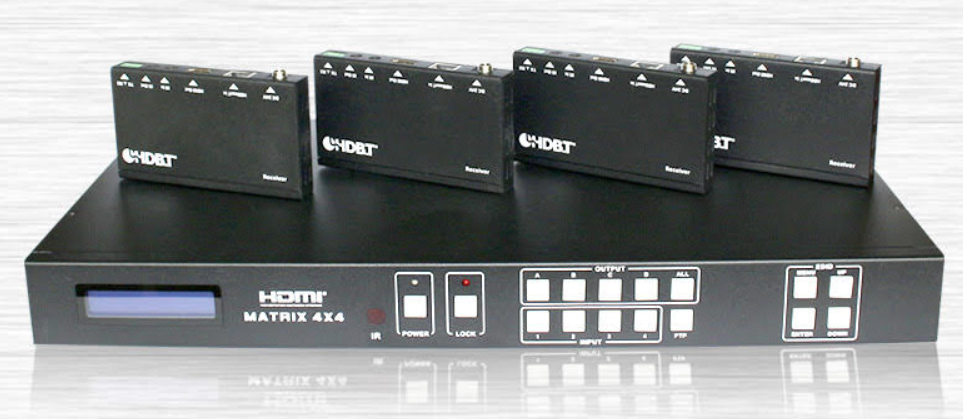

HD BaseT 4x4 HDMI Matrix x 1
HD BaseT Receiver x 4
AC power cable x 1
Operation Manual x 1
Wideband IR Tx cable x 5
Wideband IR Rx cable x 6
HDMI Matrix IR Remote x 1
Mounting ears(Matrix) x 2
Mounting ears(Receiver) x 8
RS-232 cable x 1



Specifications

Technical

Video Bandwidth                   297MHz [10.2Gbps]

Support Video Resolution     480i, 576i, 480p, 576p, 720p, 1080i,

                                              1080p 24 / 30 / 50 / 60. 4Kx2K @ 30;

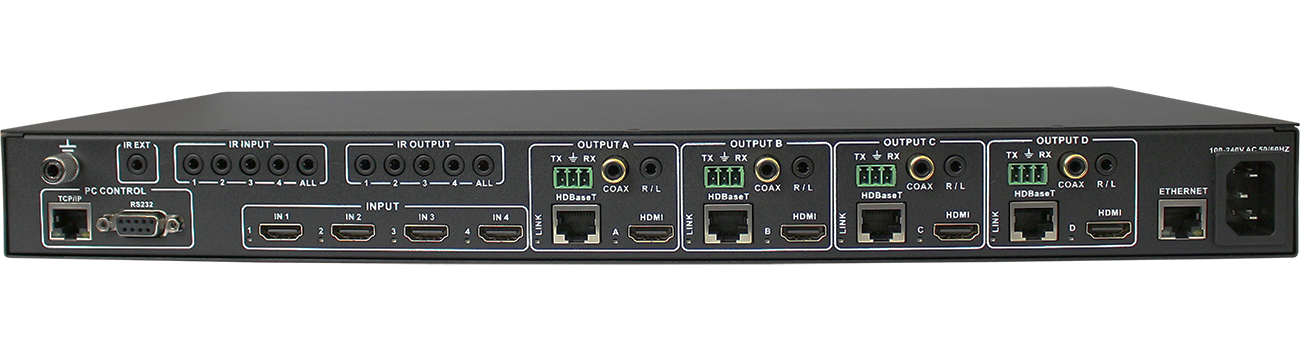

Input Ports                             4 × HDMI, 5 × IR Receiver, 1 × RS-232,

                                              1 x RJ-45 (Control), 4 x RS232

Output Ports                         4 × CAT5e / 6 / 7, 4 × IR Blaster, 4 × HDMI

HDMI connector                    Type A 19 pin female

RJ-45 connector                   WE/SS 8P8C

3.5mm connector                 (TX and RX) IR Receiver/IR Blaster

ESD Protection                     Human-body Model: ± 8kV (Air-gap discharge)

                                             ± 4kV (Contact discharge)

Power Supply                       AC Power Supply

Dimensions                         440 mm (W) × 200 mm (D) × 45 mm (H)

Weight                                  1820 g

Chassis Material                  Metal

Silkscreen Color                  Black

Operating Temperature       0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature          −20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity                20~90 % RH (non-condensing)

Power Consumption            50 W(max)/0.5w(Standby)
