4K HDMI 2.0 4 x 4 Seamless Matrix Video Wall

4 Input to 4 Output Seamless Matrix Video Wall

SKU: AA6646

RRP $1,999.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $949.05 ea
Buy 11 to 20: Pay $854.15 ea
Buy 21 to 100: Pay $768.74 ea

Calculate Shipping

4K HDMI 2.0 4 x 4 Seamless Matrix Video Wall

4 Input to 4 Output Seamless Matrix Video Wall

Special Order Item - Delivery is 2-3 Weeks

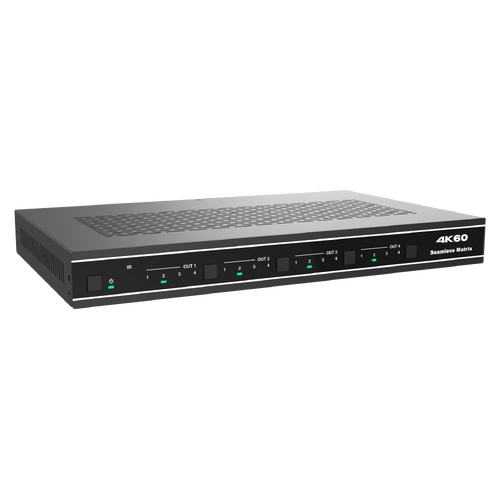

The 4K60 4:4:4 HDMI matrix is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 etc video wall solution. It also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.


☆ Compliant HDMI 2.0b

☆ Compliant HDCP 2.2 and HDCP 1.4

☆ Features 2 operational modes:

    - 4×4 Matrix (seamless switch)

    - Video wall (2×2, 4×1 or 1×4 etc configuration)

☆ Seamless video switching

☆ Video inputs support all industry standard video resolutions including VGA-WUXGA (up to

     1920×1200 @60Hz) and 480i-4K (3840 x 2160 @60Hz 4:4:4, 4096 x 2160 @60Hz 4:4:4)

☆ HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4

☆ Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through

☆ Advanced EDID management

☆ Web interface module for control and configuration of Matrix

☆ Control via front panel, IR, RS-232 and TCP/IP

☆ 3rd Party drivers available for all major home control brands




HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.4

Video Bandwidth


Video Resolution

Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K

(3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4)


Output: 4096x2160p60, 4096x2160p50, 3840x2160p60,

3840x2160p50, 3840x2160p30, 1920x1080p60,

1920x1080p50, 1920x1080i60, 1920x1080i50,

1920x1200p60rb, 1360x768p60, 1280x800p60,

1280x720p60, 1280x720p50, 1024x768p60, auto

Color Space

RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth


HDMI Audio Formats

HDMI audio: LPCM 2.0 / 5.1 / 7.1CH

Analog audio: LPCM 2.0CH

IR Level


IR Frequency

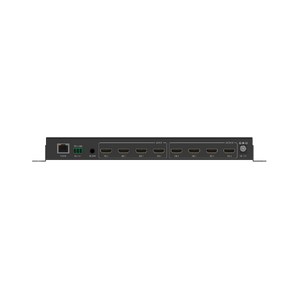

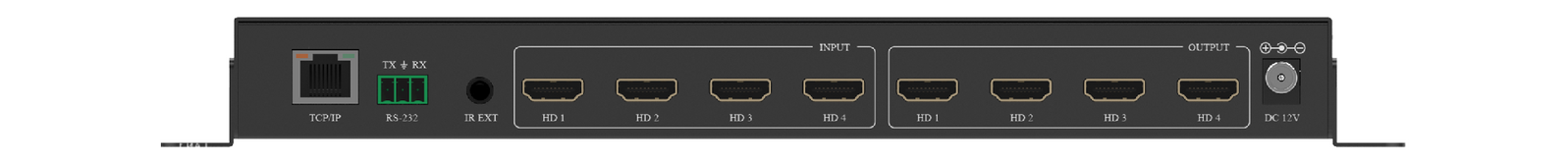

Input Ports

4x HDMI Type A [19-pin female]

Output Ports

4× HDMI Type A [19-pin female]

Control Ports

1× RS-232 [3pin-3.81mm phoenix connector]

1× TCP/IP [RJ45]

1× IR EXT [3.5mm Stereo Mini-jack]




Metal Enclosure




270mm (W) × 166mm (D) × 30mm (H)



Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)

Power Consumption

19.56W (Max)

Operation Temperature

32°F ~ 104°F / 0°C ~ 40°C

Storage temperature

-4°F ~ 140°F / -20°C ~ 60°C

Relative Humidity




20 - 90% RH (no condensation)

SKU AA6646
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
