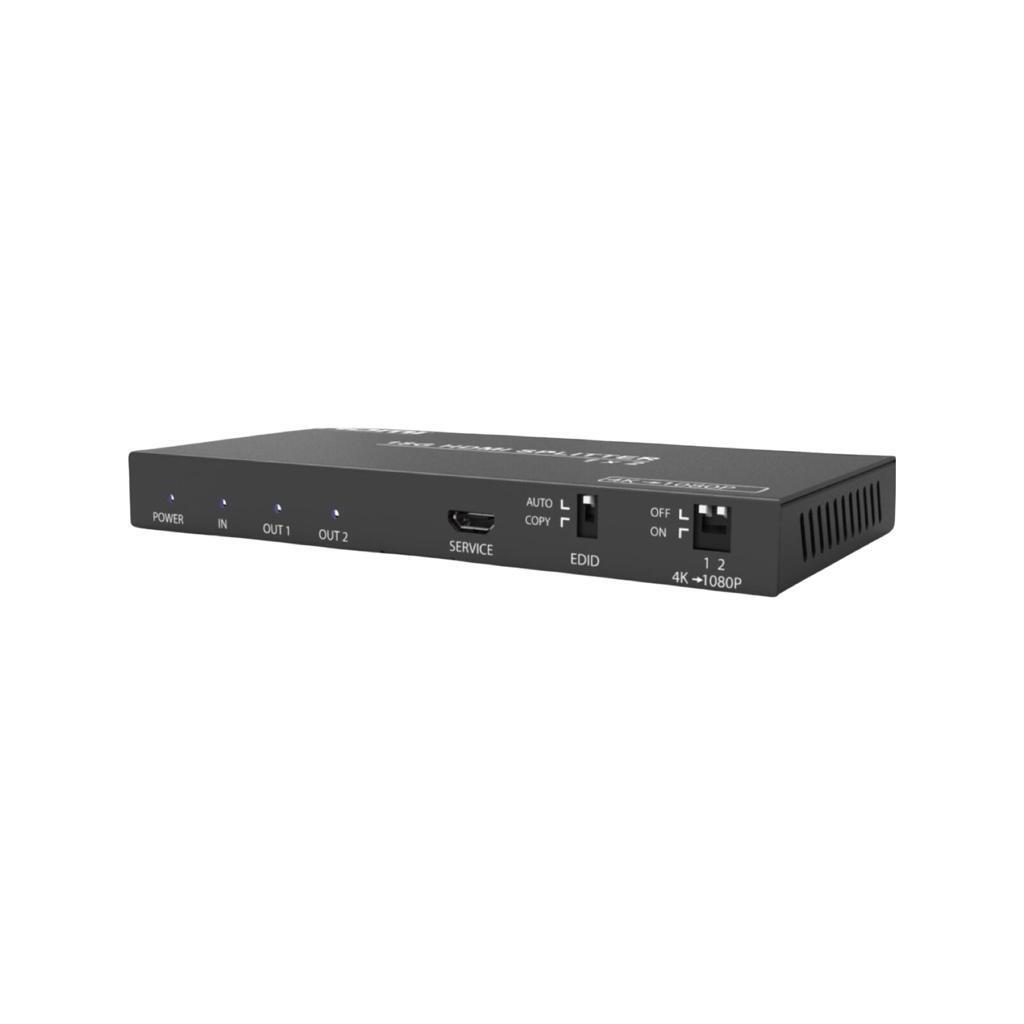

2 Way HDMI 2.0 18GBPS Splitter with EDID and Down Scaler

Allows manual EDID setting and Video resolution output

SKU: AA6156

RRP $249.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $89.10 ea
Buy 11 to 20: Pay $80.19 ea
Buy 21 to 100: Pay $72.17 ea

Calculate Shipping

2 Way HDMI 2.0 18GBPS Splitter with EDID and Down Scaler

Allows manual EDID setting and Video resolution output

Connecting a 4K HDMI Source such as a Foxtel IQ4, PS4 Pro or XBOX One S to multiple LCD Displays with varying resolutions can be rather frustrating. The 4K HDMI source detects the lowest resolution and displays this HDMI signals across all LCD Displays connected. With this 2 Way HDMI 2.0 Splitter, you are able to output a 4K and 1080P resolutions across 2 Displays connected to the HDMI Splitter. It has a manual EDID setting that allows manual control over which EDID setting to follow. It also have a Video resolution switch to manually select each output to dispay 4K or 1080p. Also supports HDR and has HDCP Stripper / Converter to allows connectivity to older LCD's and TV's with earlier HDCP versions.

It integrates a HDMI Audio Extractor which allows interfacing of older amplifiers, receivers or even wireless headphones via the digital fibre optic toslink output or line level Audio output via the 3.5mm Stereo socket.


  • One HDMI 2.0 input signal split to two HDMI 2.0 sink devices

  • 4K video input can support 1080P and 4K output resolutions simultaneously. (Note: output only supports the same refresh rate, for example: 60Hz).

  • Support  HDR

  • Support 4K*2K @ 60Hz resolution

  • Support deep color 24bit, 30bit, 36bit

  • HDMI output audio support EDID function: mix and max two audio mode option

  • Video format support: 4Kx2K/60Hz 24Bit Ycbcr4:2:0; 4Kx2K/60Hz 12Bit  Ycbcr4:2:0 ; 4Kx2K/60Hz 8Bit Ycbcr4:4:4/ Ycbcr4:2:0

  • HDMI input cable distance can be up to 10m and HDMI output cable distance can be up to 10 when transmitting 1080P signal by using standard AWG24 HDMI cable; The HDMI Input cable distance can be up to 5m and HDMI output cable distance can be up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI cable;

  • Support signal retiming

  • Supports Dolby Atmos

  • No loss of quality

  • Installs in minutes

  • Includes DC5V/1A power supply


  • Housing: Metal Enclosure

  • Colour: Black

  • HDMI Compliance: HDMI 2.0b

  • HDCP Compliance: HDCP 2.2 and HDCP 1.4

  • Video Bandwidth: 18Gbps

  • Video Resolution: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)

  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth: 4K60Hz 8-bit, 1080P 12-bit

  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • L/R Audio Formats: PCM 2.0

  • Optical Audio Formats: LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1

  • ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

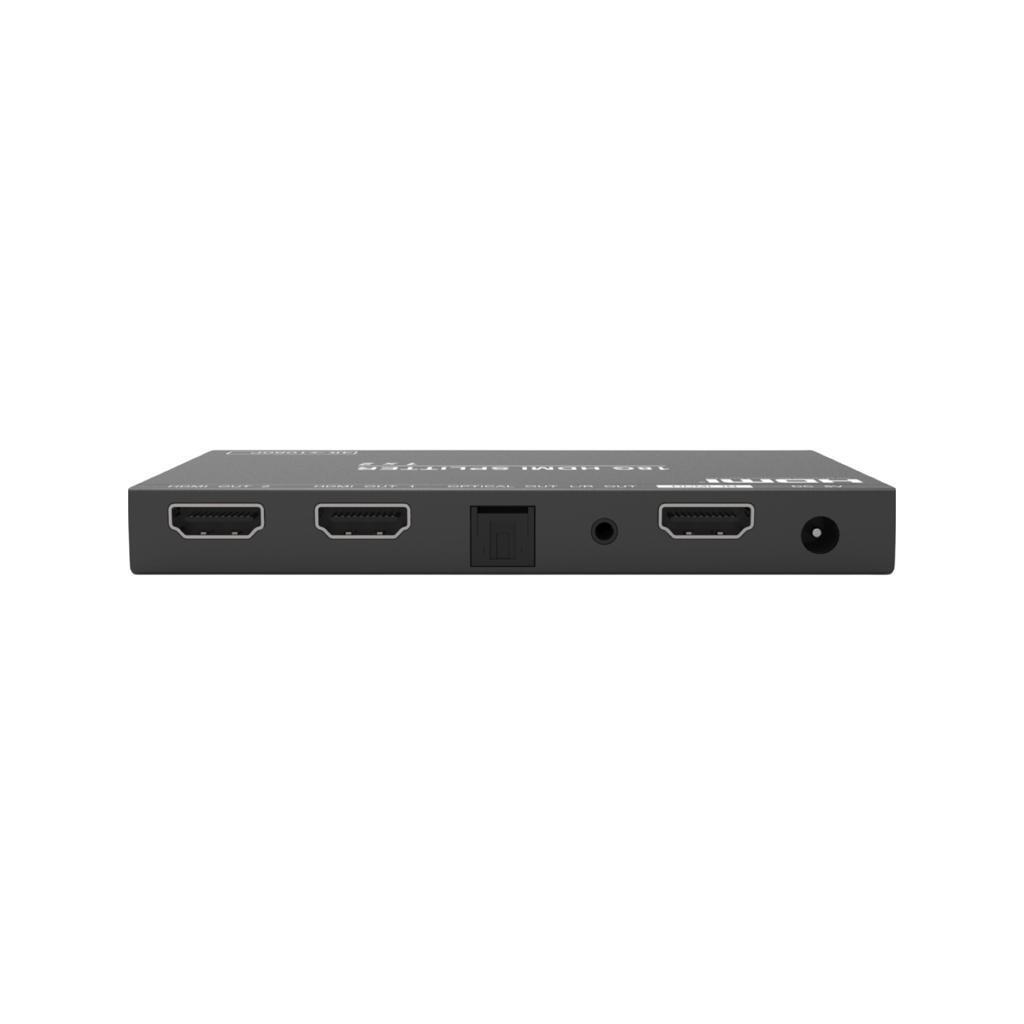

  • Inputs: 1×HDMI Type A [19-pin female]

  • Outputs: 2×HDMI Type A [19-pin female], 1×L/R Audio out [3.5mm Stereo Mini-jack], 1×Optical out [S/PDIF]


What is a HDMI Splitter?


Do I need a HDMI Switcher of a HDMI Splitter?



12 Month Warranty

SKU AA6156
Barcode # 9351634014644
Brand Aus Electronics Direct
Shipping Weight 0.3400kg
Shipping Width 0.150m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.001680000m3
Unit Of Measure ea


By: on 6 August 2021
Following a Foxtel iQ4 software upgrade, I was no longer able to run the signal to 2 TV's via my simple and cheap HDMI splitter. I chatted with the guys at Aus Electronics who recommended a superior splitter and reassured me that it was compatible with iQ4....I was a bit sceptical as I had tried new cables and a new cheaper splitter already, but figured I had nothing to lose. I'm so glad I listened to their advice, as the splitter they recommended works a treat. I would not hesitate in buying from Aus Electronics again, and have no qualms about recommending their services and products. Thanks guys!!!


By: on 22 December 2020
Great product but even better after sales support and service. Highly recommended
