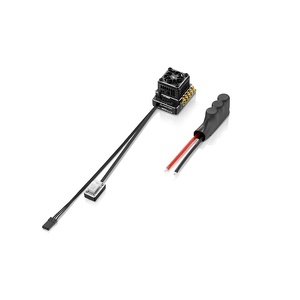

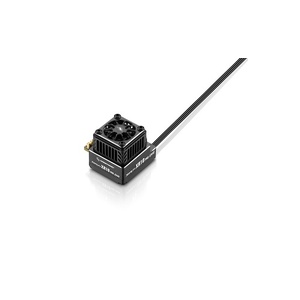

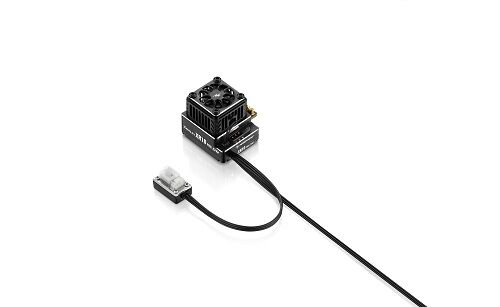

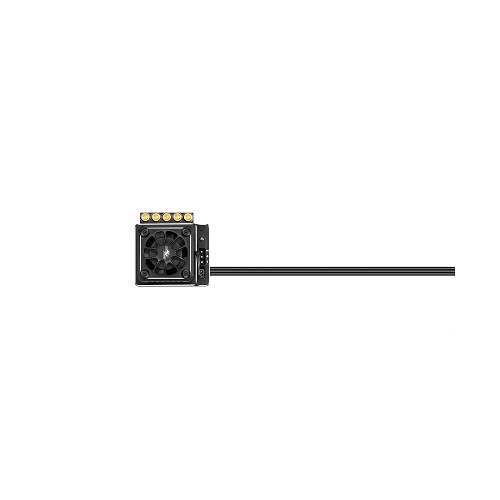

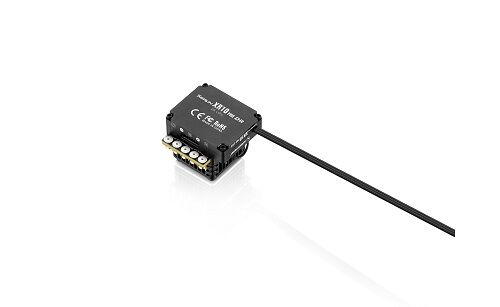

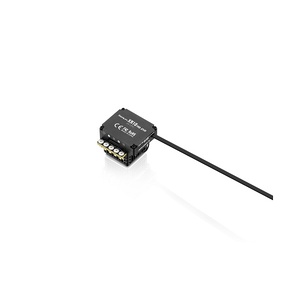

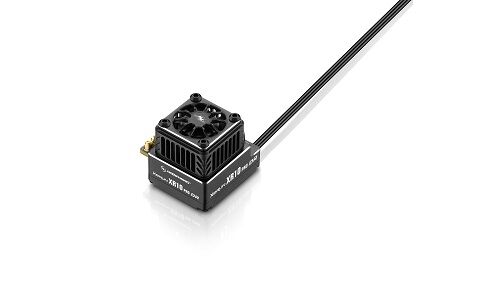

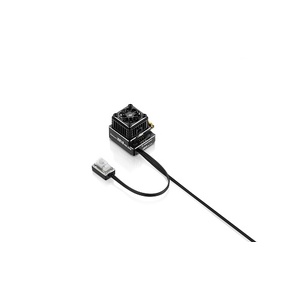

XERUN XR10 PRO DR Brushless ESC

Brushless ESC Upgrade for RCs

SKU: TR9691


$399.95
RRP $799.90
In Stock




Calculate Shipping

XERUN XR10 PRO DR Brushless ESC

XeRun XR10 PRO DR – Precision Engineering for Serious RC Drag Racers

Built for the demands of high-level drag racing, the XeRun XR10 PRO DR ESC combines championship-proven tech with cutting-edge hardware for ultimate control, stability, and performance.

Advanced Processing Power

At its core is a high-performance 32-bit M4 microprocessor, delivering lightning-fast processing and ultra-precise throttle response. The software is optimized from the world championship-winning XR10 PRO G2S, giving you elite-level control specifically tuned for drag racing dominance.

Instant Power Delivery

Introducing Rapid Response Technology – with throttle acceleration response time reduced when set to max 30, you’ll get instant torque right off the line, where every millisecond counts.

Ultra-Stable Voltage Output

Equipped with a massive 9900μF ultra-large capacitor, the XR10 PRO DR offers nearly 9x the capacitance of standard ESCs. This ensures stable voltage under extreme loads, keeping your system smooth and reliable even during peak bursts of power.

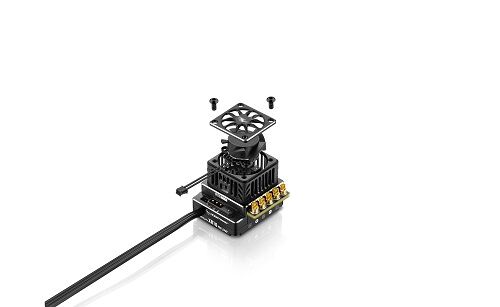

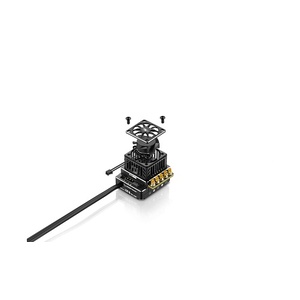

Next-Gen Cooling System

Stay cool under pressure. A patented frameless fan design pushes high-volume airflow through the sides for superior heat dissipation. Inside, a copper heat-conducting busbar transfers internal heat directly to the integrated alloy casing radiator, keeping temps in check during the most demanding runs.

Smart Wireless Tuning & Data Logging

Easily connect via the OTA Bluetooth module for full mobile app control. Adjust parameters, upgrade firmware, and monitor real-time telemetry — including throttle, voltage, temperature, speed, and more — right from your smartphone. After your run, dive into detailed performance graphs to fine-tune your setup and get the most out of every launch.


Dominate the strip with the ESC engineered for speed, stability, and serious performance — the XeRun XR10 PRO DR is your ultimate drag racing advantage.



SpecificationsType
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No

Specifications
Cont./Peak Current: 200A/1200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 5V-7.4V @5A

Wires & Connectors
Input Wires: Black-10AWG-200MMmm*1 Black-10AWG-200MMmm*1
Output Wires: Black-10AWG-200MMmm*3
Input Connectors: No
Output Connectors: No

Esc Programming Via
SET Button on ESC: Not Support
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
Programming Port: Separate

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 37.7*37.2*33.2mm
Weight: 137g (Included wires & connectors)

Applications
Motos: SD BL Motors
Vehicles: 1/10th Drag Racing
Applicable Motor: XERUN 3652/3662 DRX

3 Month Warranty

SKU TR9691
Barcode # 9351634088676
Brand Hobbywing
Shipping Weight 0.1370kg
Shipping Width 0.377m
Shipping Height 0.332m
Shipping Length 0.372m
Shipping Cubic 0.046561008m3
Unit Of Measure ea
