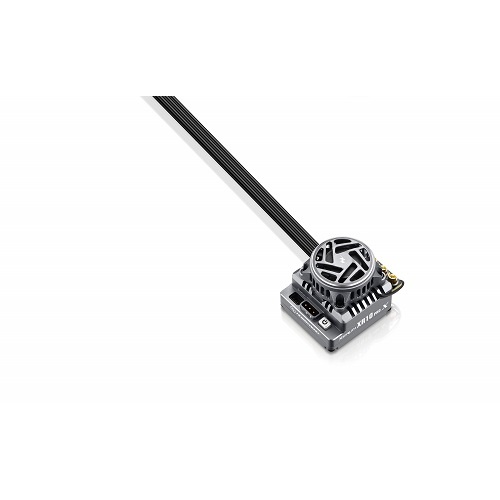

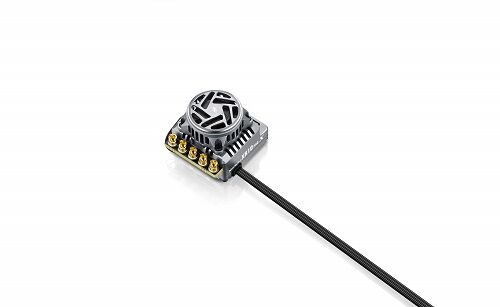

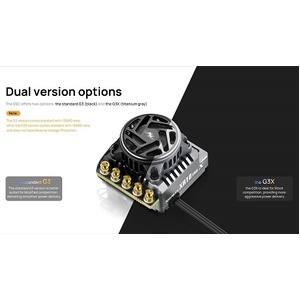

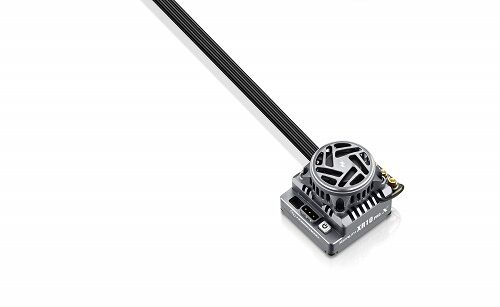

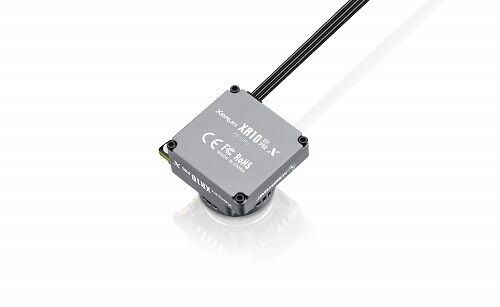

XERUN XR10 Pro (Grey) G3-X

Precision Engineering for the Demands of Modern RC Racing

Built for elite-level 1/10 scale competitive racing, the XR10 Pro G3 takes everything drivers loved about the G2S and pushes the limits even further. With smarter control systems, enhanced thermal management, integrated data logging, and refined braking dynamics, the G3 is engineered for consistency, reliability, and winning performance.

---

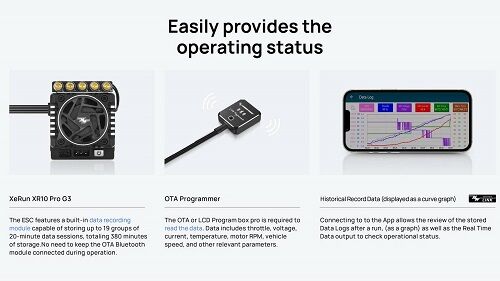

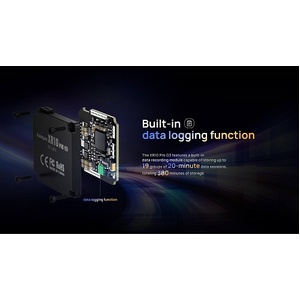

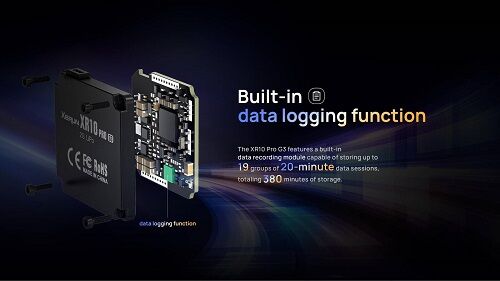

Built-In Data Logging & Real-Time Telemetry

The XR10 Pro G3 features an onboard data recording module, capable of storing up to 19 logs of 20-minute runs (a total of 380 minutes).
Captured data includes:

• Throttle input

• Voltage & current

• ESC & motor temperature

• Motor RPM

• Vehicle speed

• And more...

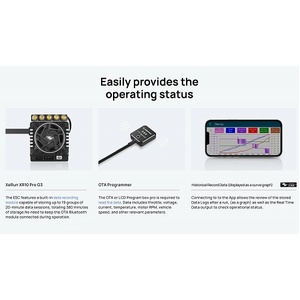

Connect to the HW Link app to analyze past sessions via graph or check real-time telemetry post-run, giving you the data you need to fine-tune for peak performance.

---

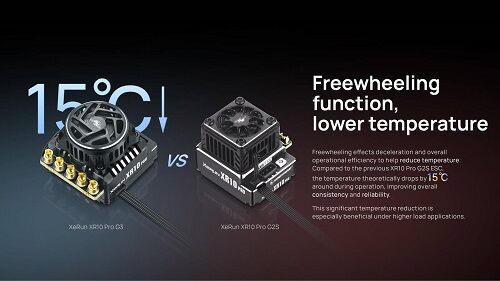

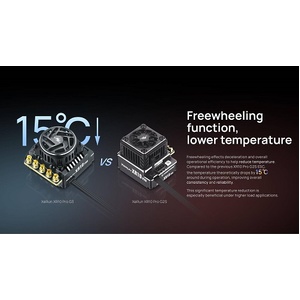

Enhanced Cooling with Freewheeling Technology

Smart freewheeling algorithms significantly reduce internal heat build-up and improve operational efficiency. Compared to the G2S, the G3 runs notably cooler, making it more consistent in high-load conditions—especially important for touring car and 4WD buggy classes.

---

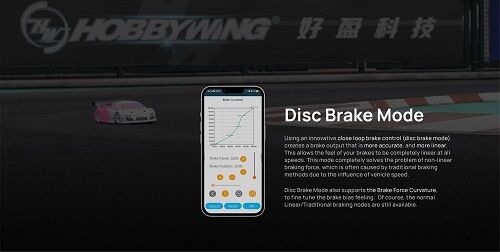

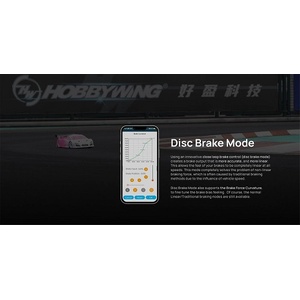

Advanced Braking with Disc Brake Mode

The G3 introduces Closed Loop Brake Control (Disc Brake Mode), offering:

• Ultra-linear braking at all speeds

• Elimination of traditional non-linear brake feel

• Adjustable Brake Force Curvature to tailor brake bias

Prefer the classics? Traditional linear braking modes are still available.

---

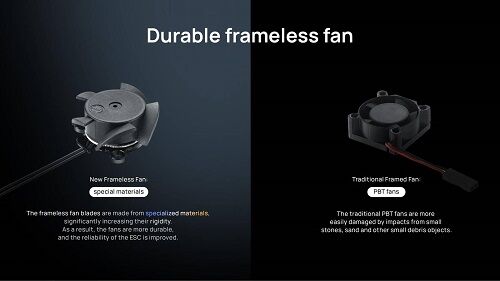

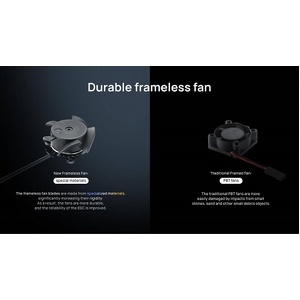

Rugged Frameless Fan Technology

The redesigned frameless fan blades are built from rigid, durable material to withstand impacts and extend fan life. A smart fan control system ensures the fan only activates when cooling is needed—quiet when idle, cool when it counts.

---

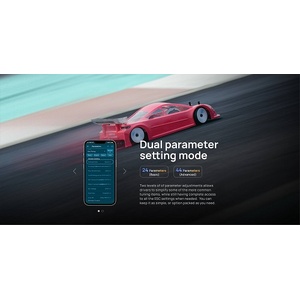

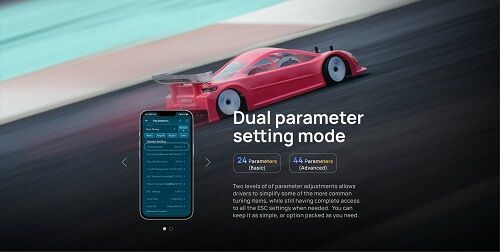

Simple or Advanced—Tuning Your Way

Choose between:

• Simplified tuning for common parameters

• Full-access tuning mode to dial in every setting for ultimate control

The dual-level interface offers flexibility for both new racers and experienced pros.

---

Optimized Layout & Soldering Options

The layout of the G3 has been carefully optimized for cleaner, simpler wiring, especially in tight on-road chassis.
It includes a set of U-shaped solder posts, allowing for flat or angled connections to suit your build.

---

High-Output Adjustable BEC

Equipped with a peak 10A adjustable BEC, the G3 is ready for even the most demanding servos.

• Voltage adjustable from 5.0V to 7.4V

• Fine-tuned in 0.1V increments

Perfect for modern high-torque or high-voltage servos—no additional power boosters needed.

---

Why Choose the XR10 Pro G3?

If you're chasing consistent lap times, smarter tuning options, and reliable, cool-running performance, the XR10 Pro G3 is the ultimate ESC for competitive RC racers. With intelligent features built in and unmatched Hobbywing reliability, the G3 is ready for your podium run.



SpecificationsType
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No

Specifications
Cont./Peak Current: 160A/1200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 5V-7.4V @6A

Wires & Connectors
Input Wires: Black-12AWG-200mm*2
Output Wires: Black-12AWG-200mm*3
Input Connectors: No
Output Connectors: No

Esc Programming Via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
OTA Programmer: Supported
Programming Port: Separate Program Port

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 35.0*33.6*30.3mm
Weight: 101.5g(w/Wires)

Applications
Applicaions: Sensored brushless motors / Sensorless brushless motors
Applicable Motor: XERUN V10 G4R/G3，Bandit G4
