Xerun XR10 Pro G3 ESC -  Black

ESC Upgrade for RCs

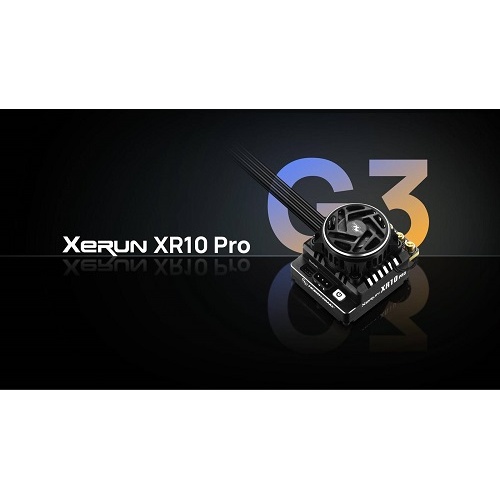

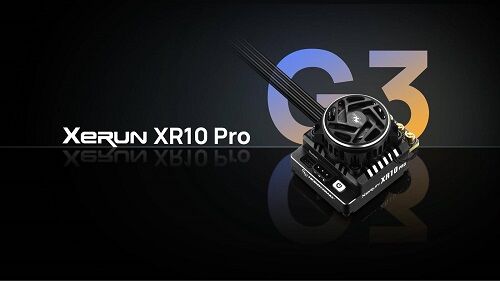

Hobbywing XERUN XR10 Pro Black G3

Engineered for elite-level modified racing, the XERUN XR10 Pro Black G3 ESC delivers ultra-smooth power, intelligent features, and unmatched control on the track.

---

Key Features

Optimized for Modified Racing
Purpose-built for competitive modified racing, the XR10 Pro Black G3 provides precise throttle response and customizable settings for serious drivers.

Polarity Protection
Integrated polarity protection guards your ESC from incorrect wiring. For full reverse voltage protection, a non-polarity capacitor is recommended.

---

Advanced Performance Features

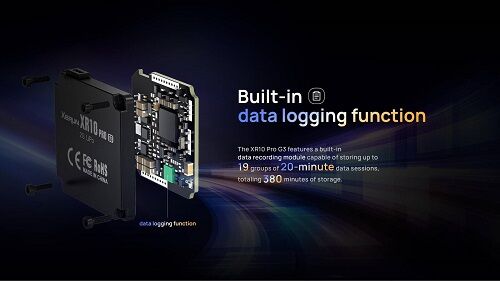

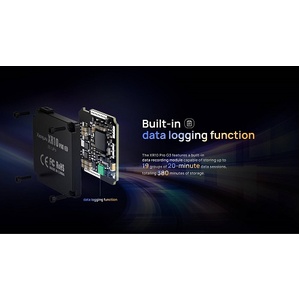

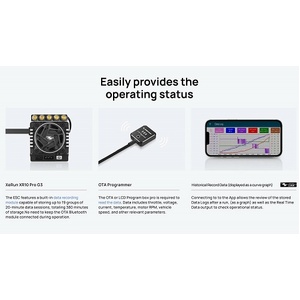

Built-In Data Logging
Capture up to 380 minutes of performance data with 19 sessions of 20-minute recordings—ideal for fine-tuning and post-race analysis.

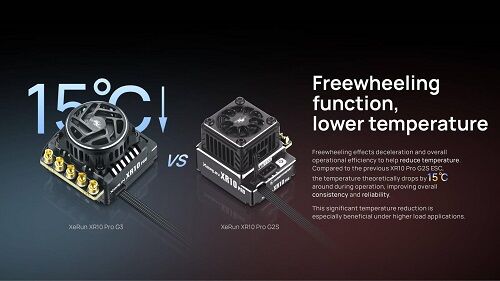

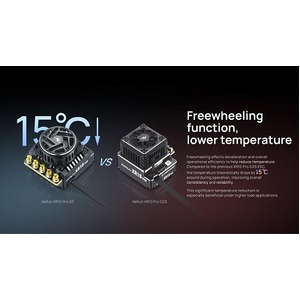

Freewheeling Technology
Enhances efficiency and reduces ESC temperature by up to 15°C compared to the previous model, ensuring consistent performance under high loads.

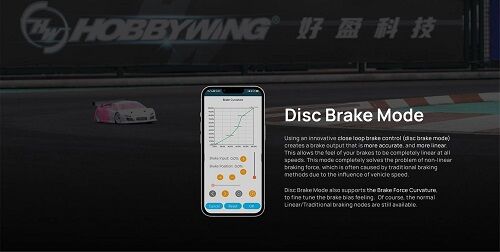

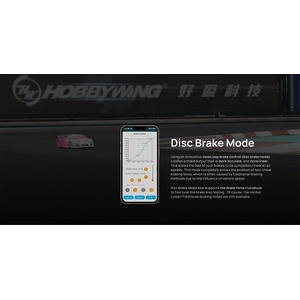

Disc Brake Mode
Enjoy smoother, more linear braking—especially in corners. Fine-tune the feel with the Brake Force Curvature adjustment for optimal control.

Smart Fan Control
The fan activates only when needed, reducing noise and power consumption. This feature can also be disabled through the ESC’s settings menu.

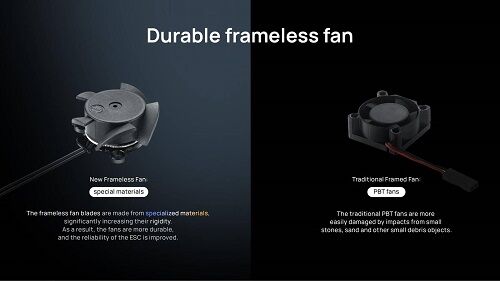

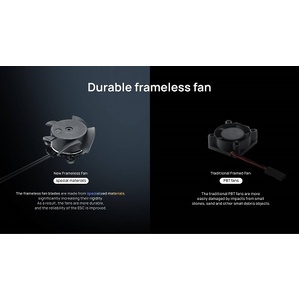

High-Durability Frameless Fan
Constructed from advanced materials for enhanced rigidity and lifespan, improving overall ESC reliability.

---

Customization & Compatibility

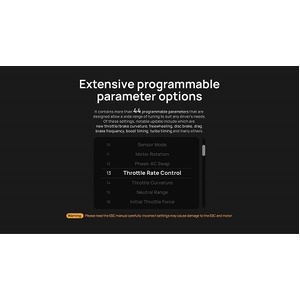

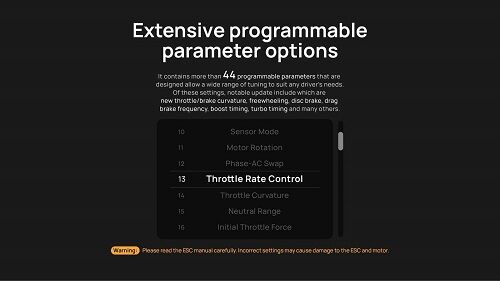

Dual-Level Parameter Settings
Easily adjust 24 basic and 44 advanced parameters, giving you the flexibility to either streamline your setup or dive into detailed tuning.

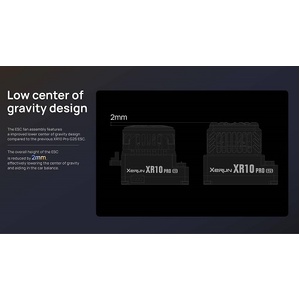

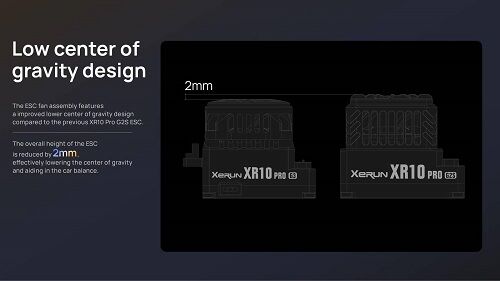

Low Center of Gravity
Redesigned with a 2mm lower profile, improving chassis balance for both on-road and off-road applications.

Adjustable Built-In BEC
Supports high-voltage servos with up to 10A output, adjustable between 5.0V and 7.4V, ensuring optimal servo performance under any condition.

---

Reverse Polarity Protection

The standard G3 version features reverse polarity protection to prevent damage from wiring errors.
⚠️ The G3X version (Titanium Gray) does not include this protection—use caution during installation.

---

Applications

Ideal for 1/10th scale touring cars, buggies, drift cars, F1, and rally vehicles.

---

Versions Available

• G3 (Black): 13AWG wires with reverse polarity protection

• G3X (Titanium Gray): 12AWG wires without polarity protection



Product Specifications

• Continuous/Peak Current: 160A / 1200A
• Input Voltage: 2S LiPo
• BEC Output: 5V-7.4V @6A (adjustable)
• Dimensions: 35.0 x 33.6 x 30.3mm
• Weight: 93g (G3), 101.5g (G3X)
