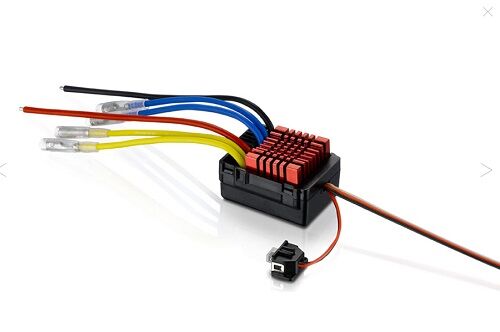

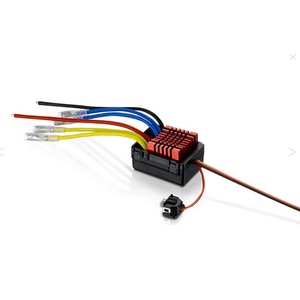

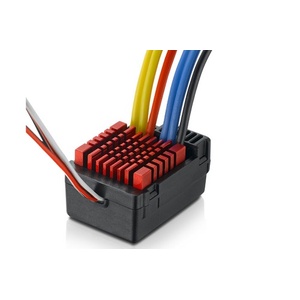

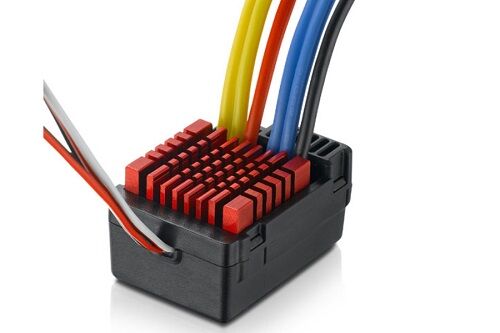

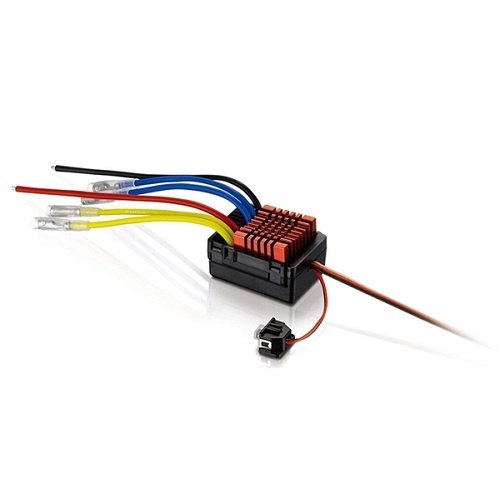

QUICRUN WP-880 Dual Brushed ESC

Built to handle dual brushed motor setups, the QuicRun WP-880 is the ideal ESC for large-scale or high-torque 1/10 and 1/8 RC vehicles that require simultaneous motor control. With two sets of output wires connected in parallel, it simplifies wiring for twin-motor platforms like dual-motor crawlers, tanks, and trucks.

---

Dual Motor Output – Simple & Synchronous

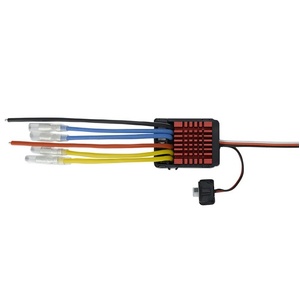

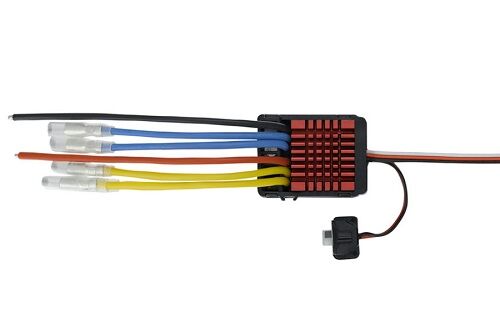

• Features two sets of output wires for connecting two motors simultaneously

• Perfect for vehicles that require synchronized motor control (e.g. tanks, dual-motor crawlers)

 Note: Motors must spin in the same direction. The outputs are wired in parallel and cannot be used for independent control.

---

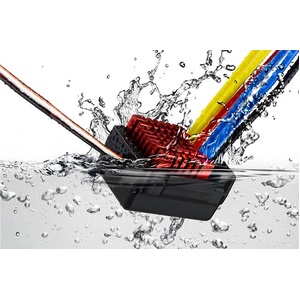

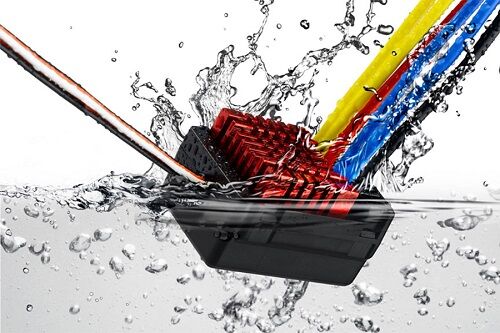

Waterproof & Dustproof (IP67 Rated)

Tackle mud, rain, snow, or sand with confidence — the fully waterproof and dustproof design ensures reliable performance in all weather conditions.

---

Fine-Tuned Driving Feel with Advanced Features

• Adjustable PWM frequency lets you tailor throttle response for smoother low-speed control

• Advanced DEO (Driving Efficiency Optimization) & Freewheeling technology deliver better throttle linearity and more natural driving feel

---

Excellent Drag Brake & Braking Performance

• Features fine-tunable drag brake rate, adjustable drag brake force, and brake strength

• Ideal for crawlers and trail rigs that require precise hill-hold and controlled descents

---

Programmable & Flexible

• Includes 15 programmable parameters for full tuning control

• Suited for various vehicle types and driving environments

• Program via the included PRG/FAN port using a LED Program Box (sold separately)

---

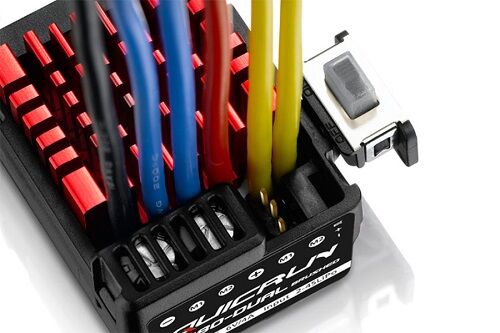

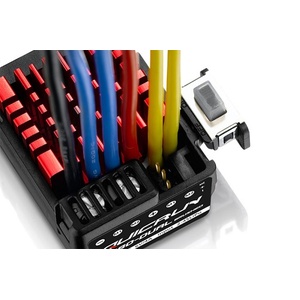

PRG/FAN Port for Versatile Expansion

• Connect a cooling fan for enhanced thermal performance

• Or use it to plug in a LED Program Box for easy ESC tuning at the field or workbench

---

Specifications:

Specification	Details
Type	Brushed ESC
Scale	1/10 – 1/8
Motor Output	Dual output (parallel wiring)
Waterproof	Yes (IP67 rated)
Continuous/Peak Current	80A / 400A
Input Voltage	2–3S LiPo / 5–9 cell NiMH
Programmable Items	15 parameters
PWM Frequency	Adjustable
BEC Output	Switch-mode BEC: 6V / 7.4V @ 4A (6A peak)
Programming Port	PRG/FAN Port

---

Engineered for Twin-Motor Power with Pro-Level Control

Whether you're building a heavy-duty crawler or a scale tank with dual motors, the Hobbywing QuicRun WP-880 Dual Brushed ESC gives you the power, weatherproof protection, and custom tuning needed for total control in any terrain.
