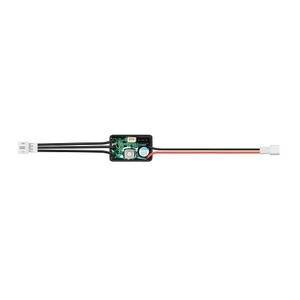

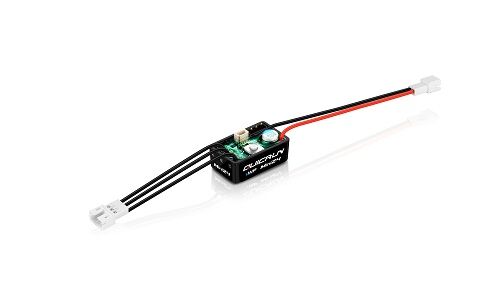

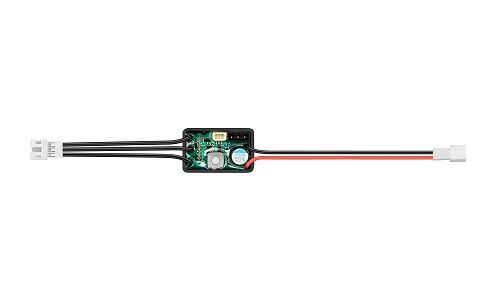

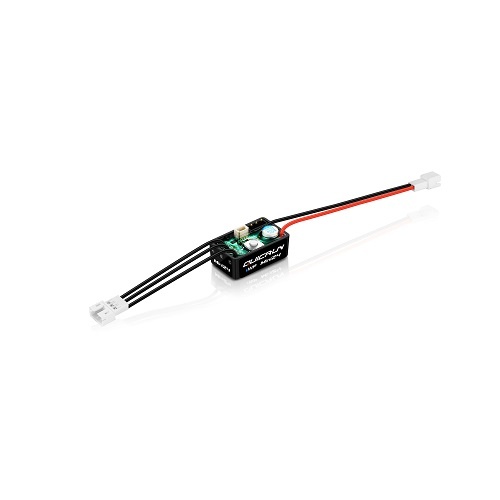

QUICRUN WP-MINI2

Brushless ESC Upgrade for RCs

---

Compact. Rugged. Ready for Adventure.

Designed specifically for 1/24, 1/18, and 1/16 scale crawlers, the QuicRun WP Mini24 delivers serious capability in a micro-sized package. Whether you're trail crawling, scaling indoor courses, or tackling backyard rock gardens, this ESC brings high-end features to the micro RC world—without the bulk.

---

IP67 Waterproof & Dustproof

Rain, dust, sand—bring it on. With IP67-rated protection, the Mini24 is built to handle the harshest micro crawling conditions without missing a beat.

---

Powerful & Programmable BEC

Don’t let the size fool you—this ESC features a switch-mode BEC with:

• Switchable voltage: 6V or 7.4V

• Peak current: Up to 6A

Perfect for driving today's high-torque, high-voltage micro servos with zero lag and smooth control.

---

Next-Gen Waterproof Electronic Switch

Forget the frustrations of old-school mechanical switches. The Mini24’s integrated waterproof switch is:

• Dustproof, impact-resistant, and sealed against moisture

• Immune to switch jamming, contact corrosion, or unexpected shutdowns due to vibration or crashes

---

Plug-and-Play Ready

• Output Connector: PH 2.0-3PIN (female) — compatible with HW and most common brushless motors

• Input Connector: PH 2.0-2PIN (female) — plug-and-play with Axial SCX24 and similar platforms
  No soldering, no mods—drop it in and hit the trail.

---

Dual Compatibility: Brushed & Brushless

Supports both brushed and brushless motors, giving you the flexibility to upgrade or swap setups without needing a new ESC.

---

Ideal For:

• Axial SCX24

• FMS FCX24, ROCHOBBY micro crawlers

• 1/16–1/24 scale custom crawler builds

• Indoor scale courses or outdoor trail action

---

What You Get:

A compact, reliable ESC built for hardcore micro crawling—packed with the kind of performance, protection, and convenience you'd expect from Hobbywing.



Type	Scale 1/24th, 1/18th,1/16th Brushed/Brushless Brushless,Brushed Sensored/Sensorless Sensorless Waterproof Waterproof
Specifications	Cont./Peak Current 25A/60A Input Voltage 2-3S Lipo BEC BEC Output 6V/7.4V adjustable, continuous current 2A (Switch mode)
Wires & Connectors	Input Wires Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1 Input Connectors Black-22AWG-60MMmm*3 Input Connectors PH2.0-2PIN Female Connector Output Connecotors PH2.0-3PIN Female Connector
ESC Programing via	SET Button on ESC Not Supported LED Program Box Supported LCD G2 Program Box/LCD PRO Supported OTA Programmer Not Supported Program Port Independent programming cable
Data Recording	Extreme value Not Supported Real-time Data Not Supported Historical data (Graph) Not Supported
Firmware	Firmware Upgrade Not Supported
Size & Weight	Size 28*17.8*13mm Weight 13.5g（including wires&connectors）
Applications	Motors Sensorless brushless motor, and brushed motor. Vehicles 1/24thVehicles，1/18th、1/16thCrawlers Applicable motors QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.
