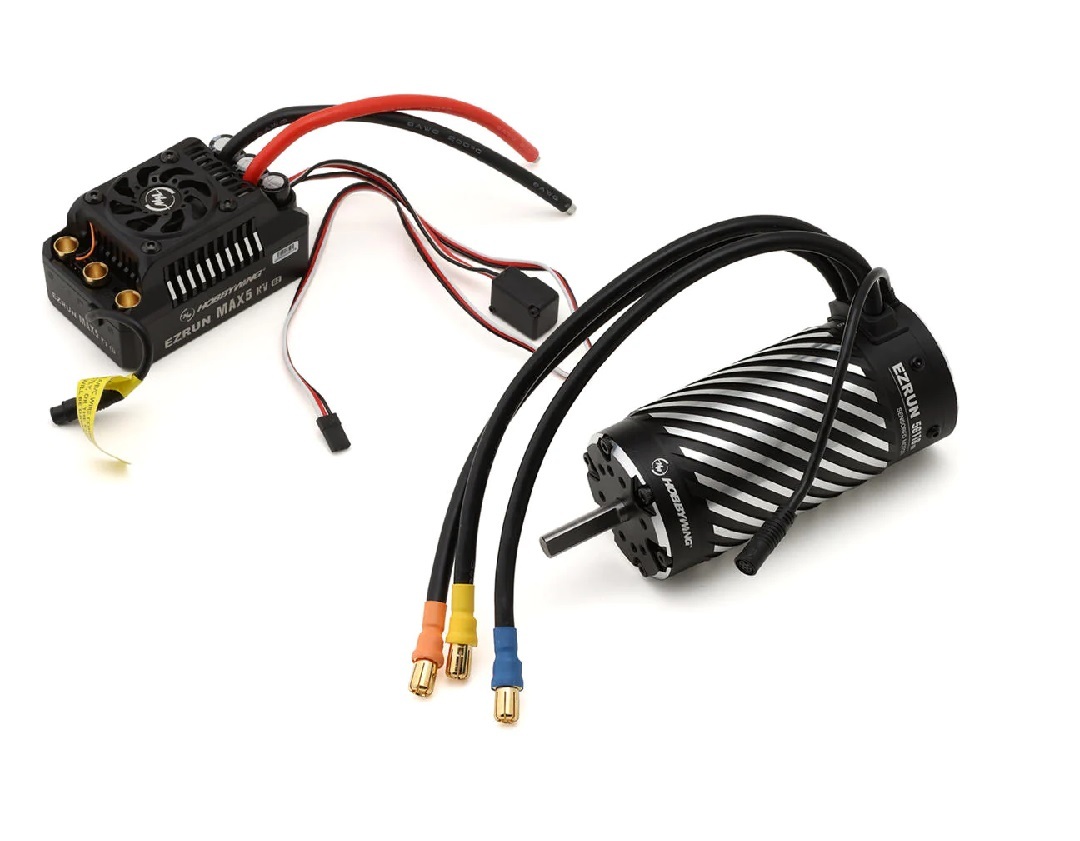

MAX5 G2 250A HV ESC & 56118SD G2 1100kV Sensored Brushless Motor Combo

MAX5 HV G2&56118SD-1100KV-G2 ESC & Brushless Motor Kit

SKU: TM0062


$699.00
RRP $999.00
In Stock




Calculate Shipping

MAX5 G2 250A HV ESC & 56118SD G2 1100kV Sensored Brushless Motor Combo

MAX5 HV G2&56118SD-1100KV-G2 ESC & Brushless Motor Kit

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 56118SD G2 Sensored brushless motor).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
Supports LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
Supports the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions
ESC Specifications:

Cont. Peak Current    250A / 1600A
Motor Type    Sensored / Sensorless Burshless
Application    1/5 Buggy, Truck
Motor Limit**
With 8S Lipo: KV < 1200
With 12S Lipo: KV < 800 56118 Motor Size

Lipo Cells    6-12 Lipo
BEC Output    6V/7.4V/8.4V Adjustable, Continious Current 8A (Switch Mode)
Cooling Fan    Stable 6V/7.4V/8.4V From Built In BEC
Size / Weight    94.5(L) x 59.4(W) x 50.9(H) / 428.5g (Included Wires)
Programming Port    INdependent Programming Port
Note *: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.

Motor Features:

Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor
Motor Specifications:

KV    1100kv
Lipos    8-12 Lipos
No Load Current    5.5A
Diameter / Length    Dia 56mm (2.2")
Length 119.2mm (4.69")
Shaft Dia / Length    Dia 8mm (.031")
Length 30mm (1.18")
Bearing Size    Front D22*D8*T7
Rear D19*D8*T6
Poles    4
Weight    1287g

3 Month Warranty

SKU TM0062
Barcode #
Brand Hobbywing
Shipping Weight 1.5100kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
