Quicrun WP-CRAWLER Brushed 80A ESC

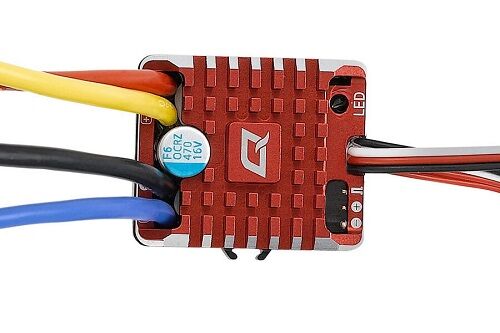

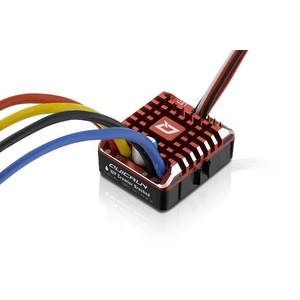

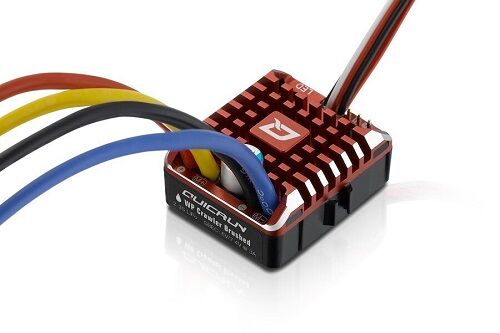

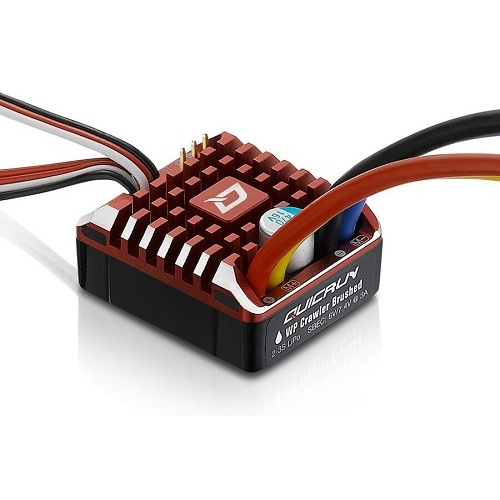

Hobbywing QuicRun WP Crawler Brushed ESC

Reliable. Tunable. Built for the Trail.

Designed specifically for 1/10th and 1/8th scale rock crawlers, the QuicRun WP Crawler Brushed ESC from Hobbywing combines rugged hardware with powerful, customizable software to deliver consistent and controlled crawling performance—on any terrain, in any weather.

---

Smart Performance, Fully Programmable

With 15 programmable parameters, including adjustable start force, drag brake rate, and brake force, you can fine-tune every aspect of your rig’s throttle and braking behavior. Hobbywing's innovative fine-tunable drag brake system sets a new benchmark for control on steep climbs and technical descents.

---

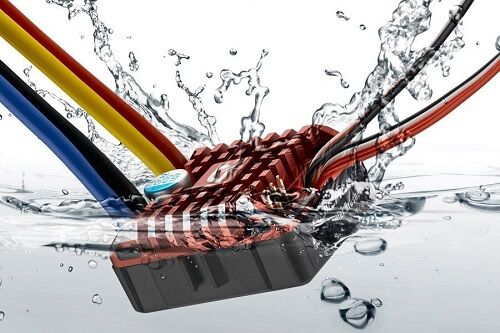

All-Weather Durability

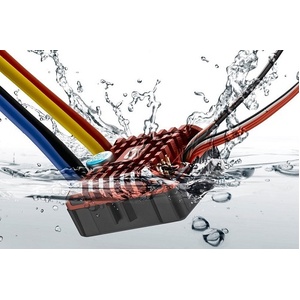

Thanks to its fully waterproof and dustproof design, the WP Crawler Brushed ESC handles mud, rain, snow, and sand with ease—letting you focus on the trail instead of the conditions.

---

Tailored for Crawlers

Built from the ground up for rock crawling, this ESC features:

• Advanced PWM frequency adjustment

• DEO (Driving Efficiency Optimization) & Freewheeling technology for ultra-smooth low-speed control

• A strong, switch-mode internal BEC with adjustable output (6V/7.4V @ 3A) to power high-torque servos with ease

---

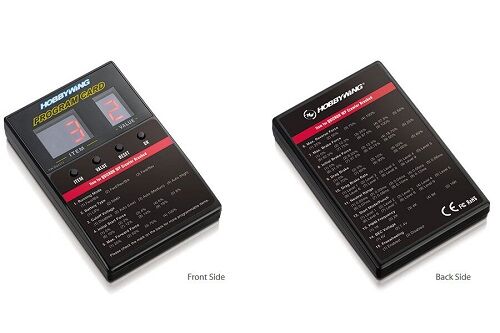

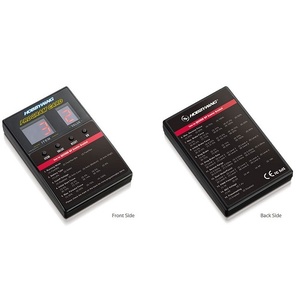

Easy Setup with Included LED Program Box

No need to purchase extras—the dedicated LED program box is included in the box, making it easy to adjust parameters right at the trailhead.

---

Key Features:

• Specially designed for 1/10th & 1/8th crawlers

• Fully waterproof and dustproof

• Fine-tunable drag brake for superior crawling control

• Adjustable PWM frequency for enhanced throttle response

• Switch-mode BEC: 6V/7.4V @ 3A

• 15 programmable parameters

• LED program box included

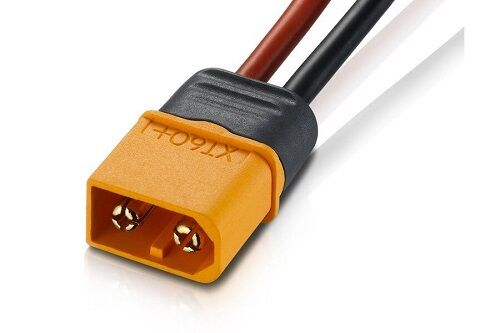

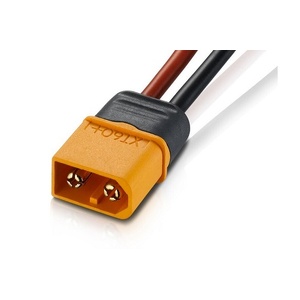

• XT60 battery connector pre-installed

• Separate programming/fan port

---

Specs:

• Scale: 1/10 & 1/8

• Continuous/Peak Current: 80A / 400A

• Input Voltage: 2–3S LiPo / 5–9 cell NiMH

• BEC Output: 6V/7.4V @ 3A (Switch Mode)

• Input Wires: Red & Black 14AWG (200mm)

• Output Wires: Blue & Yellow 14AWG (200mm)

• Connectors: XT60 input / bare wire output

• Dimensions: 36.2 x 31.6 x 17.0mm

• Weight: 58.5g (with wires)

---

Take Control. Crawl With Confidence.

Whether you're scaling rocks, navigating technical terrain, or crawling through mud and water, the QuicRun WP Crawler Brushed ESC delivers the control, durability, and customization that serious RC crawlers demand.
