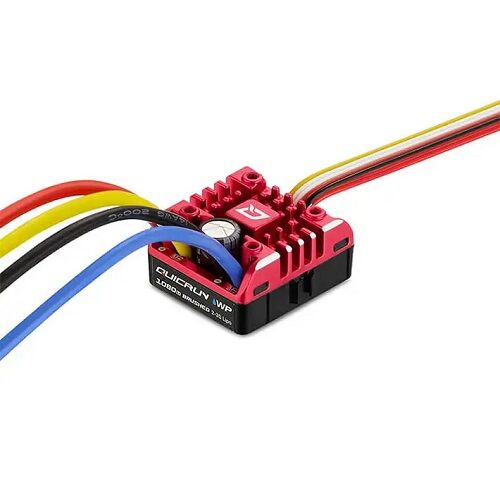

QUICRUN-WP-1080 G2-Brushed ESC

Real-Time Tuning. Ultimate Crawler Control. IP67 Waterproof.

The Hobbywing QuicRun WP1080 G2 isn’t just an upgrade — it’s a game-changer for 1/10 scale rock crawlers. As the first ESC in its class to feature a true “Car Mode”, it allows real-time motor direction switching through your transmitter’s AUX channel — giving you unmatched control on the trail and during technical maneuvers.

But that’s not all. You can now also adjust handbrake force on the fly via a second AUX channel, eliminating the need for external programming and giving you trail-tuned responsiveness right from your transmitter.

---

New in the G2 Version

• True Car Mode: Instantly reverse motor direction via transmitter AUX switch — perfect for tight crawls and competition driving.

• Live Handbrake Adjustment: Modify drag brake hold strength in real time.

• Upgraded BEC: Now adjustable to 6V / 7.4V / 8.4V, with 4A continuous and 6A peak output — ideal for high-voltage, high-torque servos.

---

Advanced Tuning for Serious Crawlers

With 15 adjustable parameters and over 90 fine-tuneable values, the WP1080 G2 offers deep customization for throttle control, drag brake feel, punch, and more — letting you build a driving feel that’s uniquely yours.

---

Rugged. Reliable. Ready for Anything.

Certified to IP67 waterproof standards, the WP1080 G2 is sealed and protected against water, mud, and dust. From stream crossings to dusty desert trails, this ESC is built to keep crawling in the harshest conditions.

---

Key Features:

• Designed for 1/10 rock crawlers

• Real-time motor direction switch via AUX channel

• Adjustable handbrake force on-the-fly

• Upgraded 6V/7.4V/8.4V BEC @ 4A (6A peak)

• Fully waterproof & dustproof (IP67 rating)

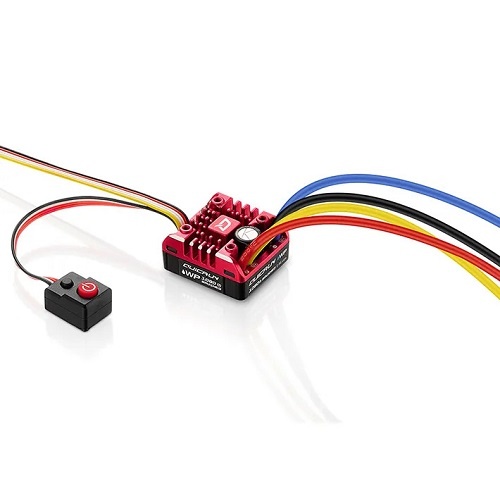

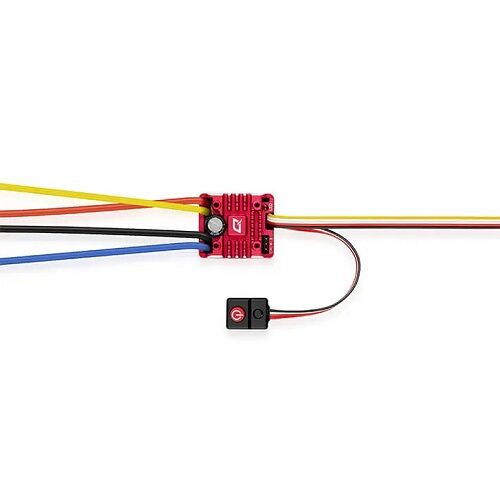

• 15 programmable parameters via programming box (sold separately)

• XT60 battery connector pre-installed

• Compact, lightweight, and durable

---

Technical Specifications:

Specification	Details
ESC Type	Brushed
Scale	1/10 Rock Crawler
Continuous/Peak Current	80A / 400A
Input Voltage	2–3S LiPo / 5–9 cell NiMH
BEC Output	Switch Mode: 6V / 7.4V / 8.4V @ 4A (6A peak)
Battery Connector	XT60 (pre-installed)
Dimensions	37.2 x 31.9 x 18.4 mm
Weight	70.2g
Waterproof	Yes (IP67 Certified)

---

Crawl Smarter, Not Harder.

With real-time control, pro-level adjustability, and proven durability, the QuicRun WP1080 G2 is more than just an ESC — it's the brain behind your rig’s precision and performance.
