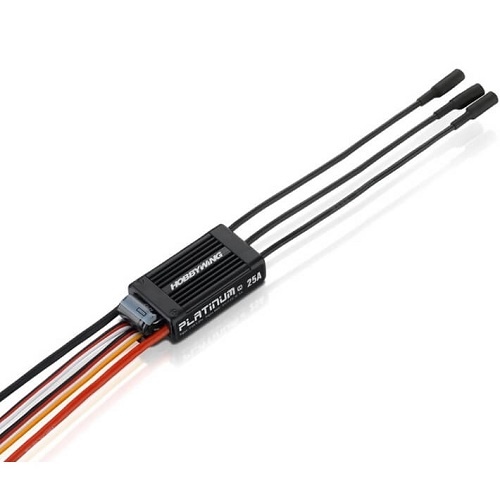

Platinum 25A 6S V4 ESC

Smooth Throttle | Intelligent Governor | Multi-Platform Support

The Platinum V4 25A sets a new benchmark for compact ESCs in the sub-250 class segment. Designed for 250-class helicopters (200–300mm blades), fixed-wing aircraft, and multirotors, this ESC delivers outstanding control precision, advanced protection features, and professional-grade programmability—all in a lightweight, space-saving form factor.

Key Features:

DEO Technology (Driving Efficiency Optimization)

• Enables ultra-smooth throttle response and linear control feel

• Significantly improves efficiency, reduces heat, and extends flight times

• Enhances flight stability across platforms

Three Advanced Governor Modes

• Supports External Governor, Store Governor, and Elf Governor

• Maintains stable rotor speed during load changes for precise control in 3D heli flights

High-Performance Built-In BEC

• Switch-mode BEC: 6V / 7.4V selectable

• 3A continuous / 7A peak output to power flight controllers, servos, or auxiliary gear

• No need for external regulators on most builds

Fully Programmable via WiFi or LCD Box

• Use the Hobbywing WiFi Express module for wireless tuning via your smartphone

• Or adjust settings with the Hobbywing LCD Program Box

• Fine-tune parameters such as brake mode, throttle response, governor behavior, and more

Multiple Protection Features

• Low-voltage cutoff

• Overload protection

• Throttle signal loss (fail-safe)

• Thermal protection
  These safety systems ensure longevity and protect against failure during demanding conditions

---

Specifications:

Parameter	Specification
Type	Brushless ESC
Continuous/Peak Current	25A / 40A
Input Voltage	3–6S LiPo
BEC Output	6V / 7.4V @ 3A continuous / 7A peak
Governor Modes	External, Store, Elf
Programming	WiFi Express / LCD Program Box
Wires	16AWG solid input wires
Dimensions	47 × 22 × 10 mm
Weight	27g
Supported Platforms	250-class Helicopters, Fixed-Wing, Multirotors

---

Ideal for:

• 250-class electric helicopters (200–300mm blades)

• Lightweight aerobatic or sport fixed-wing aircraft

• Small to medium multirotors needing precision throttle control

• Pilots who value programmability, smooth startup, and BEC flexibility in a small ESC

---

Compact. Capable. Complete Control.

The Platinum V4 25A may be small, but it packs the performance and flexibility to match far larger systems. Whether you're pushing your 250 heli to its limits or building a sleek multirotor, this ESC ensures responsive power, intelligent governor control, and bulletproof safety features in every flight.
