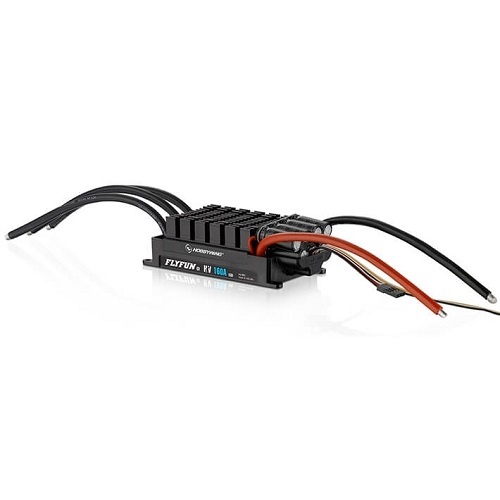

FLYFUN 160A HV Opto V5 ESC

Brushless ESC for RCs

SKU: TR9790


$329.95
RRP $659.90
In Stock




Calculate Shipping

FLYFUN 160A HV Opto V5 ESC

Here’s a refined, professional product listing for the Hobbywing FlyFun Series ESCs, specifically tailored to appeal to RC aircraft enthusiasts — from sport flyers to EDF jet pilots — while clearly explaining the advanced features and benefits:


Hobbywing FlyFun V5 Series ESCs – Precision Control for Fixed-Wing Aircraft

High-Performance ESCs for Sport Planes, EDF Jets, and High-Power Setups

The FlyFun V5 series from Hobbywing delivers cutting-edge technology, reliability, and customizability for discerning RC pilots. Whether you're flying a prop-driven warbird, a high-speed EDF jet, or a complex aerobatic plane, the FlyFun series offers the performance, protection, and tuning flexibility you need.


DEO Technology – Smoother Response, Greater Efficiency

Hobbywing’s exclusive DEO (Driving Efficiency Optimization) and Active Freewheeling technology provides:

  • Faster, smoother throttle response

  • Improved flight stability and control feel

  • Lower ESC temperature, reducing thermal stress on components

  • Increased power efficiency for longer flight times and more consistent performance


Advanced Soft Start & Brake Modes

The soft-start algorithm is optimized for both fixed-wing props and EDF jets, ensuring smooth, safe spool-up and reduced mechanical stress on the drivetrain.

Multiple braking options include:

  • Normal Brake Mode – with adjustable braking force

  • Proportional Brake Mode – brake force varies with throttle stick position

  • Reverse Brake Mode – simulates full-scale landing by reversing prop thrust to reduce rollout distance (Note: not available on FlyFun 130A/160A HV OPTO V5)

  • Brake Disabled Mode – for freewheeling glide


High-Power BEC for Demanding Electronics

Equipped with a switch-mode BEC offering:

  • 8A continuous / 20A peak output

  • Adjustable output voltage: 5.2V / 6.0V / 7.4V

  • Capable of powering high-voltage servos, flight controllers, LED systems, and other onboard electronics


Robust Protection Features

To ensure safe, reliable operation, the FlyFun V5 ESC includes comprehensive protection against:

  • Startup errors

  • Over-current conditions

  • ESC and capacitor overheating

  • Signal loss (Fail-Safe)

  • Overload and abnormal voltage inputs

These features help extend the life of both the ESC and connected components.


Advanced Microprocessor & Premium Build

  • 32-bit high-performance microcontroller ensures fast, precise response

  • Imported components and ultra-low impedance PCB for higher current handling and thermal efficiency

  • Optimized casing design improves cooling and adds a refined, durable look


Customizable Programming Options

  • Fully programmable for a wide range of fixed-wing aircraft

  • Easily adjusted via transmitter stick programming or Hobbywing LED Program Box (sold separately)

  • Fine-tune parameters such as brake mode, timing, cutoff voltage, motor direction, and more


Available Versions

  • Regular and High-Voltage (HV) models

  • Current ratings to match your setup — from sport flyers to high-power EDFs


Fly Smarter. Fly Smoother. FlyFun.

From effortless starts to precision throttle control and industry-leading efficiency, the Hobbywing FlyFun V5 series ESCs are engineered for pilots who demand top-tier performance with dependable protection and fine-tuned customization.

SpecificationsType
Brushed/Brushless: BL
High Voltage/Regular HV

Specifications
Cont./Peak Current: 160A/200A
Input Voltage: 6-14S LiPo
BEC Output: No

Wires & Connectors
Input Wires: Red-10AWG-150mm*1 / Black-10AWG-150mm*1
Output Wires:Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No

Esc Programming Via
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Seperate Program Wire


Firmware
Firmware Upgrade: Not Supported

Size & Weight
Size:110x50.3x33.3mm
Weight: 221.5g

Application:Aircraft/Heli

3 Month Warranty

SKU TR9790
Barcode # 9351634088768
Brand Hobbywing
Shipping Weight 0.2210kg
Shipping Width 0.110m
Shipping Height 0.033m
Shipping Length 0.050m
Shipping Cubic 0.000181500m3
Unit Of Measure ea
