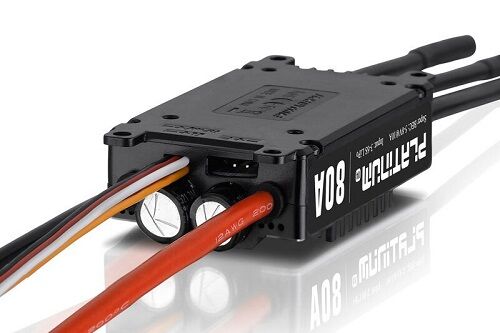

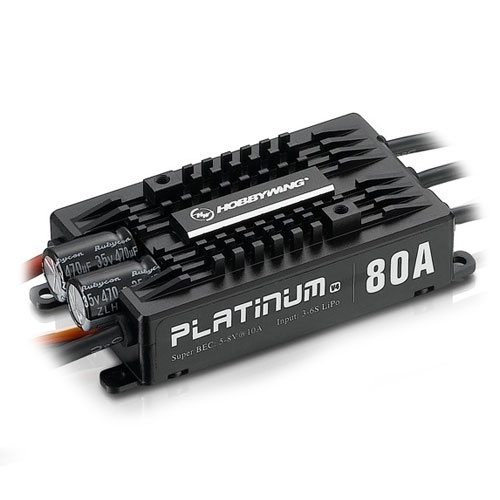

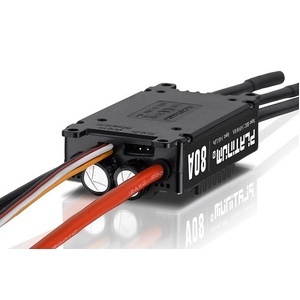

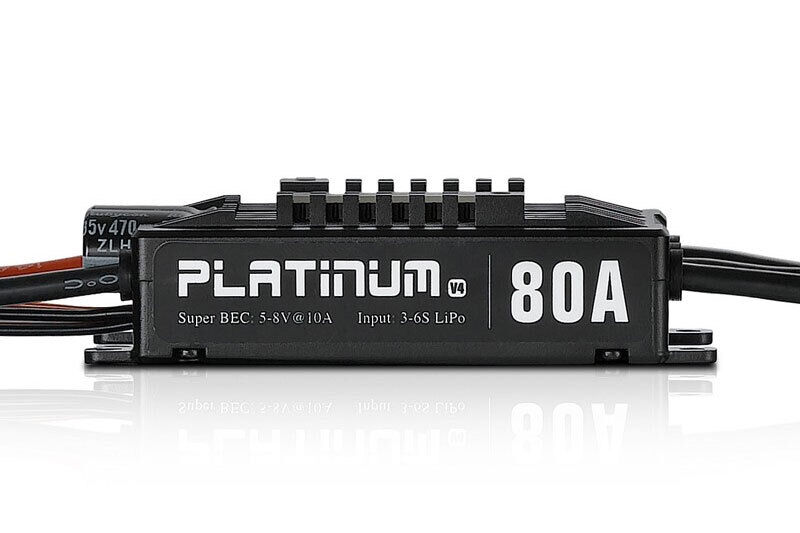

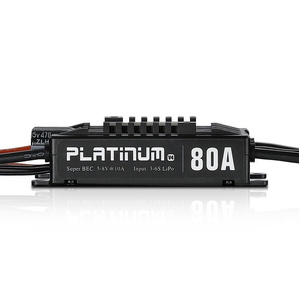

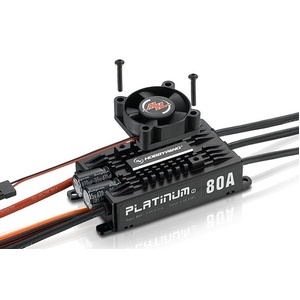

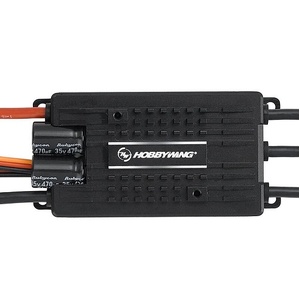

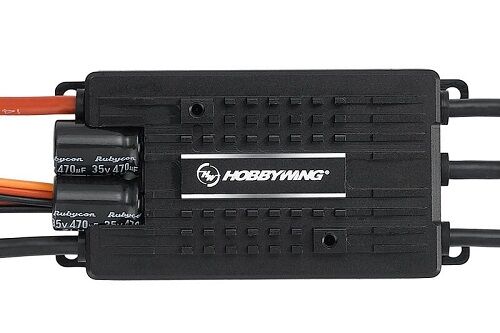

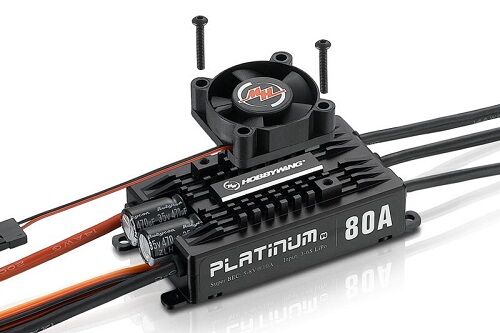

Platinum 80A V4 ESC

Advanced Speed Control | Ultra-Smooth Start-Up | Intelligent Governing

The Platinum V4 series is engineered for pilots who demand precise throttle control, robust power delivery, and rock-solid reliability. With features tailored for 3D helicopters and advanced fixed-wing aircraft, this ESC series delivers a superior flight experience backed by industry-leading technology.

---

Super Soft Start-Up – Precision Takeoff, Every Time

• Ultra-smooth spool-up prevents tail drift and torque wobble in helicopters

• Adjustable start-up time: 8 to 25 seconds, ideal for scale and 3D heli setups

• Guarantees consistent, gentle motor ramp-up, protecting both drivetrain and rotor head

---

Advanced Governor & RPM Management

• 72MHz 32-bit processor ensures ultra-fast response and precise RPM control

• Sophisticated speed-governing algorithm for stable head speed across maneuvers

• Fully adjustable governor settings for perfect tuning to your motor and gear ratio

---

High-Output Built-In BEC (High Voltage Ready)

• Switch-mode BEC with output voltage adjustable between 5V to 8V

• 10A continuous / 25A peak output capacity

• Easily powers HV servos, flybarless systems, and auxiliary electronics without additional regulators

---

DEO Technology – Ultra-Efficient Performance

Hobbywing’s DEO (Driving Efficiency Optimization), also known as Active Freewheeling, provides:

• Lightning-fast throttle response

• Increased flight time due to higher efficiency

• Cooler ESC operation for greater reliability under sustained loads

---

Programming & Data Logging Made Easy

• Dedicated program port enables fast access to tuning and data

• Use with Hobbywing LCD Program Box, WiFi Module, or Mobile App (iOS/Android)

• Access and update:

  • Flight data: min voltage, max temp, RPM, speed curves

  • ESC firmware upgrades

  • Full parameter adjustments

---

Four Brake Modes for Total Control

• Brake Disabled – free-spinning glide

• Normal Brake – fixed braking force (adjustable)

• Proportional Brake – brake strength varies with throttle position

• Reverse Brake – change motor rotation direction via transmitter AUX channel
  Perfect for multi-use setups including EDF jets, aerobatic planes, and 3D helis

---

Multiple Safety Protections Built In

• ESC Overheat Protection

• Capacitor Thermal Protection (Hobbywing patented)

• ESC Overload Protection

• Throttle Signal Loss / Failsafe Detection

• Low Voltage Cutoff
  These ensure safe, reliable operation and extend component life, especially in demanding flight conditions.

---

Why Choose the Platinum V4 Series?

Feature	Benefit
Super Soft Start-Up	Prevents drivetrain stress and tail drift
Governor with 72MHz Processor	Consistent, accurate RPM control
8V Adjustable BEC (25A Peak)	Powers HV servos and onboard electronics
DEO Technology	Longer flights, cooler temps, better response
4 Brake Modes	Ideal for various aircraft types and flight styles
Dedicated Programming Port	Simplifies tuning, data reading, and updates

---

Take Full Command of Every Flight

Whether you're flying a hardcore 3D heli, a scale turbine model, or a high-performance EDF, the Platinum V4 series delivers the control, protection, and smoothness elite pilots demand. Fly smarter. Fly Platinum.



SpecificationsType
Brushed/Brushless: BL
High Voltage/Regular Regular

Specifications
Cont./Peak Current: 80A/100A
Input Voltage: 3-6S LiPo
BEC Output: Switch Mode:5-8V,10A

Wires & Connectors
Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Input Connectors: No
Output Connectors: 4.0mm Gold Connectors (Female)

Esc Programming Via
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
OTA Programmer: Supported
Program Port: Seperate Program Wire

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 84.3x38.2x20.4mm
Weight: 97g

Application: 450L-500 Class Heli (Main Blade: 380-470mm)/.70 Class Fixed-wing Airplane 3D/EDF (with Diameter≦75mm)
