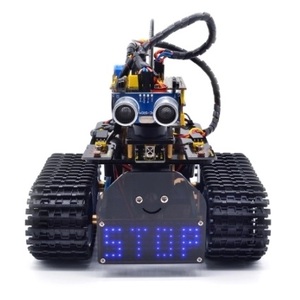

Mini Tank Bluetooth Arduino Project Robot Kit

Features Ultrasonic, Line Trace and Bluetooth Functions

This DIY Arduino based robot kit is based on Arduino Uno development board. It is based on a 2 drive track platform integrated with an ultra-sonic sensor to avoid obstacles.

Features a HM-10 Bluetooth Module which enables control via an APP (iOS and Android); an ultrasonic sensor for obstacle avoidance; photo resistor for light following functions and an infra-red receiver module for line tracer function and an infra-red remote controller for manual remote control.

It also has an 8 x 16 LED panel for emoticon and other programmed visual displays. Come complete with all necessary components and hardware and is supplied with a step by step instruction maual for assembly. This platform is upgradable and can replace, upgrade and expand the input sensors and add other functionality by adding other modules. You are limited by your imagination. Easy platform to assemble and is a fun way to get into Arduino and robotics.

Features:

1.Multi-purpose: Obstacle avoidance, follow, IR remote control, Bluetooth control, light following, ultrasonic follow and displayed face emoticons.
2.Simple assembly: No soldering circuit required, complete assembly easily.
3. High Tenacity：Aluminum alloy bracket, metal motors, high quality wheels and tracks.
4. High extension: expand other sensors and modules through motor driver shield and sensor shield
5. Multiple controls: IR remote control, App control(IOS and Android system)
6.Basic programming：C language code of Arduino IDE.

Specifications:

• Working voltage: 5v

• Input voltage: 7-12V

• Maximum output current: 2A

• Maximum power dissipation: 25W (T=75℃)

• Motor speed: 5V 200 rpm/min

• Motor drive mode: dual H bridge drive (L298P)

• Ultrasonic induction angle: <15 degrees

• Ultrasonic detection distance: 2cm-400cm

• Infrared remote control distance: 10 meters (measured)

• Bluetooth remote control distance: 50 meters (measured)
