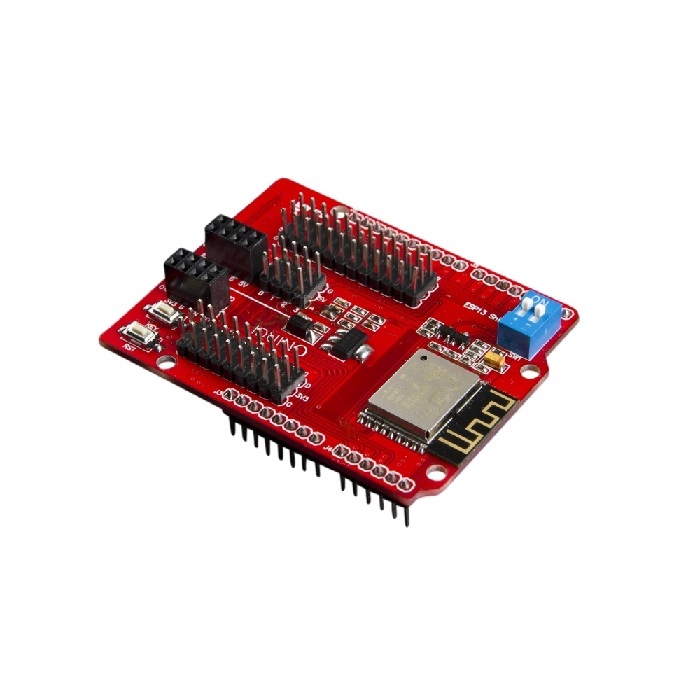

Wi-Fi Wireless Shield for Arduino Projects

Add Wireless Connectivity to your Arduino Projects

Add Wi-Fi funtionality to your Arduino projects with this Arduino Wi-Fi Shield. Simply plugs on top of your development board allowing you to connect to your PC or Router wirelessly.

Technical Specifications

• 802.11 b / g / n wireless standards;

• STA / AP modes support ;

• TCP / IP protocol stack, One socket;

• Supports standard TCP / UDP Server and Client;

• Supports serial port baud rate configuration: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps;

• Supports serial data bits: 5/6/7/8 bits;

• Supports serial parity: none;

• Supports serial stop bits: 1/2 bit;

• Pin-compatible with Arduino UNO, Mega;

• Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13;

• ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX;

• KEY button: modes configuration;

• Dual-Ports DIP switches: switching Arduino and ESP8266;

• WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode: <200uA;

• Serial WiFi transmission rate: 110-460800bps;

• Temperature: -40℃ ~ + 125 ℃;

• Humidity: 10%-90% non-condensing;

• Weight: about 20g (0.7oz);



Library Files (Click below to download)
