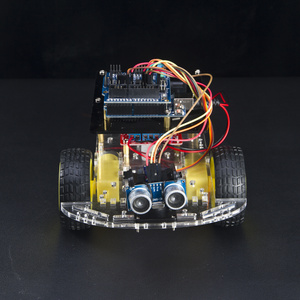

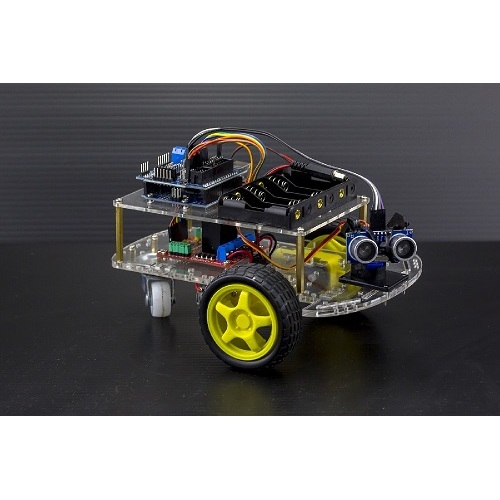

2 Wheel Drive Ultrasonic Arduino Projects Robot Kit

Do it yourself Arduino based Robot kit

This DIY Arduino based robot kit is based on Arduino Uno development board. It is based on a 2 wheel drive platform integrated with an ultra-sonic sensor to avoid obstacles. Come complete with all necessary components and hardware and is supplied with a step by step instruction maual for assembly. This platform is upgradable and can replace, upgrade and expand the input sensors and add other functionality by adding other modules. You are able to add remote control functionality by adding Bluetooth or RF modules. You are limited by your imagination. Easy platform to assemble and is a fun way to get into Arduino and robotics.

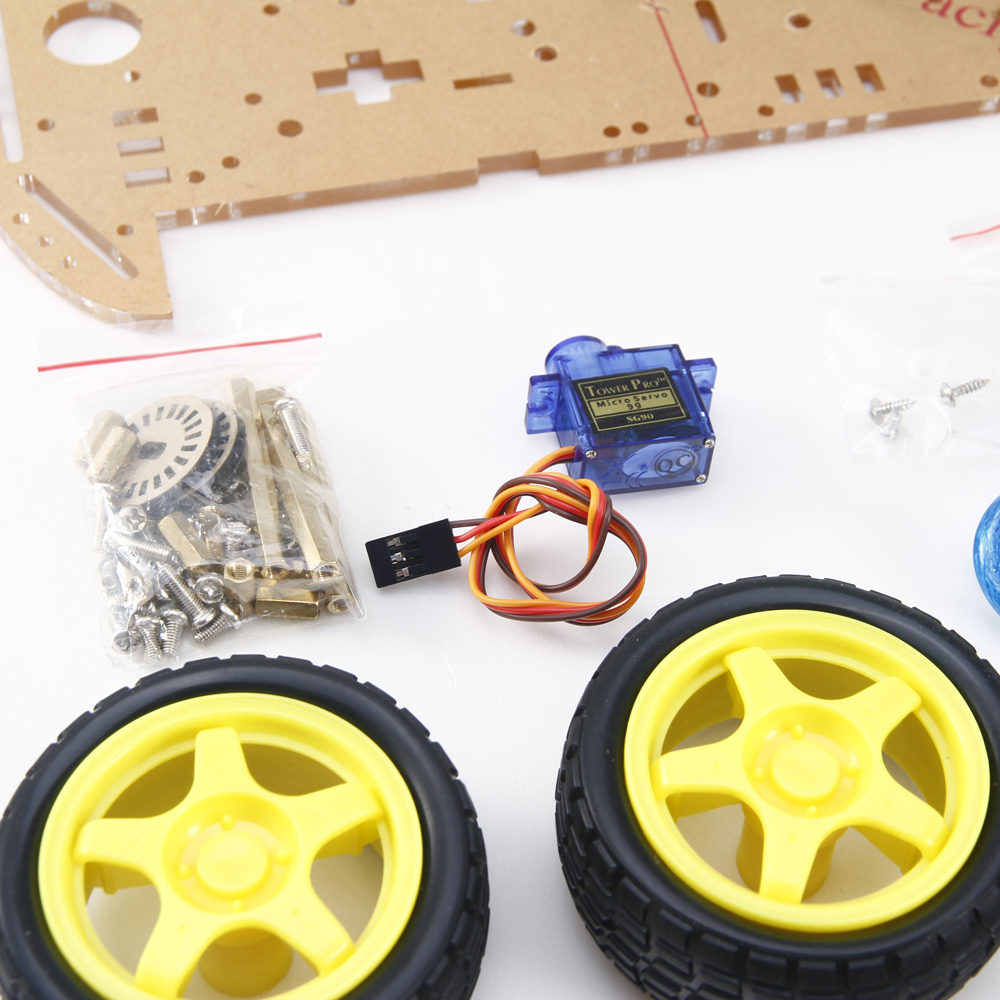

Component list

• IDUINO UNO R3 *1
• L298N motor driver board x1
• Arduino sensor extension board x1

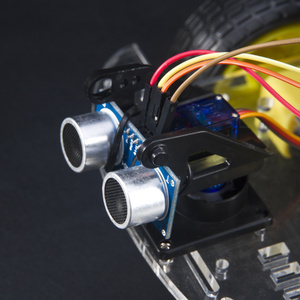

• Ultrasonic module x1
• SG90 servo*1
• Car chassis x2
• Car Wheels x2
• DC Gear Motor(1:48) x2
• Jumper Cables x10
• Metal Brackets for motor x 2
• Universal wheel x1
• 6 x AA battery box x1
• Several screw nut
• Servo holder x1

​Rotary Encoders are not included.

User Manual (Click below to download)
***Please note the Acrylic Fasteners as shown on page 9 are no longer suppled. Stronger sturdier Metal Brackets have replaced these brackets. User manual to be updated shortly***

  Please click guide book for Metal Bracket reference

Code (Click below to download)
