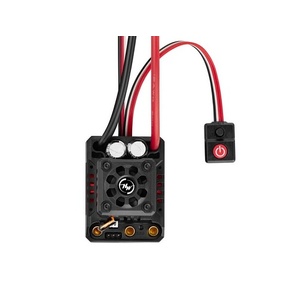

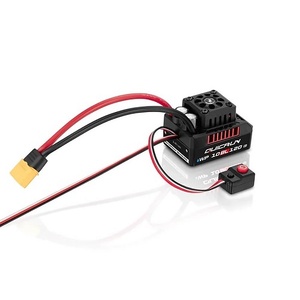

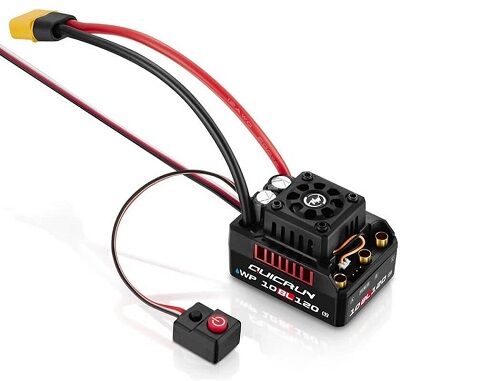

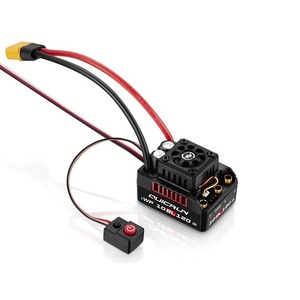

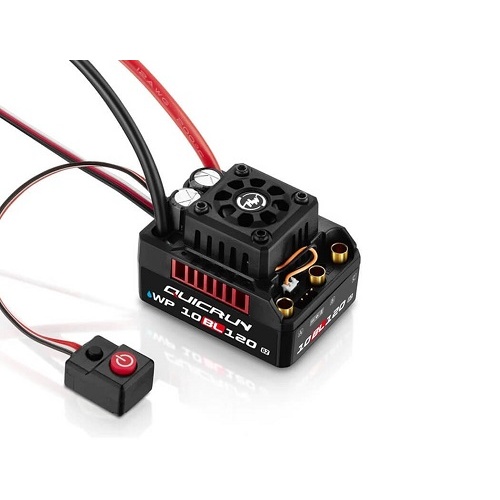

HOBBYWING QUICRUN WP 10BL120 G2 Brushless Sensorless ESC

Brushless ESC Upgrade for RCs

Features

IP-rated Waterproof & Dustproof Design
Run with confidence in mud, snow, rain, or loose terrain. Built to handle extreme environments with no compromises in performance.
Smart Freewheeling Technology
Advanced drive algorithms deliver higher efficiency and cooler temps, even under full throttle—resulting in smoother power delivery and increased ESC lifespan.
Beefy Internal BEC
Powerful switch-mode BEC provides a continuous 5A (10A peak) at 6V or 7.4V, perfect for today's high-torque and high-voltage servos—no external BEC needed.
Built-In Protection Systems
Stay protected with multiple layers of safety:
- Low Voltage Cutoff (LVC)
- ESC Overheat Protection
- Throttle Signal Loss Protection
- Current Overload Protection
- Capacitor Temperature Protection
Dedicated Programming Port
Easily tune your setup without removing the throttle cable from the receiver. Just plug in your program card and tweak on the fly.

Specifications

Continuous / Peak Current: 120A / 760A
Motor Compatibility: Sensorless & Sensored Brushless Motors (Sensorless mode only)
Applications: 1/10 Short Course Trucks, Monster Trucks
Motor Limits:
- 3S LiPo: < 4000KV (3660-size motor)
- 4S LiPo: < 2600KV (4268-size motor)
LiPo Support: 2S–4S LiPo
BEC Output: 6V / 7.4V (Adjustable), 5A Continuous (Switch-mode)
Cooling: Internal fan powered by BEC
Size: 52.8 x 39.8 x 38.2mm
Weight: 119g (with wires and connectors)
Programming Port: Independent

Before use, carefully read the instruction manual. Improper setup or misuse can result in damage to your ESC and vehicle. Make sure:

All solder joints are clean and secure—use a high-quality soldering station.
You operate within specified limits (voltage, motor KV, temp).
The battery is disconnected after each run to prevent deep discharge and damage.

While this ESC includes multiple layers of protection, safe and responsible use is essential for long-term performance.

3 Month Warranty
