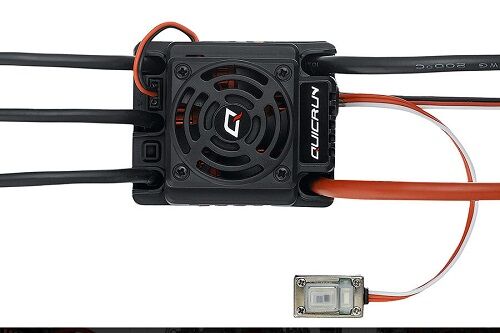

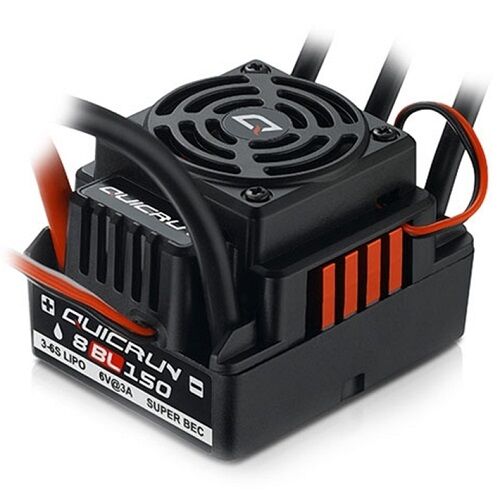

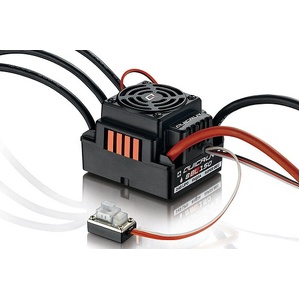

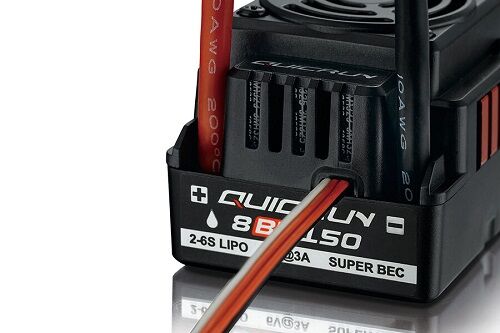

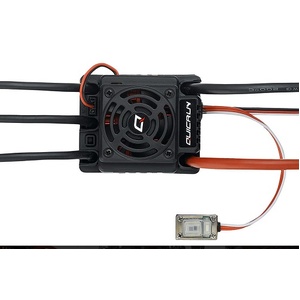

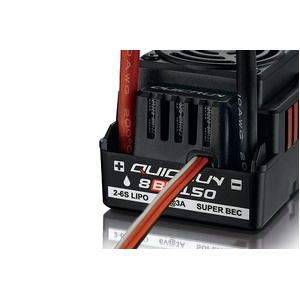

QUICRUN-WP-8BL150 Brushless ESC

Brushless ESC Upgrade for RCs

---

Reliable, Rugged, and Ready for Action

Built for 1/8-scale buggies, truggies, monster trucks, and short course trucks, the QuicRun WP-8BL150 is the perfect ESC for beginner to intermediate RC drivers looking for dependable performance without complex setup. Whether you're bashing in the backyard or tearing up the track, this ESC delivers smooth throttle control, all-weather protection, and efficient cooling in a durable, no-fuss design.

---

IP67 Waterproof & Dustproof

Designed for true all-weather driving, this ESC can handle mud, rain, snow, and sand without breaking a sweat. No need to worry about the elements slowing you down.

---

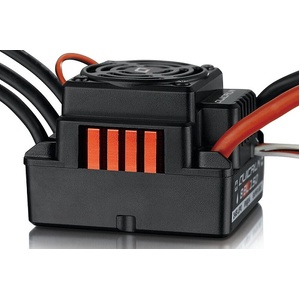

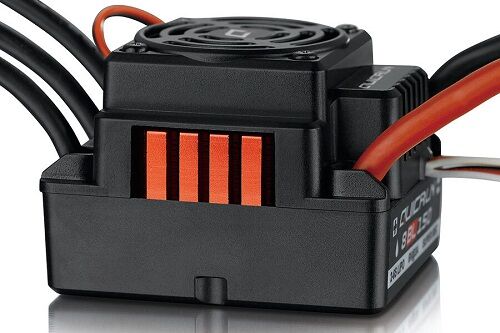

Advanced Cooling System

• Patented heat-conductive copper bar transfers heat away from the power board

• CNC-machined aluminum case maximizes surface area

• Reticulate heat sink and high-performance fan work together to keep temps low—ensuring stable output, longer life, and consistent performance

---

Simple Setup, Wide Compatibility

Forget complicated tuning. The QuicRun WP-8BL150 offers:

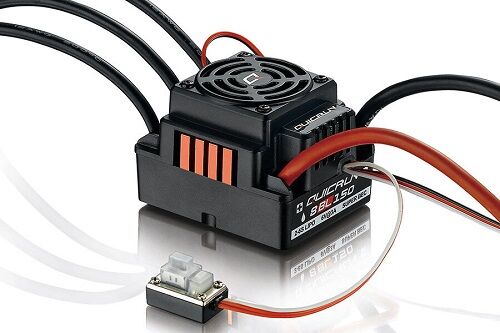

• Single-button programming and factory reset

• Plug-and-play operation for most 1/8 brushless setups

• Supports sensorless brushless motors and wide input voltages (3–6S LiPo / 9–18 cell NiMH)

---

Integrated Switch-Mode BEC

• BEC Output: 6V @ 3A

• Ideal for running standard servos in off-road builds

• Supports a wide variety of steering systems and electronics

---

Built-in Protections

• Low-voltage cutoff

• Thermal protection

• Signal loss fail-safe

• Designed to keep your rig running reliably and protect components from overload

---

Key Features

• Waterproof & Dustproof (IP67 rated)

• 150A Continuous / 950A Peak Current

• Easy programming via LED Program Box (sold separately)

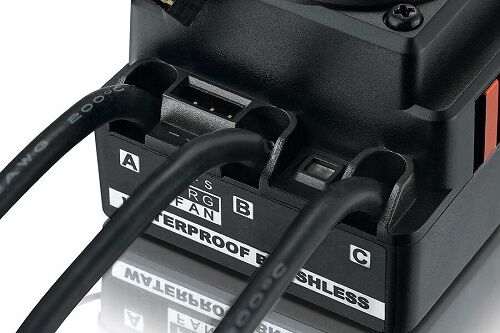

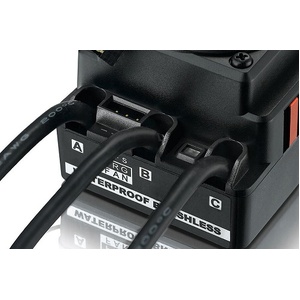

• Durable 10AWG input wires and 12AWG motor leads

• Wide voltage range: 3–6S LiPo, up to KV ≤ 2400 on 6S

---

Specifications

Item	Details
Scale	1/8th
Motor Compatibility	Sensorless Brushless (SL/SD in SL mode only)
BEC Output	6V / 3A (Switch-mode)
Input Voltage	3–6S LiPo / 9–18 cell NiMH
Current Rating	150A (Cont.) / 950A (Peak)
Fan Size	35x35x10mm (Powered by BEC)
Programming	SET Button / LED Program Box (No LCD/WiFi)
ESC Dimensions	59.5 x 48.0 x 42.0mm
Weight	178g
Motor Limits	4S LiPo: KV ≤ 3000 / 6S LiPo: KV ≤ 2400 (40XX)

---

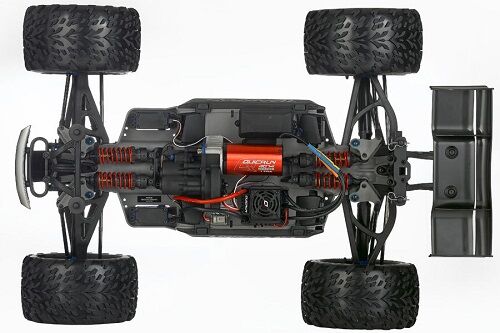

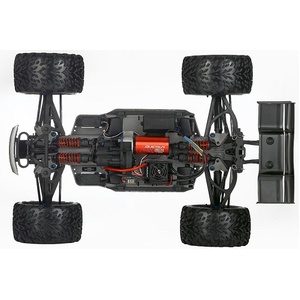

Perfect For

• 1/8 Short Course Trucks

• Monster Trucks

• Buggies & Truggies

• All-terrain bashers and sport racers

---

If you’re looking for a dependable ESC that’s easy to use, well-built, and battle-tested for rough terrain—the QuicRun WP-8BL150 is a solid go-to for your next 1/8 scale build.
