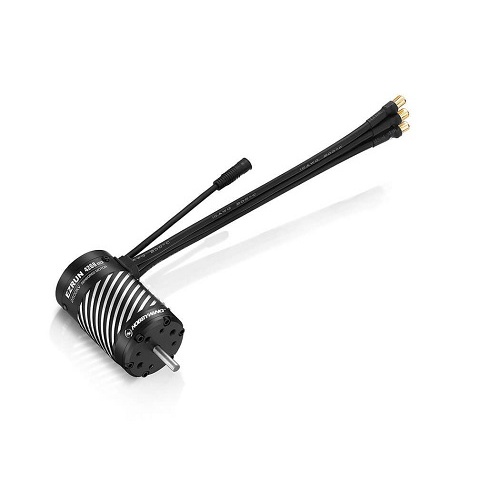

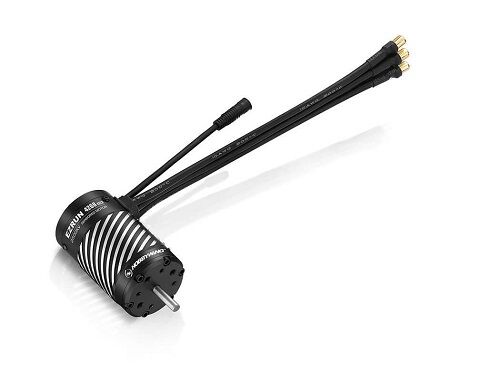

EZRUN 4268SD 2500KV G2R Brushless Motor
High-performance brushless motor for 1/8 RC cars
SKU: TM0087
EZRUN 4268SD 2500KV G2R Brushless Motor
The Ezrun 4268 SD G2R is the perfect motor for the MAX8 G2S ESC. It sets a new benchmark for 1/8 scale brushless systems, delivering smooth sensored control, unmatched efficiency, and the durability needed to take on any track or terrain. Perfect for high-powered RC applications, this system is engineered for speed, reliability, and ultimate performance.
Key Features
Sensored Design for Linear, Smooth Power
Enjoy precise throttle response and smooth, linear power delivery. When paired with the matching MAX8 G2S ESC, the system provides unmatched acceleration and control, ensuring maximum confidence on the track or in the field.
ESC & Motor Perfectly Paired
The EzRun MAX8 G2S ESC automatically identifies the paired motor, unlocking optimal performance and enabling built-in overheating protection to safeguard your system during extreme runs.
Higher RPM & Explosive Performance
-
Supports speeds up to 60,000 RPM
-
9% increase in maximum speed compared to the G2 motor
-
Reinforced explosion-proof rotor design for added safety and reliability
Ready for All Conditions – IP67 Waterproof & Dustproof
Built with Hobbywing’s patented waterproof design, the motor achieves an IP67 rating, ensuring top-tier dustproofing and waterproofing. Combined with a new induction line interface, it’s ready to perform in mud, rain, sand, and extreme environments without compromise.
Premium Build for Maximum Durability
Constructed with CNC-machined aluminum alloy housing, first-line brand bearings, ultra-thin silicon steel laminations, and oxygen-free high-temperature copper wiring, this system guarantees superior strength, efficiency, and long-lasting reliability.
Why Choose the EzRun MAX8 G2S Combo?
-
Linear, precise throttle response with sensored technology
-
Optimized ESC–motor pairing for unmatched performance
-
Higher RPM and improved safety with explosion-proof rotor
-
IP67 waterproof & dustproof durability for all-weather use
-
Premium materials ensure long-term reliability under extreme conditions
Technical Highlights
-
Max Speed: 60,000 RPM
-
Protection Rating: IP67 Waterproof & Dustproof
-
Build Materials: CNC Aluminum, high-temp copper wiring, alloy output shaft, premium bearings
-
Compatibility: Designed for 1/8 scale RC cars, trucks, and buggies
3 Month Warranty
Specifications
Scale: 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 2500KV
LiPo Cells: 3-4S
No-load Current (A): 5.0A
Size & Weight
O.D.(mm): 42
Length (mm): 68
Shaft Diameter (mm): 5.0
Weight: 360g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5
Other Parameters
ESC & Vehicles: EZRUN MAX8 G2S, 1/8th Buggy, 1/10th Heaby-duty Monster Truck
SKU | TM0087 |
Barcode # | 9351634090181 |
Brand | Hobbywing |
Shipping Weight | 0.0400kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000200000m3 |
Unit Of Measure | ea |
Assembled Length | 0.068m |
Assembled Height | 0.045m |
Assembled Width | 0.042m |
