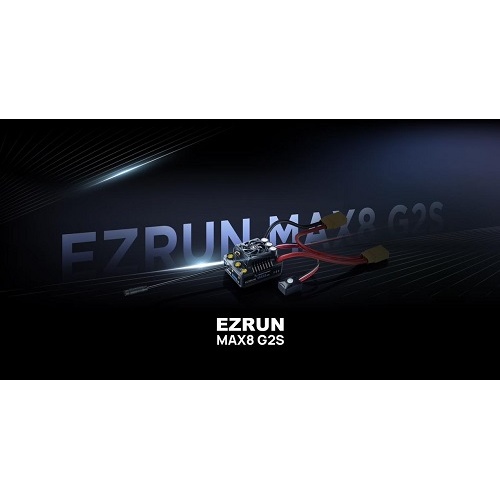

EZRUN MAX8 G2S Speed Control

Brushless ESC Upgrade for RCs

The EzRun Max10 G2 ESC is engineered with an advanced waterproofing process and innovative sealed design, delivering superior IP67-rated protection against water, dust, mud, ice, and snow. Whether you're bashing through wet trails, racing in rain, or crawling across harsh terrain, this ESC is built to perform in all environments without compromise.

At its core is a high-output switch-mode BEC, delivering a continuous 6A, with peak bursts up to 15A. With selectable output voltages of 6.0V, 7.4V, and 8.4V, it supports the latest generation of high-voltage, high-torque servos—perfect for demanding steering systems and high-draw applications.

Replacing fragile mechanical switches, the Max10 G2 features a robust electronic switch system. It’s designed to withstand impacts (like hard landings or chassis flex), resist corrosion from moisture or dust, and eliminate common failure points associated with traditional switches—ensuring reliable power-on control in any condition.

For racers and power-hungry setups, the ESC supports 32° Turbo Timing. When paired with compatible motors like the EzRun 4278SD, users can see up to a 25% increase in max RPM, giving you the edge to leave your competition behind on the straightaways.

The ESC is packed with intelligent protection systems including:

• Low-voltage cutoff

• Overheat protection (ESC & motor)

• Signal loss protection

• Current overload protection

Tuning and customization are made easy with support for:

• LED Program Card

• LCD G2 Program Box

• OTA Bluetooth Programmer (sold separately)

With real-time telemetry and data logging via the HW LINK app, you can monitor ESC performance live and analyze run data after the session. Plus, firmware updates via OTA or LCD G2 ensure your ESC stays up to date with the latest features and optimizations.

Specifications

Scale: 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 160A/1050A
Input Voltage: 3-6S Lipo
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)

Wires & Connectors
Input Wires: Black-10AWG-150mm*1 Red-10AWG-150mmX1
Output Wires: No
Input Connectors: XT90
Output Connectors: 6.5 Bullet Connectors (Female)

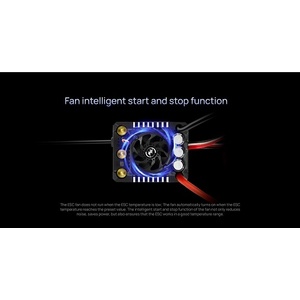

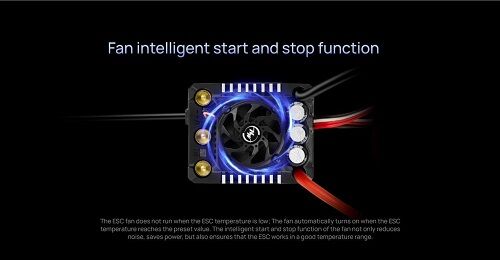

Fan
Size: 30x30x10mm
Output Wires: 6V/7.4V/8.4V
Input Connectors: Powered by BEC

Esc Programming Via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Not Supported​​​​​​​
OTA Programmer: Not Supported​​​​​​​

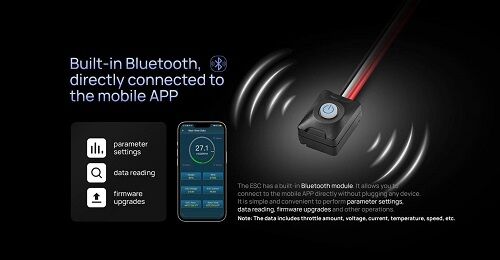

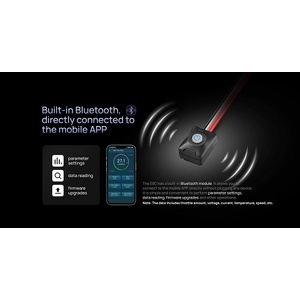

Programming Port: Built-in Bluetooth​​​​​​​

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 60*48*40.5mm40.5mm
Weight: 192g(w/Wires)

Applications
Motors: Sensored brushless motors / Sensorless brushless motors
KV Rating / T Count: With 4S Lipo: KV≤3000, With 6S Lipo: KV≤2400 4278 size motor
