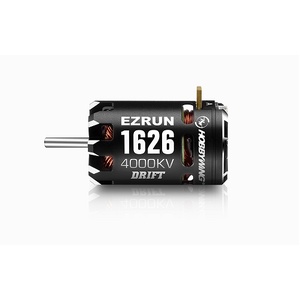

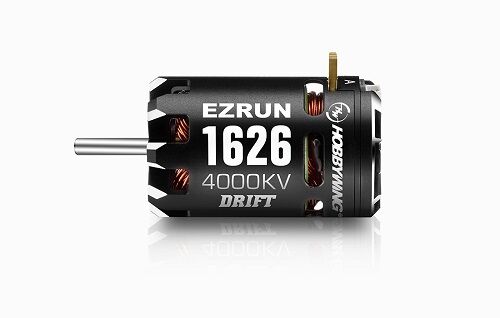

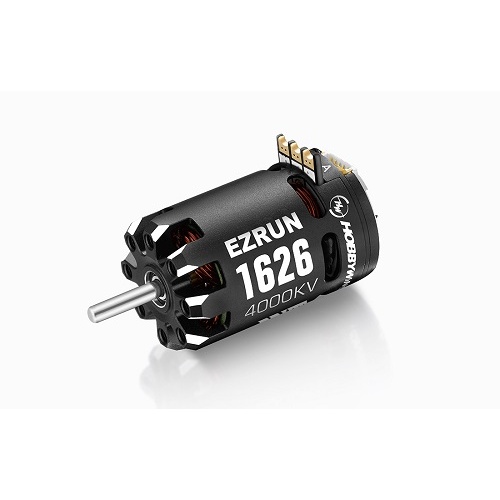

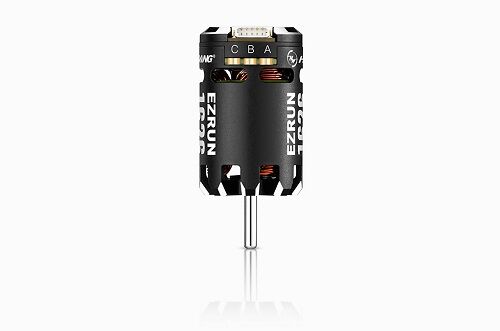

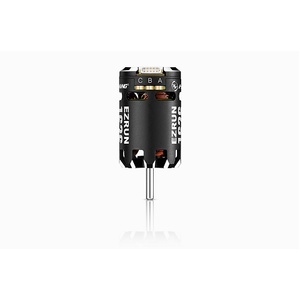

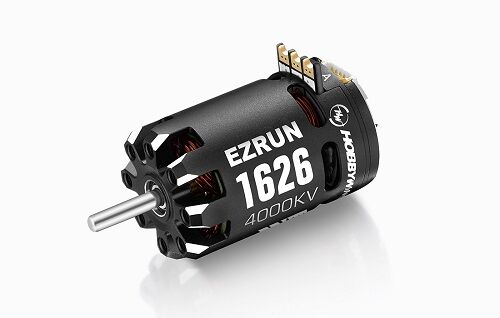

EZRUN 1626SD Drift 4000KV Brushless Motor
High-performance brushless motor for 1/28 RC cars
SKU: TM0089
EZRUN 1626SD Drift 4000KV Brushless Motor
The Hobbywing EzRun 1626 is the first brushless motor from Hobbywing designed specifically for high-power 1/28 scale RC builds. Engineered for speed, precision, and durability, this motor delivers an outstanding driving experience with smooth throttle response, high efficiency, and incredible power in a compact design.
Key Features
Built for Speed & Power
-
Significantly improved top speed and acceleration
-
Advanced design delivers more power than comparable motors
-
Optimized for high-performance 1/28th scale racing
Precision & Control
-
Zero cogging for silky-smooth low-speed response
-
Consistent torque and precise throttle feel for superior driveability
-
High-precision sensors ensure the ESC provides the best control and handling
Enhanced Performance with EzRun Mini28 ESC
Pairing the EzRun 1626 with the EzRun Mini28 ESC unlocks timing advance technology, drastically increasing top speed and allowing on-demand adjustments for maximum racing performance.
Built to Last
-
High-quality bearings for long life and smooth operation
-
CNC-machined aluminum casing for strength and heat dissipation
-
Explosion-proof rotor & high-strength output shaft for reliability
-
200°C-resistant copper windings and 0.2mm ultra-thin silicon steel laminations for top efficiency
-
Modular, detachable structure for easy cleaning and maintenance
Easy Soldering & Installation
Featuring a high-density 4-layer PCB, the EzRun 1626 ensures solid, easy-to-solder connections, making setup simple and reliable.
Why Choose the EzRun 1626?
-
Specifically engineered for 1/28 scale high-power RC builds
-
More power and efficiency compared to motors of similar size
-
Zero cogging & smooth low-speed control for ultimate precision
-
Durable, race-ready construction with premium materials
-
Easy maintenance for long-lasting performance
3 Month Warranty
Specifications
Scale: 1/28th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters
KV Rating: 4000KV
LiPo Cells: 2S
No-load Current (A): 0.4A
Size & Weight
O.D.(mm): 16
Length (mm): 26
Shaft Diameter (mm): 2
Weight: 18g
Bearing: D5*D2*T2.5
Other Parameters
Vehicles: 1/28th Mini Drift
SKU | TM0089 |
Barcode # | 9351634090204 |
Brand | Hobbywing |
Shipping Weight | 0.0020kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000200000m3 |
Unit Of Measure | ea |
Assembled Length | 0.030m |
Assembled Height | 0.020m |
Assembled Width | 0.020m |
