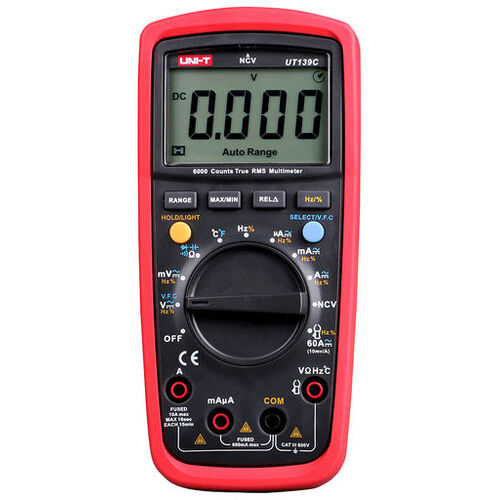

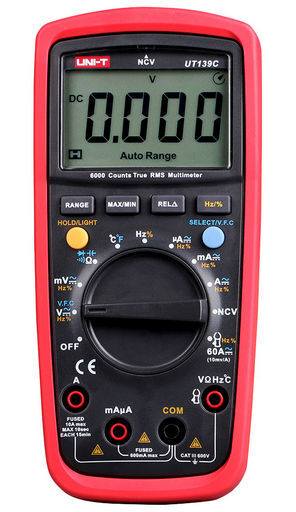

CAT III 600V True RMS Digital Multimeter

True RMS Autoranging Digital Multimeter w/ Large LCD

SKU: TT4550

RRP $199.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $98.95 ea
Buy 11 to 20: Pay $89.05 ea
Buy 21 to 100: Pay $80.16 ea

Calculate Shipping

CAT III 600V True RMS Digital Multimeter

True RMS Autoranging Digital Multimeter w/ Large LCD

CAT III 600V digital multimeters designed for electricians and technicians. It supports AC/DC voltage, current, resistance, capacitance, frequency and temperature measurements. Its NCV feature can effectively check electrical status through measuring EM field intensity.
Totally over-load protection and unique structural design make it new type of multimeter with high performance/ price ratio and a best choice for electricians used in electrical maintenance and repairing.

  • Auto range meter True RMS measurement
  • Manual range over-ride, min/max/relative.
  • Varied frequency VFC voltage measurement
  • Measure large capacitance up to 100mF
  • AC/DC current, voltage, frequency (10MHz), temperature, resistance, diode, continuity.
  • NCV Non Contact Voltage range
  • Requires 2x 1.5V AA batteries
  • Features soft rubber protective holster
  • 2 protection fuses, overload protected
  • Requires 2x AA batteries
  • Safety Rating: CAT III 600V
  • 58x36mm LCD backlit 6000 count
  • 175x81x49mm, test leads, Temp probe

  • DC Voltage (V) 60mV/600mV/6V/60V/600V ±(0.5%+2)
    AC Voltage (V) 60mV/600mV/6V/60V/600V ±(0.8%+3)
    DC Current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(0.7%+2)
    AC Current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(1%+3)
    Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ± (0.8%+2)
    Capacitance (F) 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF ± (4.0%+5)
    Frequency (Hz) 10Hz-10MHz ± (0.1%+4)
    Temperature (°C) -40°C~1000°C ± (1.0%+3)
    Temperature (°F) -40°F~1832°F ± (1.5%+5)
    Display Count 6000
    Auto Range YES
    Manual Range YES
    True RMS YES
    Bandwidth(Hz) 45Hz-1kHz
    V.F.C YES
    Duty Cycle 0.1%-99.9%
    Diode Around 3V
    NCV YES
    Auto Power Off Around 15 Minutes
    Continuity Buzzer YES
    Low Battery Indication ≤2.5V
    Data Hold YES
    Relative Mode YES
    LCD Backlight YES
    Input Protection 600Vrms
    Input Impedance for DCV 1GΩ Max
    Power Requires 2x 1.5V AA batteries
    LCD size 58x36mm
    Product Size 175x81x48.5 mm
    Standard Accessories Battery, Test Leads, Temperature Probe



3 Month Warranty

SKU TT4550
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
Assembled Length 0.700m
Assembled Height 0.240m
Assembled Width 0.126m
