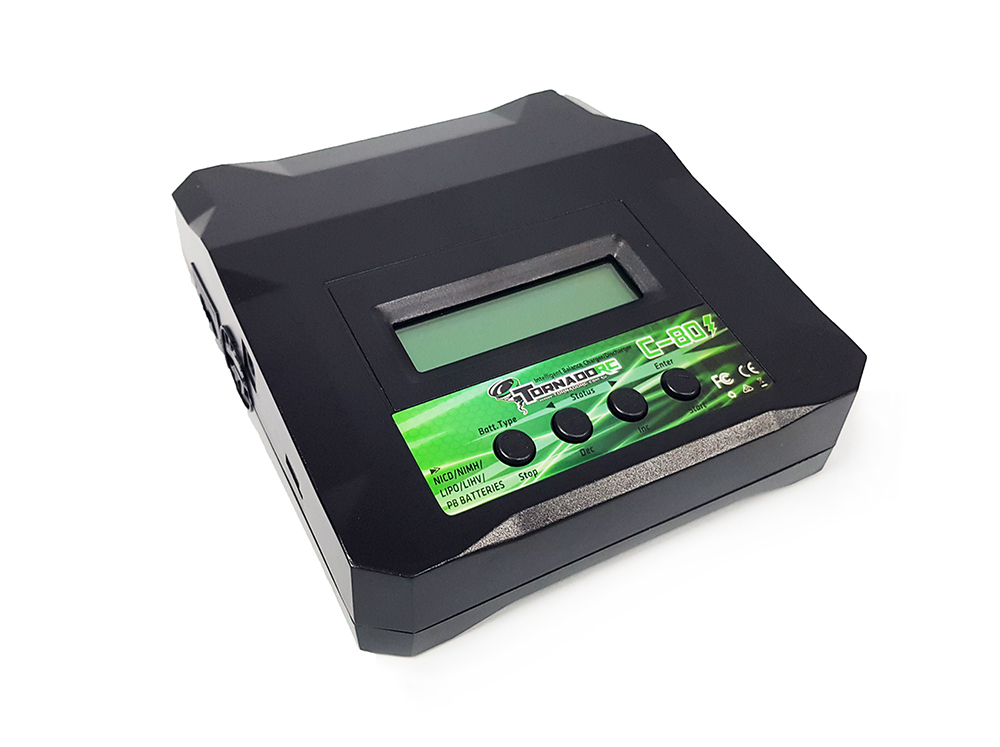

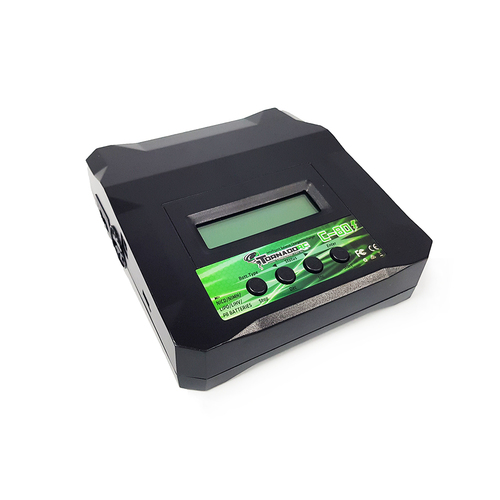

C-80 80W Multi-Chemistry Intelligent Battery Charger

A Powerful 80W Balance Battery Charger and Discharger

The Tornado RC C-80 is a simple yet powerful dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

• Capacity Limit

• Maximum safety

• Temperature monitoring

• Input power monitoring

• Easy to program buttons

• 5 battery memory

• Individual cell monitoring

• 2-Line Back lit LCD display

• Built in Balancer to 6S packs

• Cycle charging/discharging

• Includes "FAST" & "STORAGE" Li-xx programs

Product Details

• Output 80W

• Discharge 5W

• Balancing current 300mAh/cell

• Operating input voltage : 10 - 18V DC or 100-240V AC

• Ni-Cad / Ni-MH : 1 - 15 Cells

• Li-Ion / Li-Po / Li-Fe : 1 - 6 Series

• Charge current : 0.1 - 7.0A

• Discharging current: 0.1 - 1.0A

• PB / Lead Acid : 2 - 20V

• Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH connectors)

• No. of Cycles : Up to 5 Cycles

• Weight : 400g

• Dimensions : 136mm x 127mm x 56mm

Includes (see above photo)

1 x Charger
1 x Alligator Clips to DC Cable
1 x Alligator Clips to Dean style connector
1 x Mini JST (red) connector to Dean style connector cable
1 x Female servo connector to Dean style connector cable
1 x Glow plug connector to Dean style connector cable
1 x 4mm banana connectors to Dean style connector cable
1 x Mains lead with AU plug
1 x Manual
