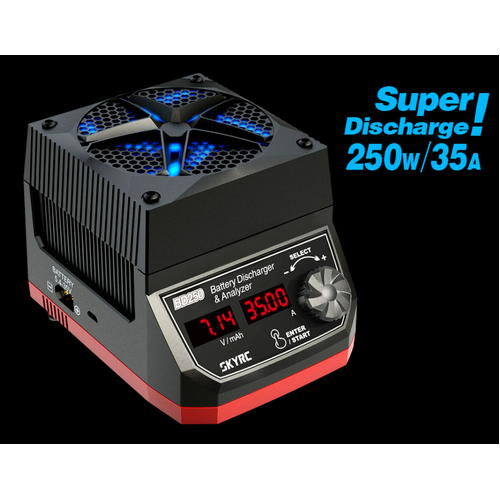

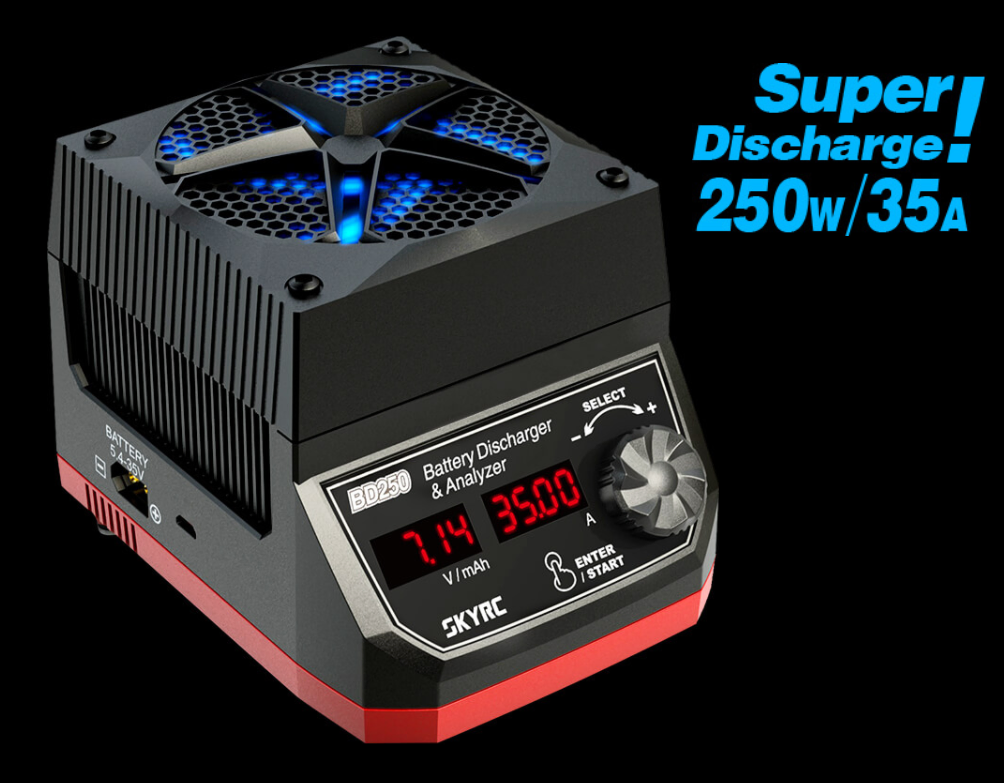

BD250 Battery discharger and analyzer
Powerful Battery Discharger & Analyser
SKU: PS1203
BD250 Battery discharger and analyzer
Powerful Battery Discharger & Analyser
An evolution of the BD200, the SkyRC BD250 isn’t just a high-power discharger—it’s a precision tool for accurately measuring battery capacity. Say goodbye to guesswork when selecting top-performing batteries for your application.
With up to 250 Watts and 35 Amps of discharge power, the BD250 handles virtually any battery type, size, or chemistry with ease. Despite its compact, sleek design, it packs serious performance, featuring a high-efficiency cooling system and premium IXYS MOSFETs for reliable, continuous 250W discharging.
Whether you're tuning for performance or testing for consistency, the BD250 delivers the data and power you need.
The BD250 features a unibody design with a powerful, oversized fan that drives airflow downward through a rugged extruded aluminum heat sink. This vertical airflow design efficiently pulls heat away, ensuring stable thermal performance.
Thanks to this advanced cooling system, the BD250 can maintain a continuous 250W discharge—delivering power and precision without breaking a sweat.
Feature:
-
It displays real-time battery voltage, discharged capacity and discharge current.
-
It can test battery capacity that helps select batteries with the desired capacity.
-
It saves time when users wish to store their large capacity batteries.
-
It helps activate the best performance of your batteries for competition.
-
Breakthrough Cooling System
-
Simple and Intuitive Operation
-
Test virtually any type, size and chemistry battery.
-
Easy-to-Use PC Software for Data Analysis
Specification:
-
Dimension: 136.6x104.8x107mm
-
Weight: 879g
-
Accepted Voltage Range: 5.40-35.00V
-
Low Voltage Alert: <5.2V
-
High Voltage Alert: >35V Max.
-
Discharge Power: 250W
-
Discharge Current Range: 0.01A-35.00A
-
Discharge Power: 250W
-
Current Consumption in Sleep Mode: <100uA
-
Capacity Display Accuracy: ±3%
Include:
-
SKYRC BD250 Battery Discharger Analyzer (1 pc)
-
Discharging cable with XT60 connector (1 pc)
-
Fuse (1 pc)
-
Instruction Manual
CLICK HERE TO SEE SUITABLE CHARGING LEADS
CLICK HERE TO SEE OTHER BATTERY CHARGERS
3 Month Warranty
SKU | PS1203 |
Barcode # | 9351634087839 |
Brand | SkyRC |
Shipping Weight | 0.9000kg |
Shipping Width | 0.105m |
Shipping Height | 0.107m |
Shipping Length | 0.137m |
Shipping Cubic | 0.001539195m3 |
Unit Of Measure | ea |
